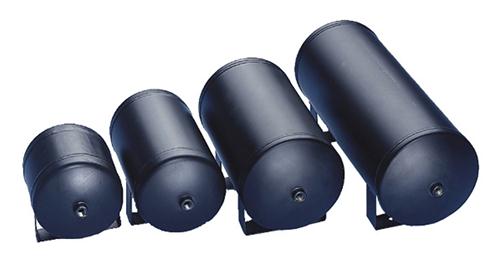

Firestone 9524 Air Tank 2 Gallon Steel with 2x 1/4" NPT and 1x 1/8" NPT Ports

The Firestone 9524 is a 2-gallon steel air tank designed to serve as a dedicated compressed air reservoir for air helper spring and air suspension systems. By storing pressurized air onboard, this tank allows for faster inflation of air springs when load conditions change, reducing the workload on your compressor and improving response time.

Built to SAE J10 compliance standards, the tank is pressure-tested to twice its working pressure and rated for up to 150 PSI maximum operating pressure. The steel construction features an internal and external baked black enamel coating that resists corrosion for long-term durability in demanding environments.

Key Features:

• 2-gallon compressed air storage capacity
• Two (2) x 1/4" NPT ports for air line connections
• One (1) x 1/8" NPT port for gauge or additional accessory connections
• Rated for up to 150 PSI maximum pressure
• Manufactured to SAE J10 specifications
• Pressure-tested to twice the working pressure
• Steel tank with baked black enamel coating — internal and external corrosion protection
• Compatible with Firestone Air Command compressor systems and other on-board air setups

Specifications:

• Capacity: 2 gallons
• Dimensions: 14.5" length x 7" diameter
• Ports: (2) 1/4" NPT, (1) 1/8" NPT
• Maximum Pressure: 150 PSI
• Compliance: SAE J10

The Firestone 9524 air tank is a compact and reliable solution for anyone building or upgrading an onboard air system for air suspension, air springs, or auxiliary air supply applications.
