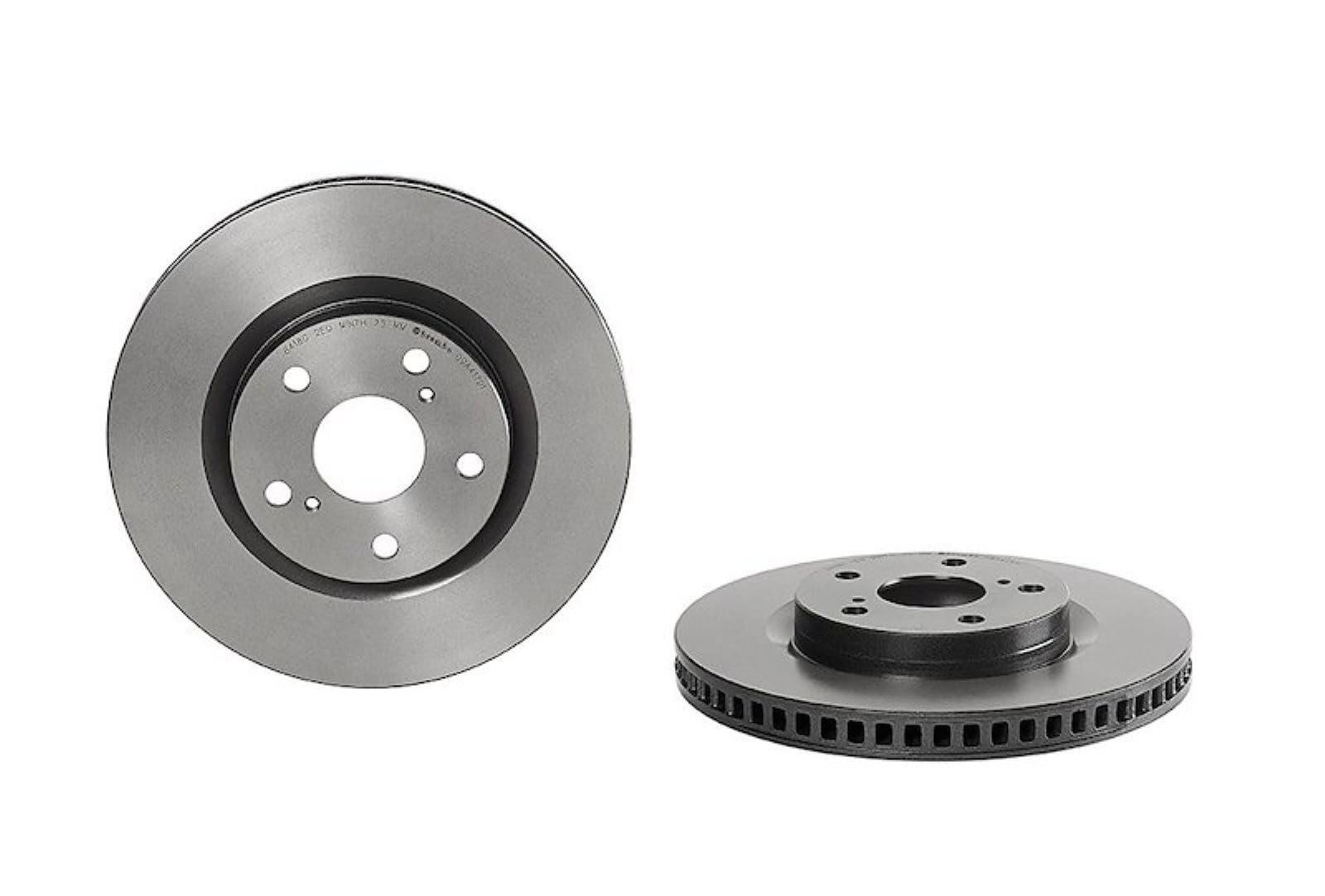

Brembo 09.A417.21 UV Coated Vented Front Brake Disc Rotor 296mm

(2009-2018 Toyota RAV4; 2009-2010 Toyota Matrix XRS; 2009-2013 Toyota Matrix S; 2018 Toyota Corolla iM)

Manufacturer

Part Number

09.A417.21
Black Friday Price

$116.49

In Stock (5)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Brembo 09.A417.21 is a vented front brake disc rotor featuring a full UV-coated finish and smooth braking surface, engineered to deliver consistent stopping performance and long-term durability. Developed to meet or exceed original equipment specifications, this is a direct-fit replacement rotor for a wide range of Toyota, Lexus, and related platform vehicles.

Brembo's UV coating is applied using a solvent-free, water-based process that protects the entire disc surface — including the braking faces, outer edges, and hub — against corrosion from the first day of installation. The result is a rotor that looks clean out of the box and holds up against the elements throughout its service life.

Key Features:

  • Internally vented design — promotes airflow and heat dissipation during repeated braking
  • Patented Pillar Vented Technology (PVT) — unique pillar shape and positioning increases resistance to thermal cracking by more than 40%
  • High-carbon cast iron construction — reduces noise and vibration for a smoother, more comfortable driving experience
  • Full UV coating — solvent-free, environmentally friendly finish protects braking surfaces and disc hub from corrosion
  • OEM-grade tolerances — precision-machined to Brembo's strict shape and thickness standards for optimal brake pad contact
  • Intelligent part marking — part number and minimum thickness specification stamped directly on the rotor for easy identification
  • Includes fixing screw kit — all necessary hardware included for straightforward installation

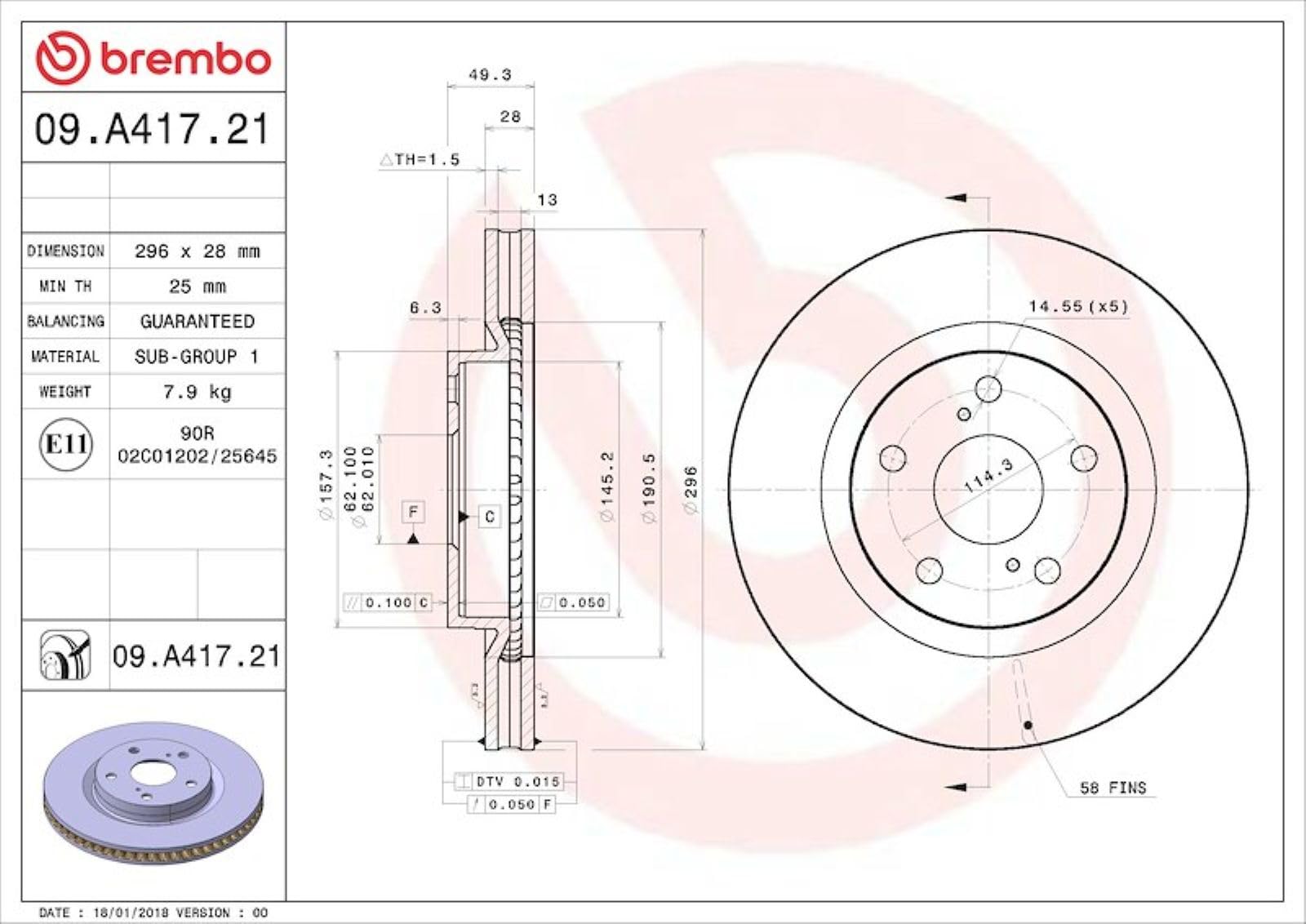

Specifications:

  • Disc Type: Internally Vented
  • Surface: Smooth / UV Coated
  • Diameter: 296 mm (11.65 in)
  • Disc Thickness: 28 mm (1.10 in)
  • Minimum Thickness: 25 mm
  • Height: 49.3 mm (1.94 in)
  • Centering Diameter: 62 mm
  • Number of Bolt Holes: 5

For best braking performance and even wear, replace rotors and brake pads together. Compatible with Brembo's NAO/Ceramic and Low-Met brake pad formulations. Sold as a single rotor.

Products specifications

Fits

2009-2018 Toyota RAV4; 2009-2010 Toyota Matrix XRS; 2009-2013 Toyota Matrix S; 2018 Toyota Corolla iM
