FASS INDPUIM100G Industrial Series Plus Class Diesel Fuel System UIM - 8 100GPH

Manufacturer

Part Number

INDPUIM100G
Black Friday Price

$779.00

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

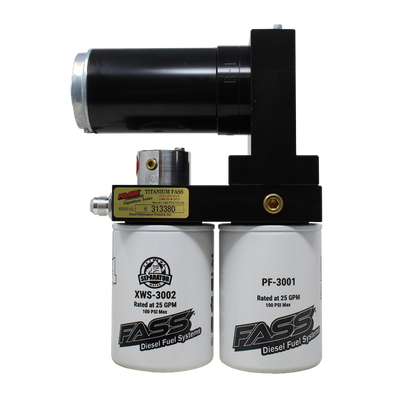

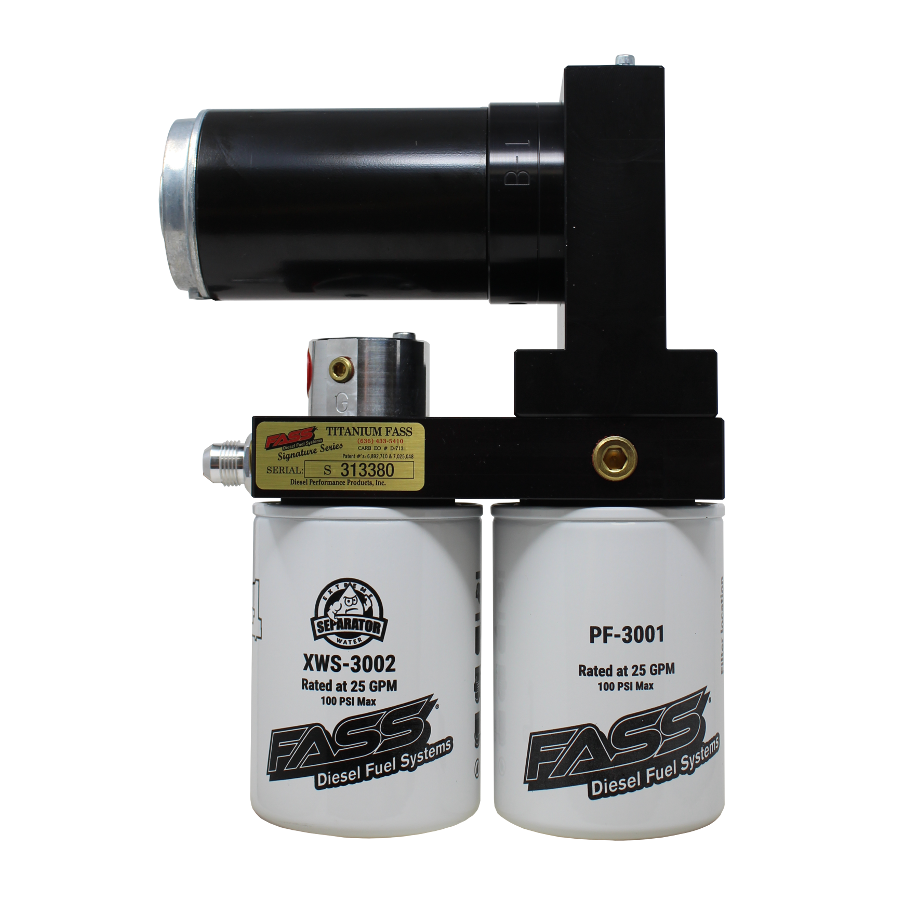

The FASS INDPUIM100G Industrial Series Plus Diesel Fuel System is a high-performance fuel air separation and filtration system purpose-built for Class 8 semi-trucks equipped with Mechanical Unit Injection (UIM) engines. Rated at 100 gallons per hour (GPH) and preset to approximately 16–18 PSI, this system delivers consistently clean, air-free fuel to protect your injection components and maximize engine performance. Proudly manufactured in the U.S.A., it is backed by FASS's industry-leading 1 million mile / 5-year limited warranty.

The UIM-specific design includes a built-in oil pressure switch that allows the FASS pump to operate only when the engine is cranking or running, preventing fuel from being inadvertently pumped through injectors into cylinders while the engine is off — a critical safeguard for mechanical unit injection systems.

Key Features:

  • 100 GPH Flow Rate — Supports diesel applications up to 600 HP
  • 2-Micron Absolute Filtration — Removes dirt, rust, and particulates down to 2 microns
  • FASS Extreme Water Separator — Eliminates over 99% of water from diesel fuel; maintains high efficiency even as flow rates increase
  • Patented Air/Vapor Removal — Separates entrained air and vapor before fuel reaches the injection system
  • Continuous Fuel Polishing (CFP) — Continuously recirculates fuel through the water separator to deliver the cleanest possible fuel to your injectors
  • FASS Silencing Technology (FST) — Military-spec coating over billet aluminum housing, precision gear tolerances, and radius cuts combine for ultra-quiet operation
  • Performance Radius Cuts (PRC) — Smooth-flowing machined cuts in the aluminum housing prevent air reintroduction and stagnant fuel pockets
  • No Dedicated Return Line Kit Required — Air separation port ties into the OEM engine fuel return, reducing installation time by 50% or more
  • UIM Oil Pressure Switch Included — Prevents pump operation when the engine is not running, protecting mechanical unit injection engines
  • Made in the U.S.A. — Motor failure rate under 2%

Replacement filters for this system include the XWS3002 Extreme Water Separator and PF3001 Particulate Filter (available as the FP3000 or FP3000XL filter pack). The INDPUIM100G is an excellent upgrade for Class 8 fleet operators seeking to reduce injector wear, lower maintenance costs, improve fuel economy, and extend DPF and EGR service life.
