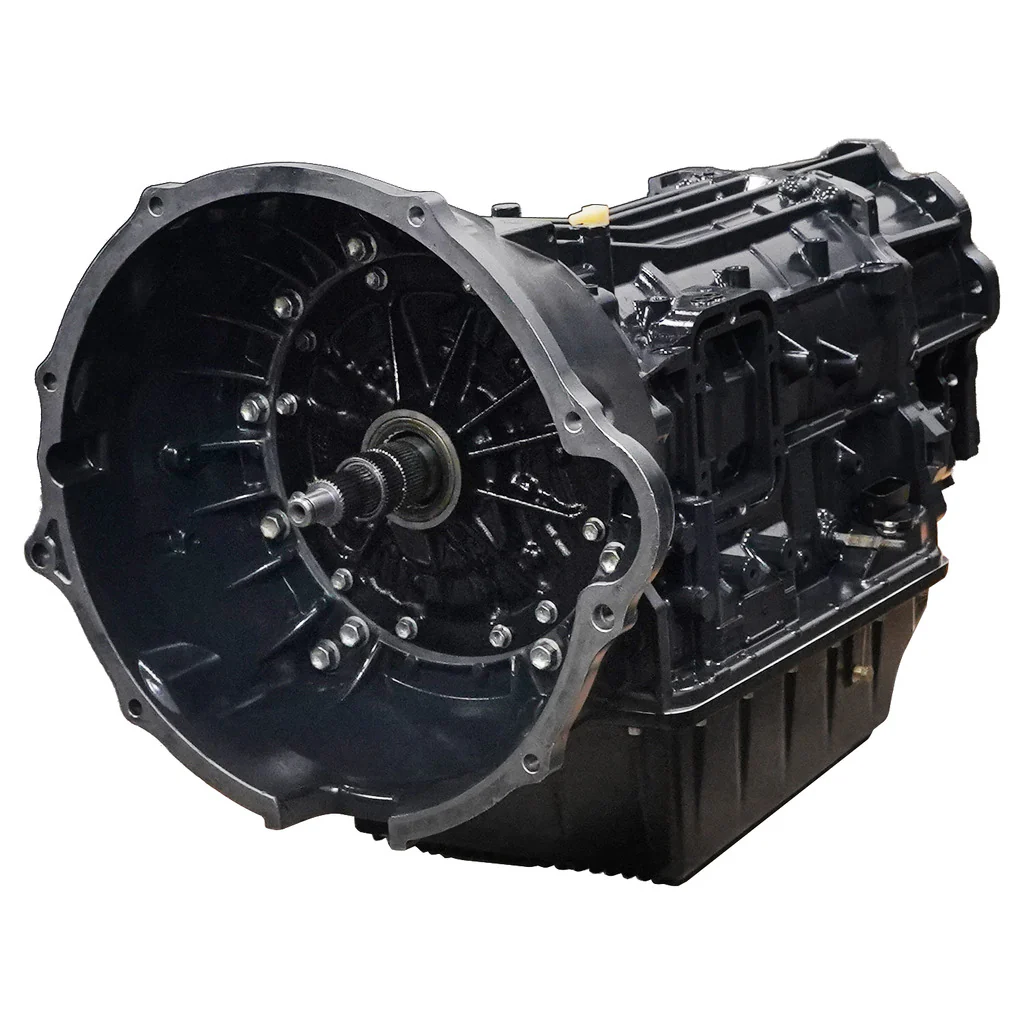

The BD Diesel 1064392SM TorqueMaster Transmission & Converter Package is a purpose-built, high-performance remanufactured AISIN AS69RC transmission engineered for 2013–2018 Ram 3500–5500 trucks equipped with the 6.7L Cummins diesel engine. This is a special-order 2WD Left-Hand PTO configuration, designed specifically for trucks with a factory left-hand power take-off (PTO) provision.
BD's TorqueMaster package represents the top tier of their AS69RC Aisin lineup, addressing the known failure points of the factory transmission with extensive billet and upgraded internal components. Friction counts in the K2, K3, and B1 clutch packs are increased to dramatically improve torque capacity and durability under demanding towing, hauling, and high-horsepower applications.
Key Features:
- Billet Nitride-Coated K2 Hub & Apply Piston — Resolves the notorious clutch tooth wear issue inherent to factory AS69RC transmissions by resisting excessive spline wear
- Billet K3 Hub, Piston & Drum — Delivers 40% more clutches than stock; billet K3 drum resists ring groove failure far better than the OEM casting
- Increased Friction Counts — Upgraded K2, K3, and B1 clutch packs raise transmission torque capacity for modified and high-output diesel applications
- OEM Shift Quality Maintained — Custom-selected friction materials preserve smooth, factory-calibrated shift feel despite added capacity
- Nitrile Pan & PTO Gaskets — Replaces leak-prone factory cork gaskets with improved nitrile seals for long-term reliability
- BD Deep Pan Included — Increases fluid capacity for improved thermal management during sustained towing and heavy-duty use
- BD ProForce 10D Billet Torque Converter Included — Matched and tested converter supplied as part of the complete package
Important Configuration Note: Part number 1064392SM is the 2WD Left-Hand PTO variant and is a special-order item. This configuration is intended for trucks equipped with a factory left-hand PTO provision. Trucks with a right-hand PTO should reference part number 1064362SM instead.
The BD Diesel TorqueMaster AS69RC is the definitive performance transmission solution for Ram medium-duty diesel trucks operating in high-torque and high-demand environments, including modified engines, commercial towing, and vocational service applications.
