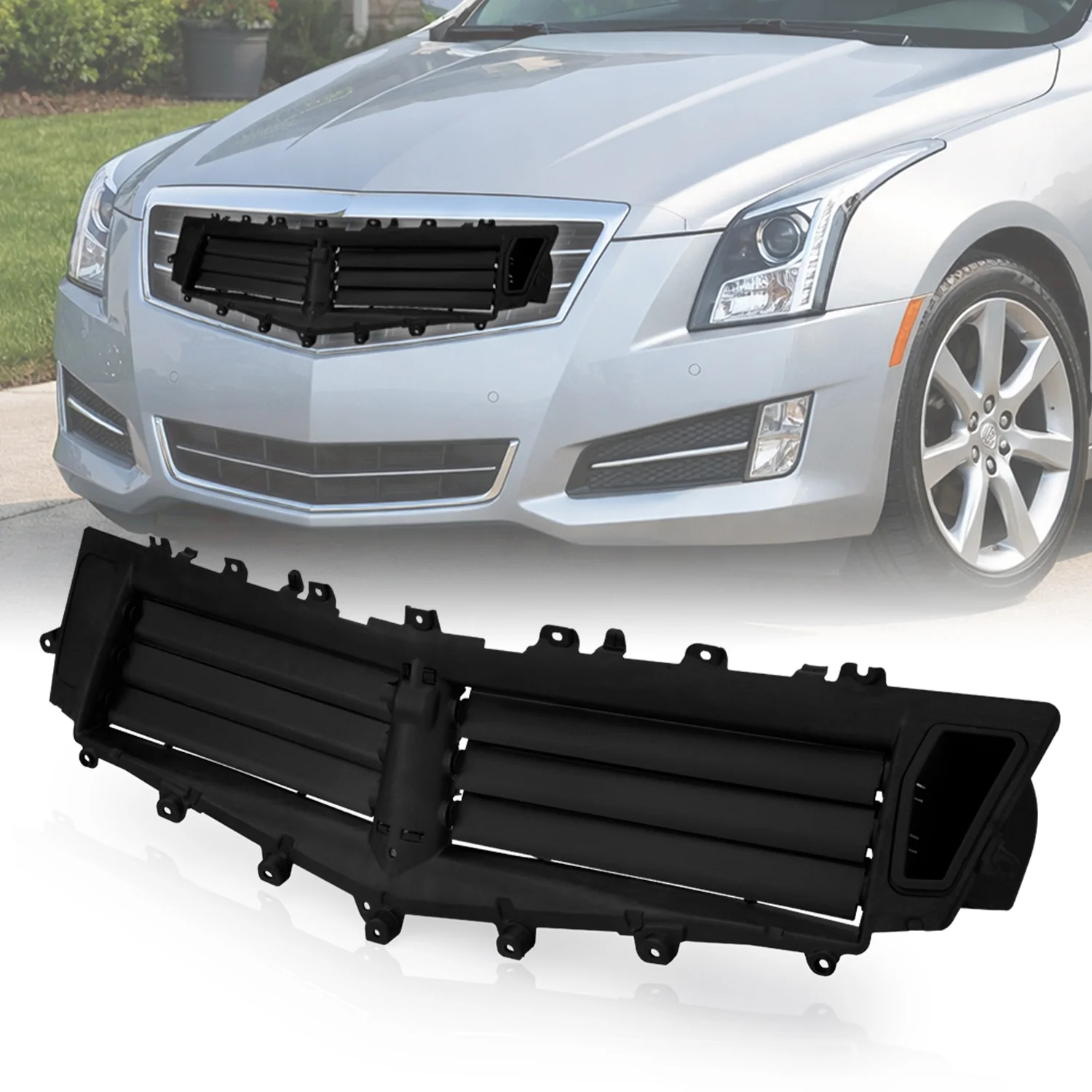

Spyder 9962783 Front Active Grille Shutter Assembly with Motor - OE 23490309

The Spyder 9962783 is an aftermarket replacement front active radiator grille shutter assembly with integrated motor, designed to restore the active aerodynamic shutter system on the 2013–2014 Cadillac ATS. This assembly replaces OE part number 23490309 and is engineered to match the fit and function of the original equipment.

The active grille shutter system plays a critical role in vehicle efficiency and thermal management. The motorized louvers open and close automatically based on real-time inputs from the Engine Control Module (ECM), including vehicle speed, coolant temperature, A/C compressor state, refrigerant pressure, and ambient temperature. At highway speeds or under low cooling demand, the shutters close to reduce aerodynamic drag and improve fuel economy. When higher airflow is needed — such as during hard acceleration or high engine load — the louvers open to maximize front-end cooling.

Key Features:

• Complete shutter assembly with integrated actuator motor included
• Engineered to match OEM fit, form, and function
• Replaces OE part number 23490309
• Motor communicates with the ECM via LIN Bus serial data circuit
• Restores proper aerodynamic function and helps resolve fault codes such as P059F and U0284
• Helps prevent check engine light caused by missing or failed shutter assembly
• Aftermarket replacement — not a GM/Cadillac OEM part

A failed or missing active grille shutter assembly can trigger diagnostic trouble codes and illuminate the check engine light. Replacing this assembly with the Spyder 9962783 restores the system to proper operation, supporting optimal fuel economy and engine cooling performance.
