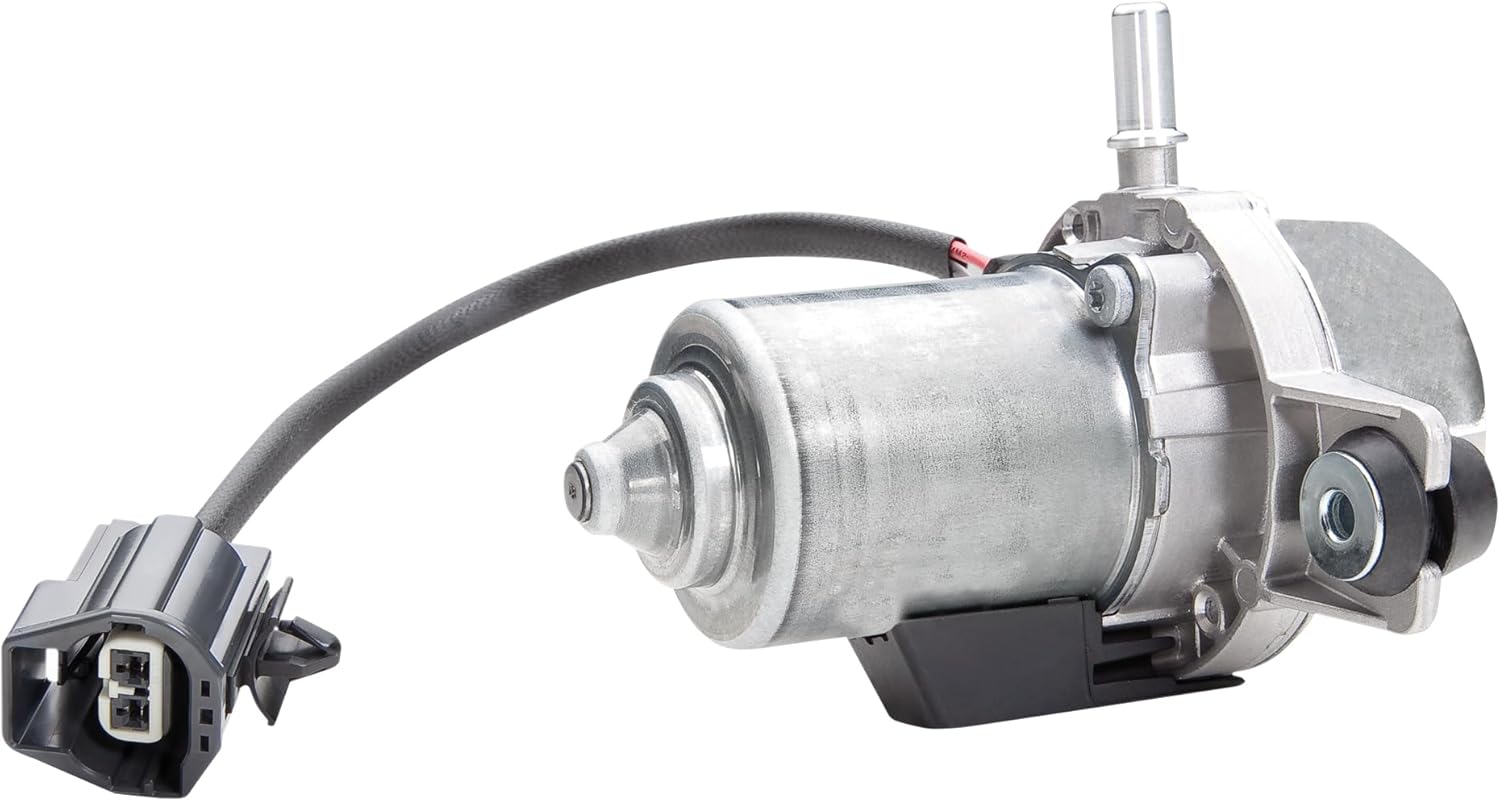

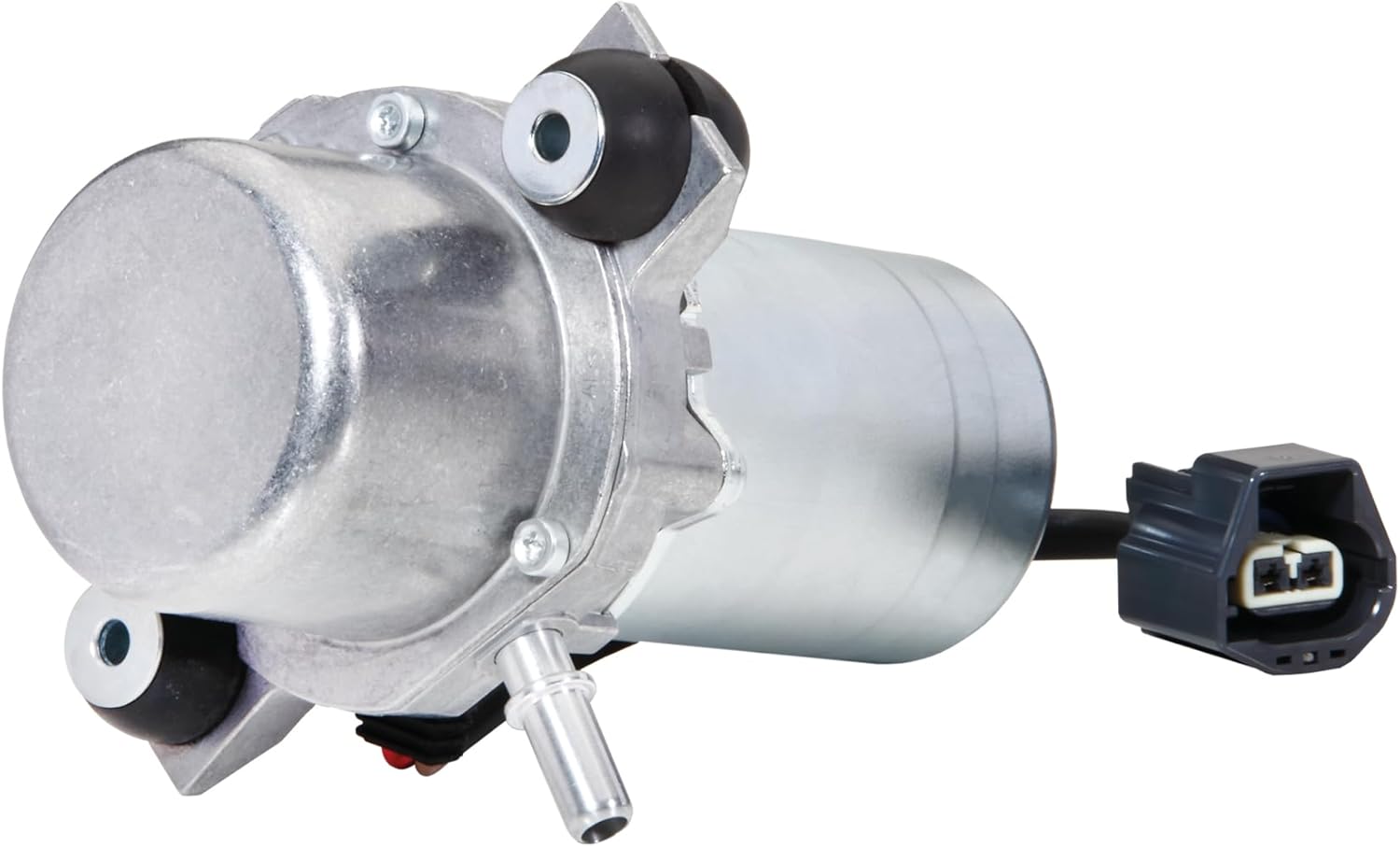

Hella 009428087 Electric Brake Booster Vacuum Pump - UP28 12V

(2003-2011 Volvo XC90; 1999-2006 Volvo S80; 2001-2009 Volvo S60; 2003-2007 Volvo XC70; 2001-2007 Volvo V70; 2006-2013 Volvo C70 + 4 more models)

Part of: Hella Electric Brake Booster Vacuum Pump

Other options in this family: Hella 934880701 Hella 008570021 Hella 009570321 Hella 958-355-215-01 Hella 010261751

Manufacturer

Picture for manufacturer Hella

Part Number

009428087
7 reviews
Sale Price

$156.09

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Hella UP28 Vacuum Pump is designed to support or solely generate vacuum for pneumatic brake boosting systems, making it applicable to all engine concepts including electric motors and hybrid drives. This electric vacuum pump is activated on demand to support the evacuation of the brake booster, ensuring consistent brake performance in all driving conditions.

Key Features:

  • Provides necessary vacuum for the brake booster when the internal combustion engine cannot, such as during cold start/warm-up phase, at high altitudes, or when using the air-conditioning system
  • 12V operation with voltage range of 10V to 16V
  • Operating temperature range of -40°C to 120°C
  • Achieves maximum vacuum level of ≥86% below ambient pressure
  • Weight approximately 1 kg (2.2 lbs)
  • Pump operating time rated for ≥600 hours
  • Features cable with engine compartment connector for ECU integration
  • Maintenance-free, engine-independent vacuum support

The UP28 is installed parallel to the main combustion engine and evacuates filtered air via the brake booster and flexible pneumatic hoses. Hella has produced over 17 million electric vacuum pumps since 1999, demonstrating proven reliability and quality in automotive brake systems.

Products specifications

Fits

2003-2011 Volvo XC90; 1999-2006 Volvo S80; 2001-2009 Volvo S60; 2003-2007 Volvo XC70; 2001-2007 Volvo V70; 2006-2013 Volvo C70; 2007-2013 Volvo C30; 2000-2011 Volvo S40; 2005-2011 Volvo V50; 2000-2004 Volvo V40

Height (in)

5.400 in.

Length (in)

4.800 in.

Maximum Vacuum (hg)

29.5

Mounting Insulators Included

Yes

Notes

This vacuum pump is identical to Hella 009428081.

Power Supply

12 V DC

Quantity

Sold individually.

Switching Relay Included

No

Vacuum Control Included

No

Vacuum Gauge Included

No

Vacuum Hose Included

No

Width (in)

4.000 in.

SVHC

7439-92-1; Lead

Operating Mode

Electric

Rated Voltage [V]

12

Supplementary Article/Info 2

with damping

Number of Poles

2
