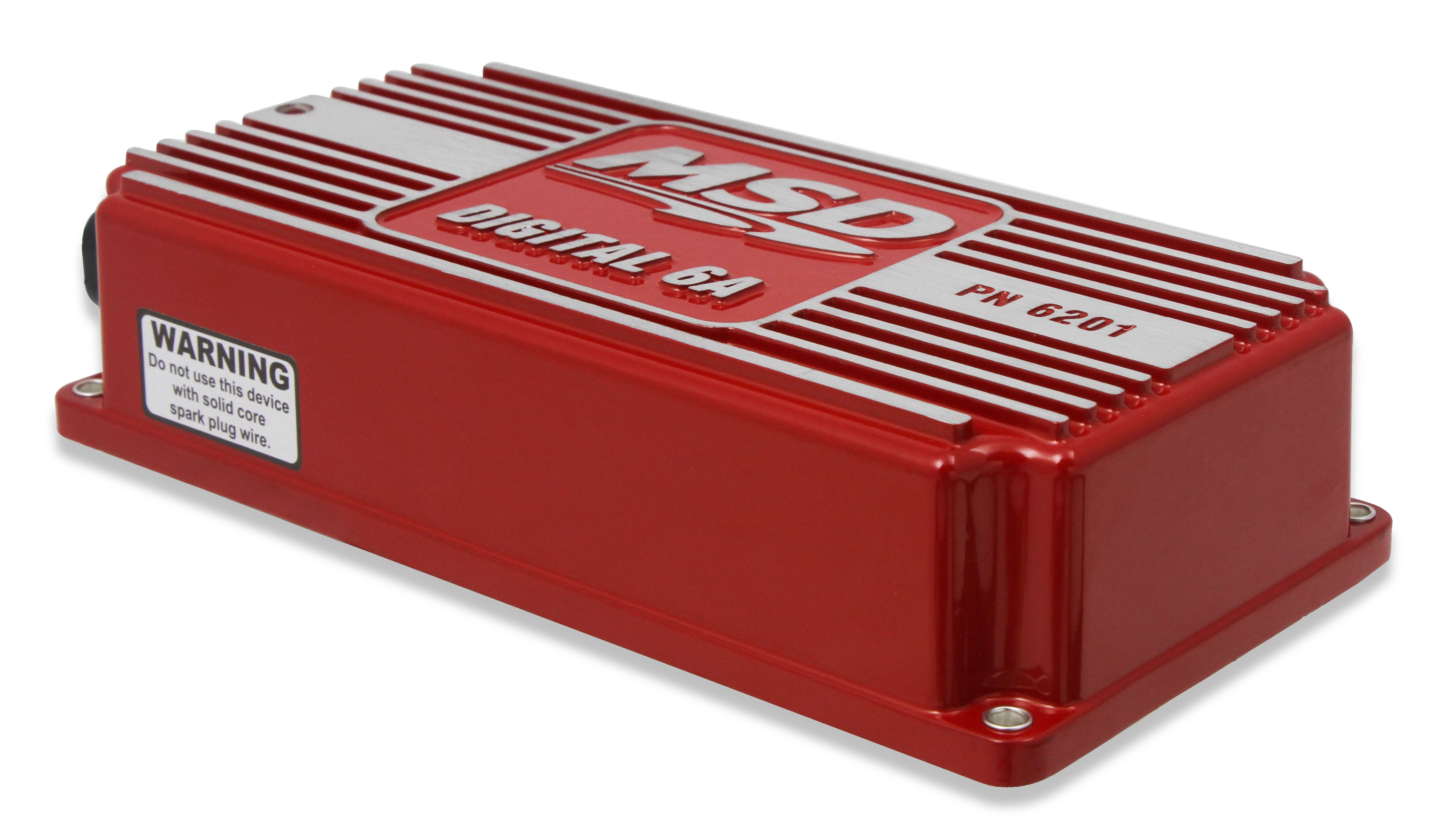

MSD 6201 Digital 6A Capacitive Discharge Ignition Control - Red

The MSD 6201 Digital 6A Ignition Control is a microprocessor-controlled, capacitive discharge ignition box engineered to maximize engine efficiency across the entire RPM range. Delivering multiple sparks up to 3,000 RPM, it ensures easy starts, a smooth idle, and crisp throttle response — then transitions to a single, sustained spark above 3,000 RPM that stays lit for up to 20° of crankshaft rotation for a complete burn of the air/fuel mixture in every cylinder.

Inside the Digital 6A, updated digital circuitry and efficient components drive over 530 primary volts to the coil with 135–145 mJ of spark energy per firing — all while drawing less current than older analog designs. The result is more power and reliability with a leaner current draw of just 0.7 amps per 1,000 RPM.

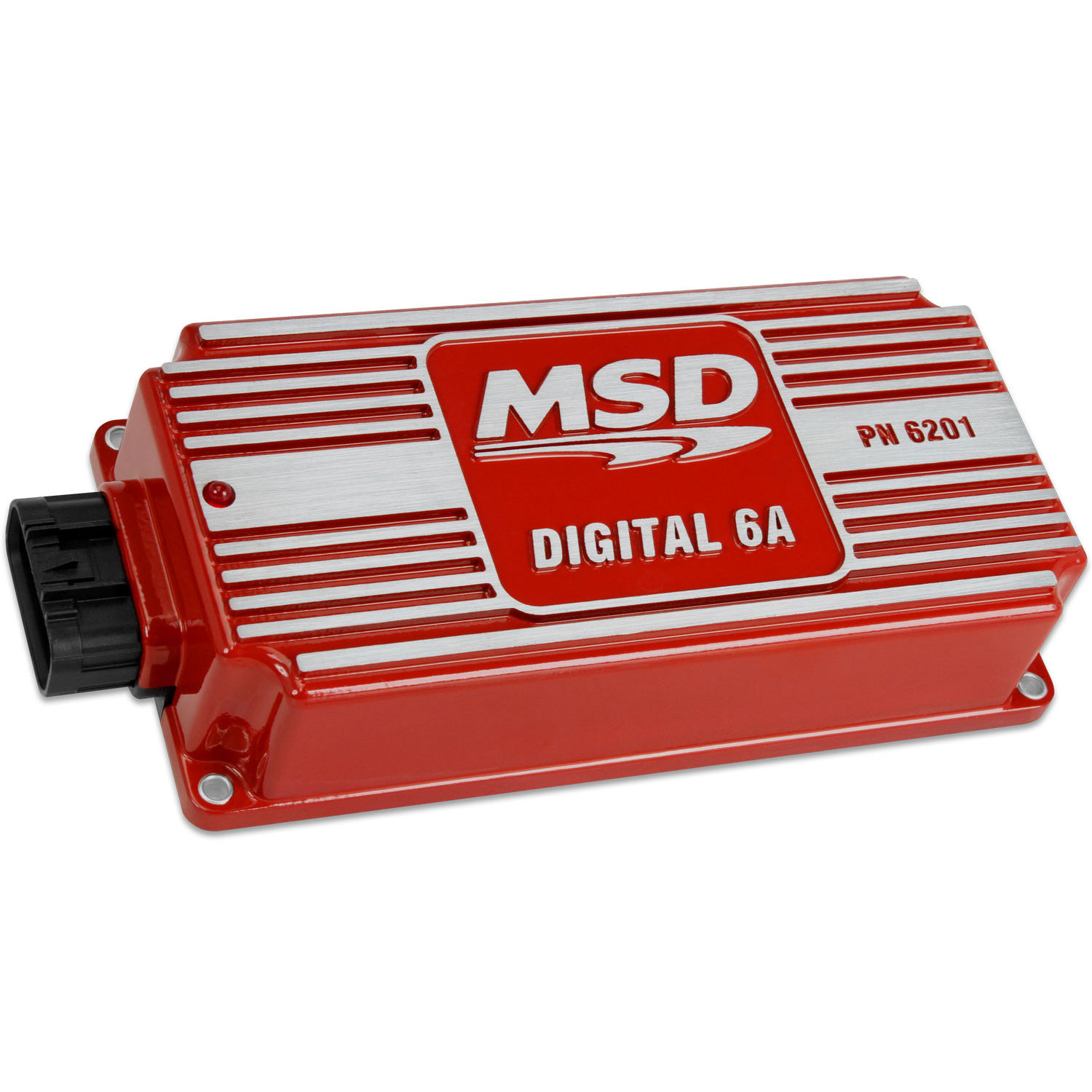

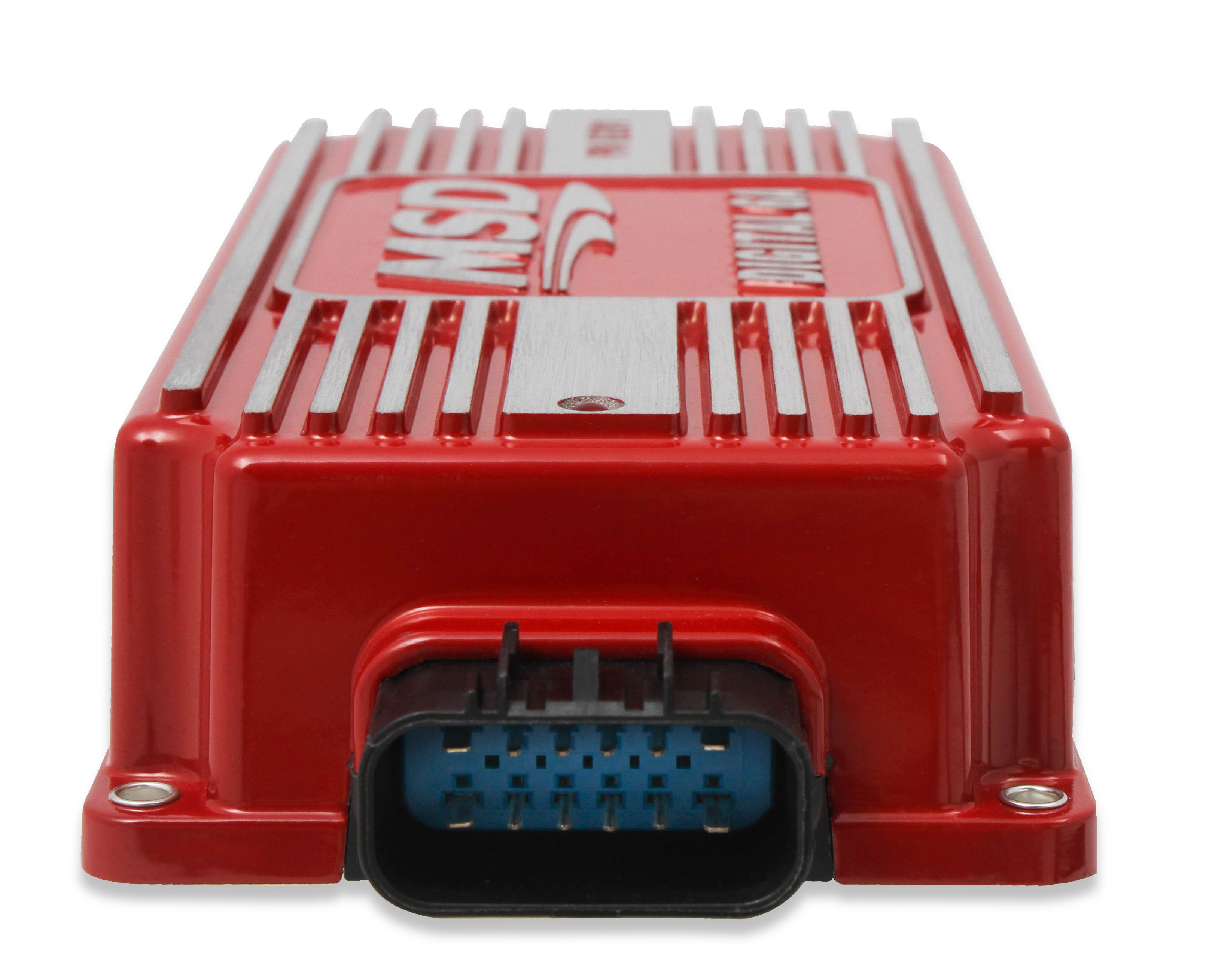

The low-profile housing shares the same bolt pattern as the traditional MSD 6AL, making it a direct upgrade. All wiring exits cleanly from one end of the unit through a sealed, locking connector for a professional, clutter-free installation. A built-in LED indicator simplifies system diagnostics at a glance.

Key Features:

• Multiple spark discharge up to 3,000 RPM for easy starts and smooth idle
• Single spark sustained up to 20° of crankshaft rotation above 3,000 RPM
• Over 530 primary volts with 135–145 mJ of spark energy per firing
• Efficient digital circuitry draws only 0.7 amps per 1,000 RPM
• RPM range up to 15,000 RPM at 14.4 volts
• Operating voltage: 12–15V; 7V start capability
• Primary voltage: 520–540V | Secondary voltage: 45,000V

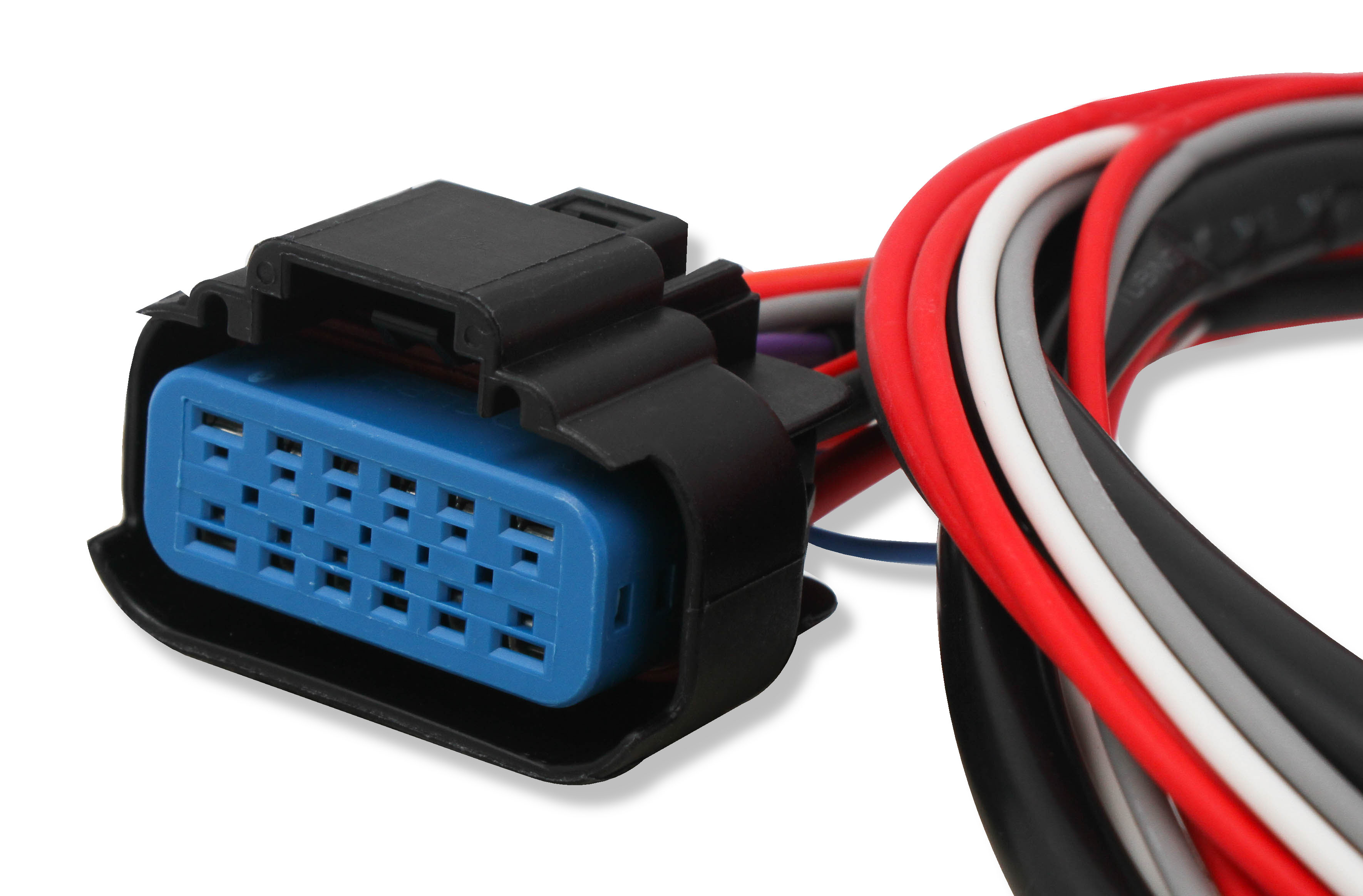

• Sealed, locking connector for clean, secure wiring installation
• Built-in LED for quick system checks and diagnostics
• Tachometer output wire included
• Compatible with 4, 6, and 8-cylinder engines

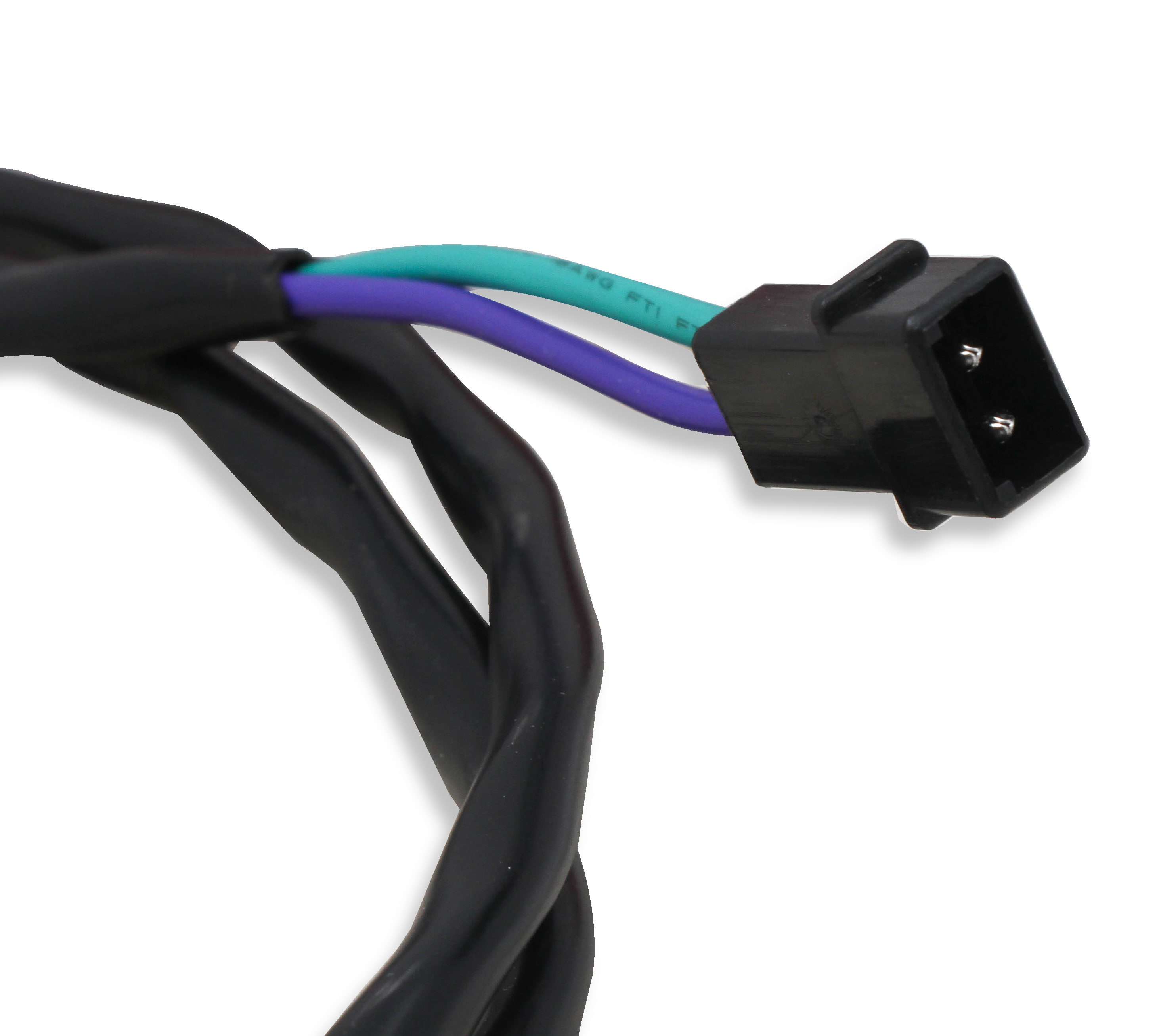

• Accepts trigger inputs from breaker points, electronic amplifiers, or magnetic pickups
• Requires 12-volt negative ground electrical system
• CARB-compliant — legal for sale and use on emissions-controlled vehicles in all 50 states

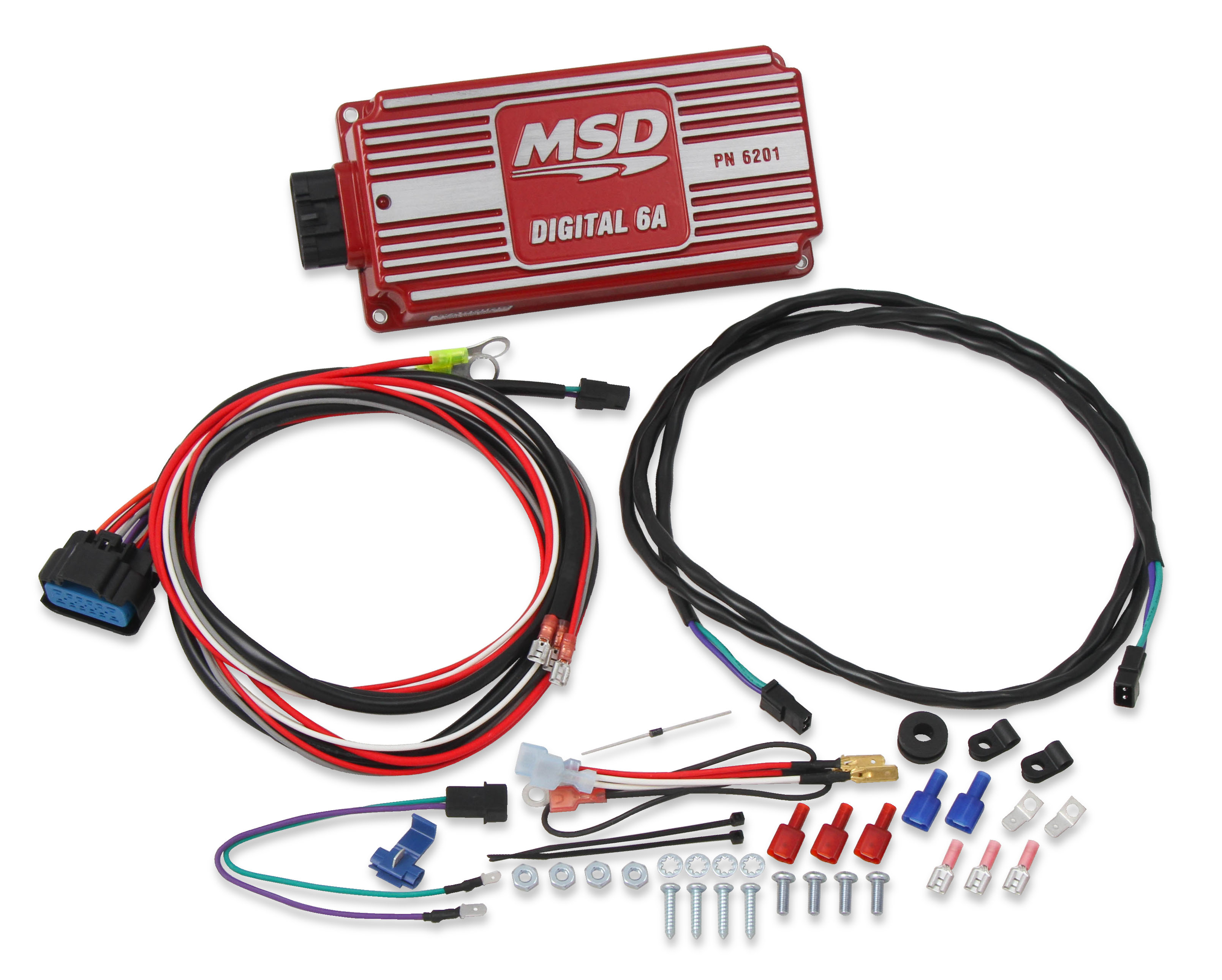

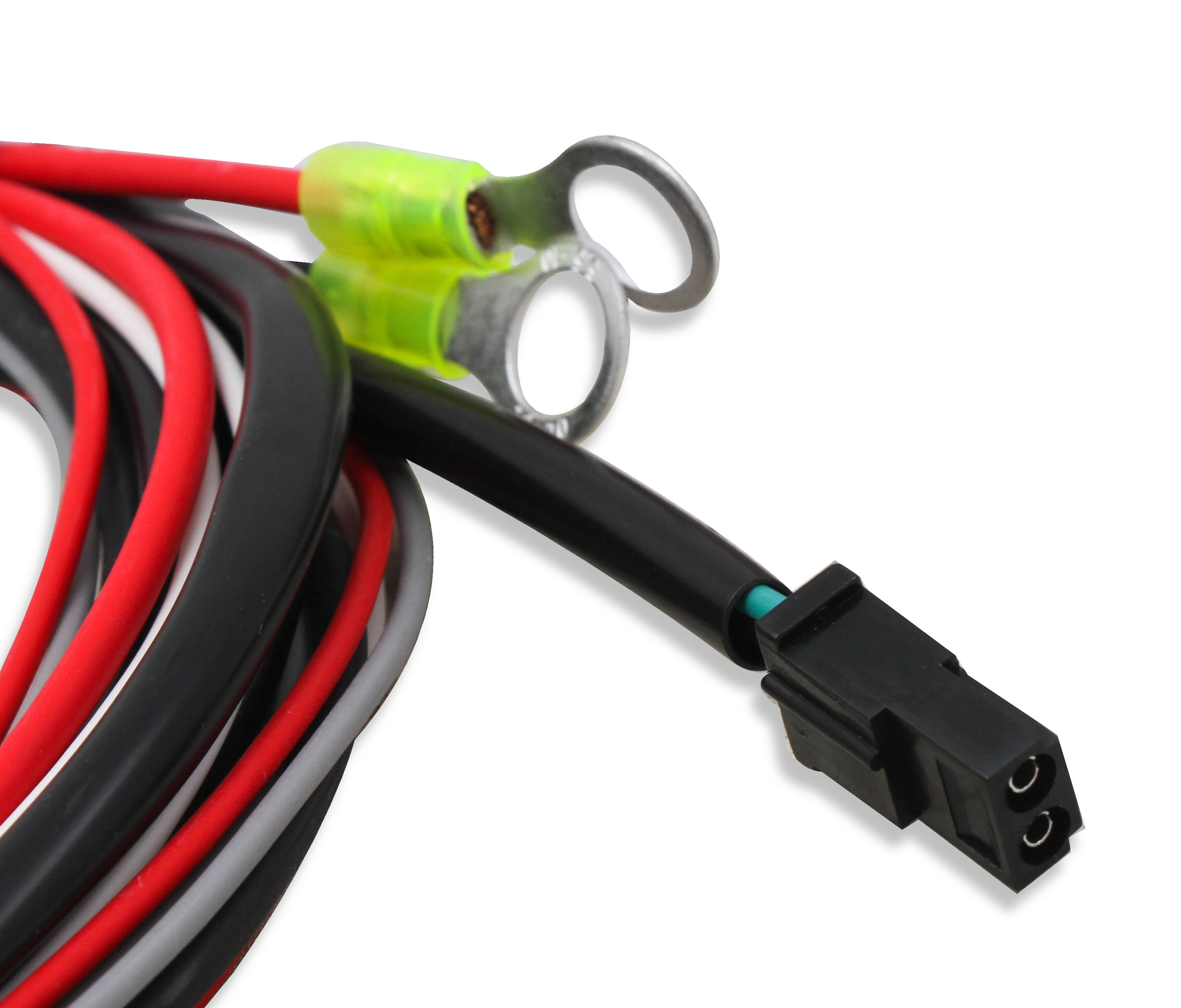

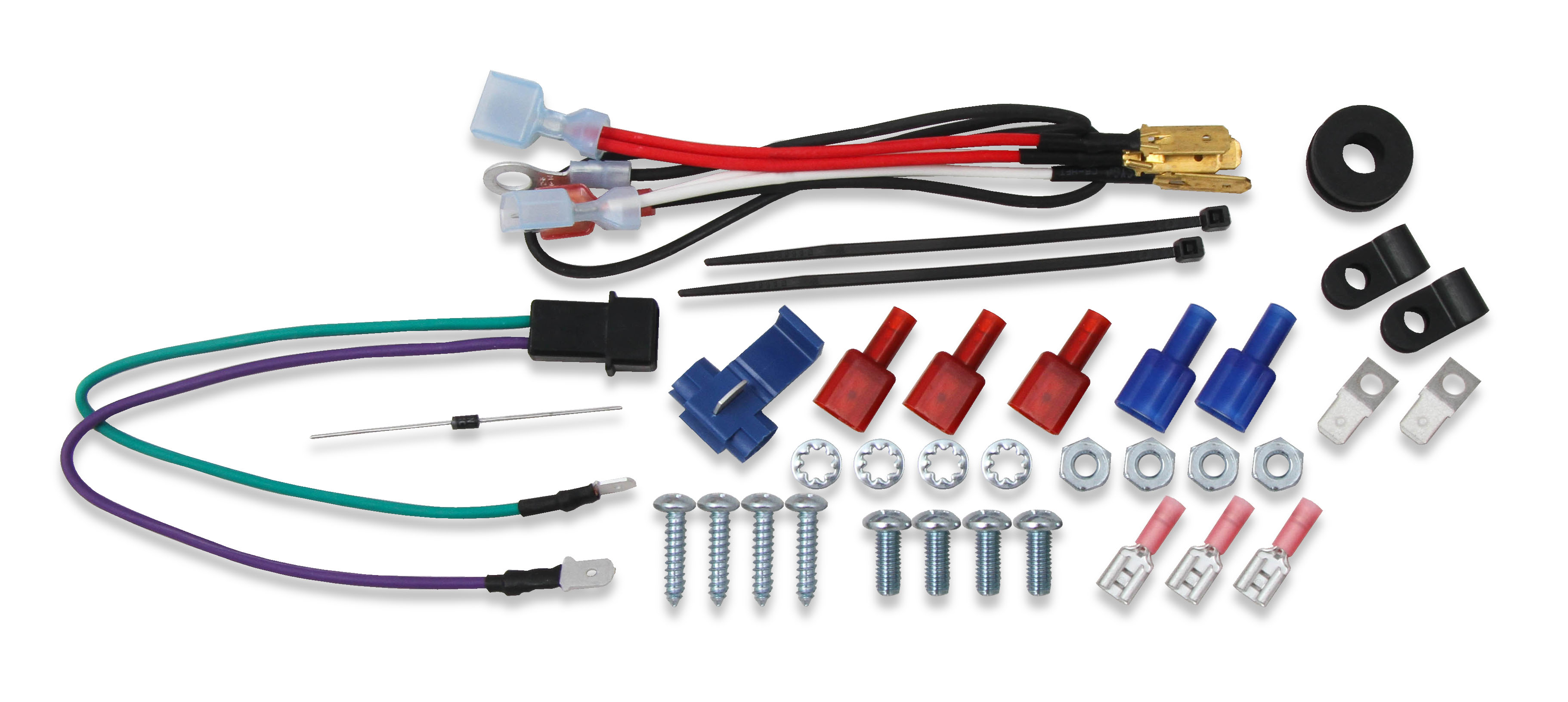

• Wiring harness and mounting hardware included

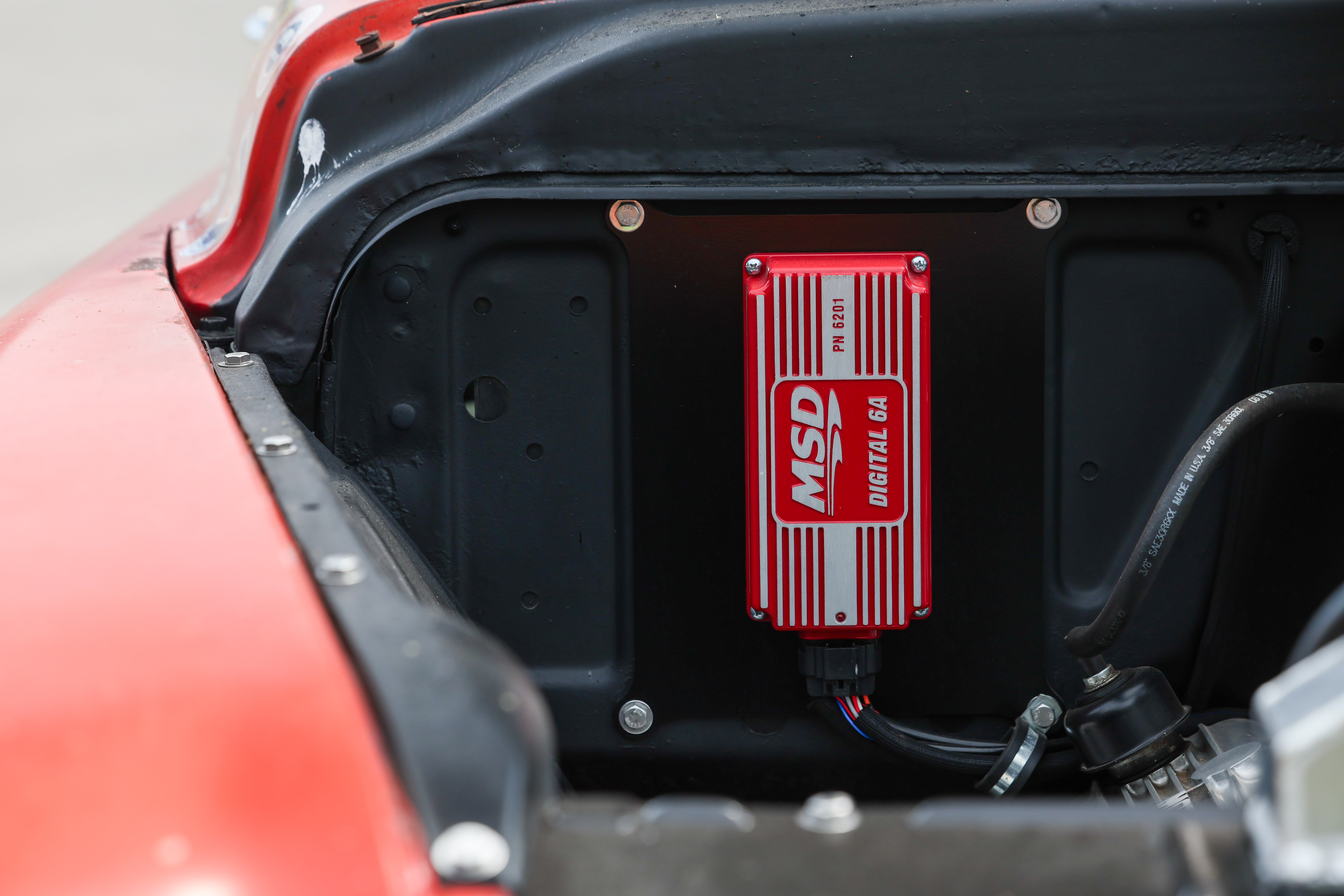

The MSD 6201 Digital 6A is ideal for street performance builds, modified engines, and any application where ignition reliability and output are critical. Its red housing and low-profile design make it a clean fit in any engine bay.
