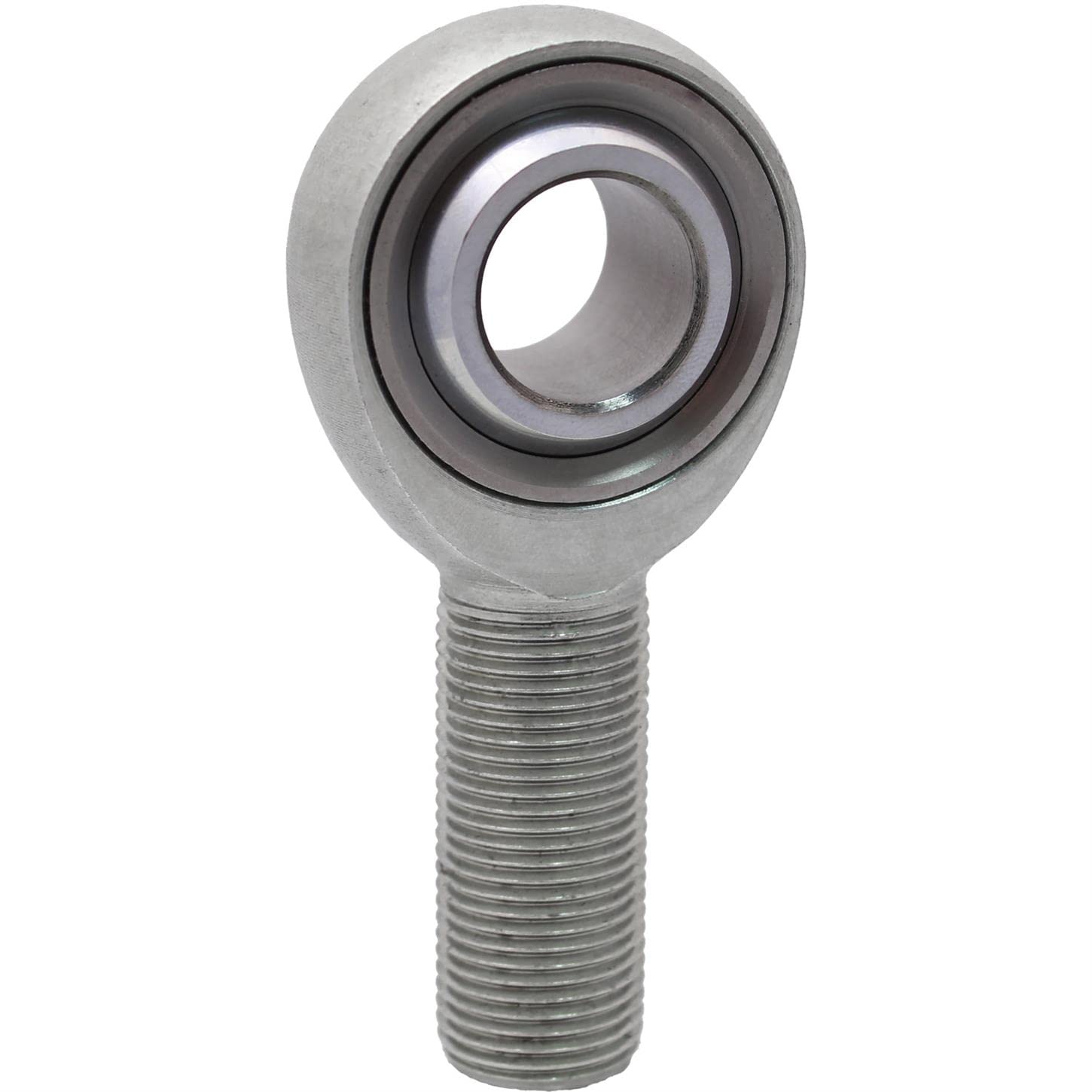

QA1 Precision Products KMR16-1 KM Series Carbon Steel Male Rod
End
In QA1?s 3-Piece rod end, the ball is pressed into a sleeve that
is swaged around the ball. After swaging, the unit is called the
insert. The O.D. of the insert is then turned down and faced off to
square up the sides for staking into a rod end body. This unit
offers better ball to race conformity for together tolerances.
This style rod end is good in applications that required tighter
tolerances.
KM Series Carbon Steel
Male
The traditional three-piece carbon steel rod end is defined as
QA1?s KM Series rod ends. Available in
right and left hand threads and inch dimensions, these truly are
precision rod ends. Grease fittings and stud configurations are
also available.
BALL
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
RACE
- Alloy Steel
- Corrosion and Wear Resistant
BODY
- Carbon Steel (Alloy Steel ? Mfr.?s Option)
- Protective Coated for Corrosion Resistance
KM-T Series Carbon Steel
Male
Add a PTFE liner to the traditional
three-piece carbon steel male rod end and you have QA1?s
KM-T Carbon Steel Series rod ends.
Available in right and left hand threads and inch dimensions, these
truly are precision rod ends. Stud configurations are also
available.
BALL
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
RACE
- Alloy Steel
- Corrosion and Wear Resistant
- PTFE Lined
BODY
- Carbon Steel (Alloy Steel ? Mfr.?s Option)
- Protective Coated for Corrosion Resistance
HM Series Alloy Steel
Male
QA1?s HM Series rod ends are a
traditional three-piece chromoly steel male rod end. These
precision rod ends are heat treated, are available in right and
left hand threads and in metric and inch dimensions. Grease
fittings and stud configurations are also available.
BALL
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
RACE
- Chromoly Heat Treated Steel
- Corrosion and Wear Resistant
BODY
- Chromoly Steel
- Heat Treated
- Protective Coated for Corrosion Resistance
HM-T Series Alloy Steel
Male
With a PTFE liner added to the
traditional three-piece chromoly steel male rod end, QA1?s
HM-T Series rod ends are ideal for a
variety of applications. True precision rod ends, the HM-T Series are available in right and left hand
threads and in metric and inch dimensions. Stud configurations are
also available.
BALL
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
RACE
- Low Carbon Steel
- Corrosion and Wear Resistant
- PTFE Lined
BODY
- Chromoly Steel
- Heat Treated
- Protective Coated for Corrosion Resistance
HF-T Series Alloy Steel
Female
With a PTFE liner added to the
traditional three-piece alloy steel female rod end, QA1?s
HF-T Series rod ends are ideal for a
variety of applications. True precision rod ends, the HF-T Series are available in right and left hand
threads and in metric and inch dimensions. Stud configurations are
also available.
BALL
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
RACE
- Low Carbon Steel
- Corrosion and Wear Resistant
- PTFE Lined
BODY
- Chromoly Steel
- Heat Treated
- Protective Coated for Corrosion Resistance
KF Series Carbon Steel
Female
The traditional three-piece carbon steel female rod end is defined
as QA1?s KF Series rod ends. Available in
right and left hand threads and inch dimensions, these truly are
precision rod ends. Grease fittings and stud configurations are
also available.
BALL
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
RACE
- Alloy Steel
- Corrosion and Wear Resistant
BODY
- Carbon Steel (Alloy Steel ? Mfr.?s Option)
- Protective Coated for Corrosion Resistance
KF-T Series Carbon Steel
Female
Add a PTFE liner to the traditional
three-piece carbon steel female rod end and you have QA1?s
KF-T Carbon Steel Series rod ends.
Available in right and left hand threads and inch dimensions, these
truly are precision rod ends. Stud configurations are available by
calling 800.721.7761.
BALL
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
RACE
- Alloy Steel
- Corrosion and Wear Resistant
- PTFE Lined
BODY
- Carbon Steel (Alloy Steel ? Mfr.?s Option)
- Protective Coated for Corrosion Resistance
HF Series Alloy Steel
Female
QA1?s HF Series female rod ends are a
traditional three-piece chromoly steel rod end. These precision rod
ends are heat treated, are available in right and left hand threads
and in metric and inch dimensions. Grease fittings and stud
configurations are also available.
BALL
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
RACE
- Chromoly Heat Treated Steel
- Corrosion and Wear Resistant
BODY
- Chromoly Steel
- Heat Treated
- Protective Coated for Corrosion Resistance
