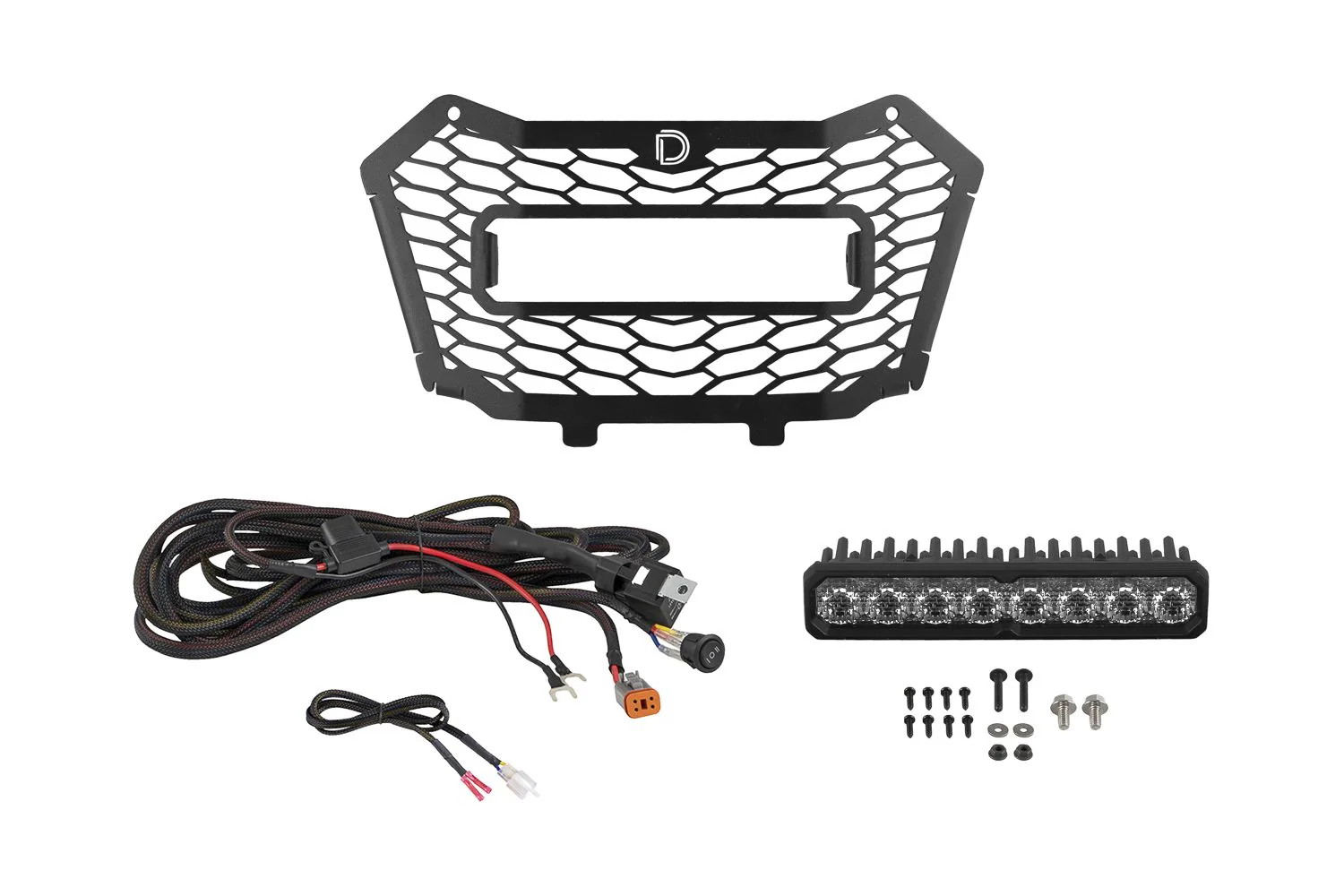

Diode Dynamics DD8345 SS10 Max White Combo Grille Light Bar with Multicolor Backlight

The Diode Dynamics SS10 Max Grille Light Bar (DD8345) is a premium bolt-on LED lighting upgrade designed as a complete grille replacement. This kit installs using factory mounting points — no cutting or drilling required — making it one of the cleanest and most powerful off-road lighting upgrades available for compatible UTV applications.

Powered by Diode Dynamics' proprietary TIR (Total Internal Reflection) optics, the SS10 Max focuses virtually all light output directly where it's needed, eliminating the scattered glare common with reflector-based designs. The result is an impressive 40,500 cd of peak intensity through a Combo/Driving 60°x30° beam pattern.

Key Features:

• 15,840 lumens of crisp 6000K white output at 61W
• 40,500 cd peak intensity — outperforms competing light bars in class
• Combo/Driving beam: 60°x30° spread via custom TIR optics
• Bolt-on stainless steel grille replacement — installs at factory points, no modifications needed
• Multicolor backlight with 8 selectable colors plus RGBWA dynamic startup sequence
• Color selection requires no controller — simply cycle power on/off
• Rated IP69K Waterproof (high-pressure wash resistant)
• Thick-gauge stainless steel brackets built for demanding off-road conditions
• Made in the USA — backed by the Diode Dynamics Lifetime Warranty

The multicolor backlight system delivers a distinctive accent glow when the main beam is off. When powered on, the selected color sequences dynamically across the full bar before fully illuminating — a truly premium appearance. The dedicated amber channel uses a full RGBWA LED chip, ensuring a perfect color match with other Diode Dynamics SS-series LED pods.
