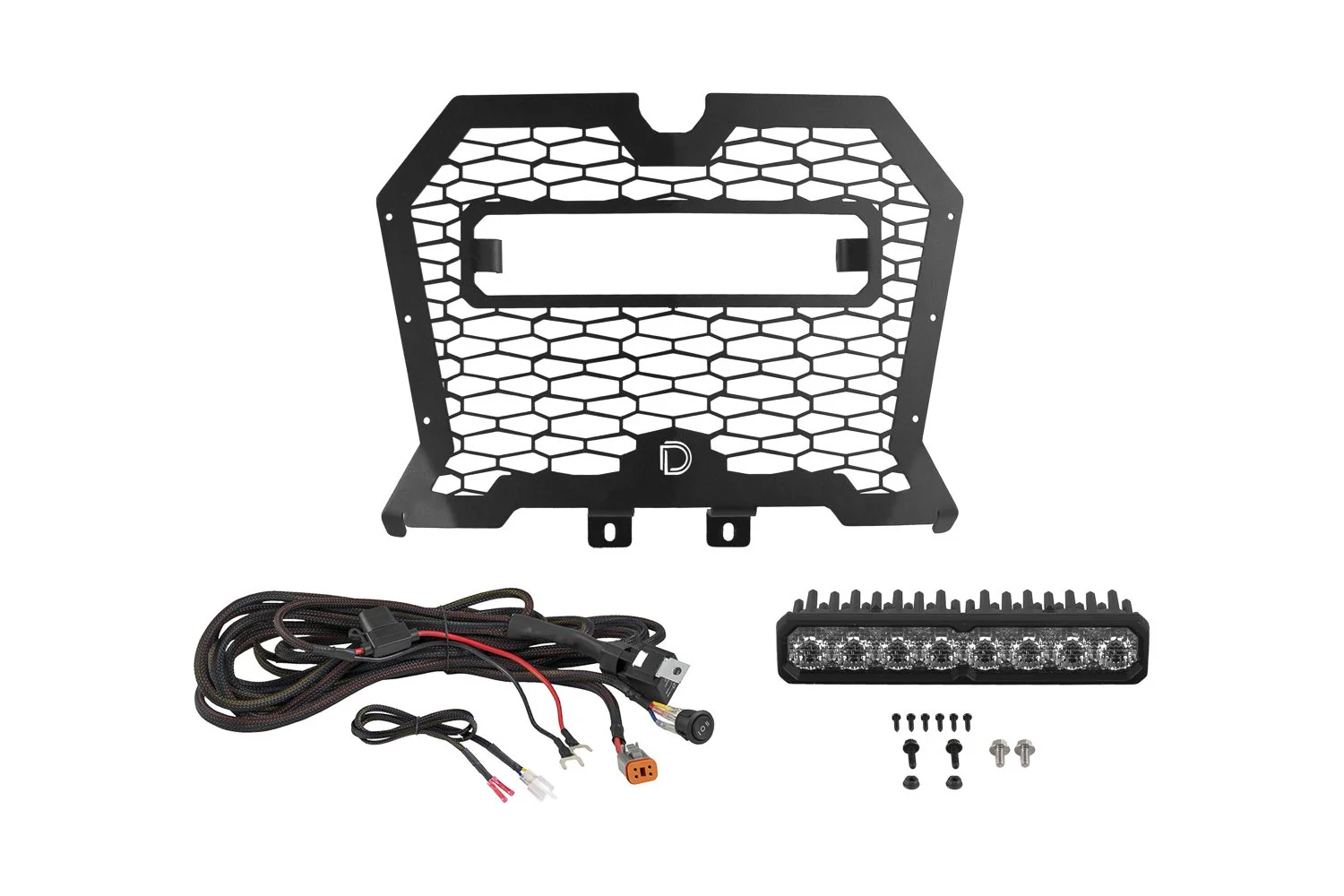

Diode Dynamics DD8337 SS10 Sport SAE LED Light Bar Grille Kit White/Multicolor Backlit

The Diode Dynamics DD8337 SS10 Sport LED Light Bar Grille Kit is a complete bolt-on lighting upgrade delivering powerful, road-legal illumination with a distinctive multicolor backlit accent. Engineered for a precision fit, this kit replaces the factory grille using existing factory mounting points — no cutting or drilling required.

At the heart of this kit are Diode Dynamics' proprietary TIR (Total Internal Reflection) optics, which focus virtually all light output into a SAE Driving 20°×12° beam pattern, producing 3,688 lumens of crisp 6000K white light at 40 watts. Peak intensity reaches 73,500 candela, outperforming competing light bars in its class.

Key Features:

• 3,688 lm output at 6000K daylight white color temperature
• SAE Driving beam pattern — 20°×12° focused spread
• 73,500 cd peak intensity for class-leading performance
• Custom TIR optics eliminate wasted light and glare
• Multicolor backlight with 8 selectable colors and dynamic startup sequence
• Color selection via simple on/off cycling — no controller or programming required
• Dedicated amber backlight channel using a full RGBWA LED chip set
• Precision-fit stainless steel grille and brackets — bolt-on, no drilling
• IP69K waterproof rating — withstands high-pressure wash and extreme conditions
• Engineered and Made in the USA
• Backed by the Diode Dynamics Lifetime Warranty

The SS10 Sport's multicolor backlight features a dynamic startup sequence that sweeps color across the entire bar before fully illuminating, providing a premium appearance even when the main driving beam is off. Thick-gauge stainless steel hardware ensures durability in the most demanding off-road environments.
