Diode Dynamics DD8336 SS10 Max Yellow/Amber Backlit Combo LED Light Bar Grille Kit

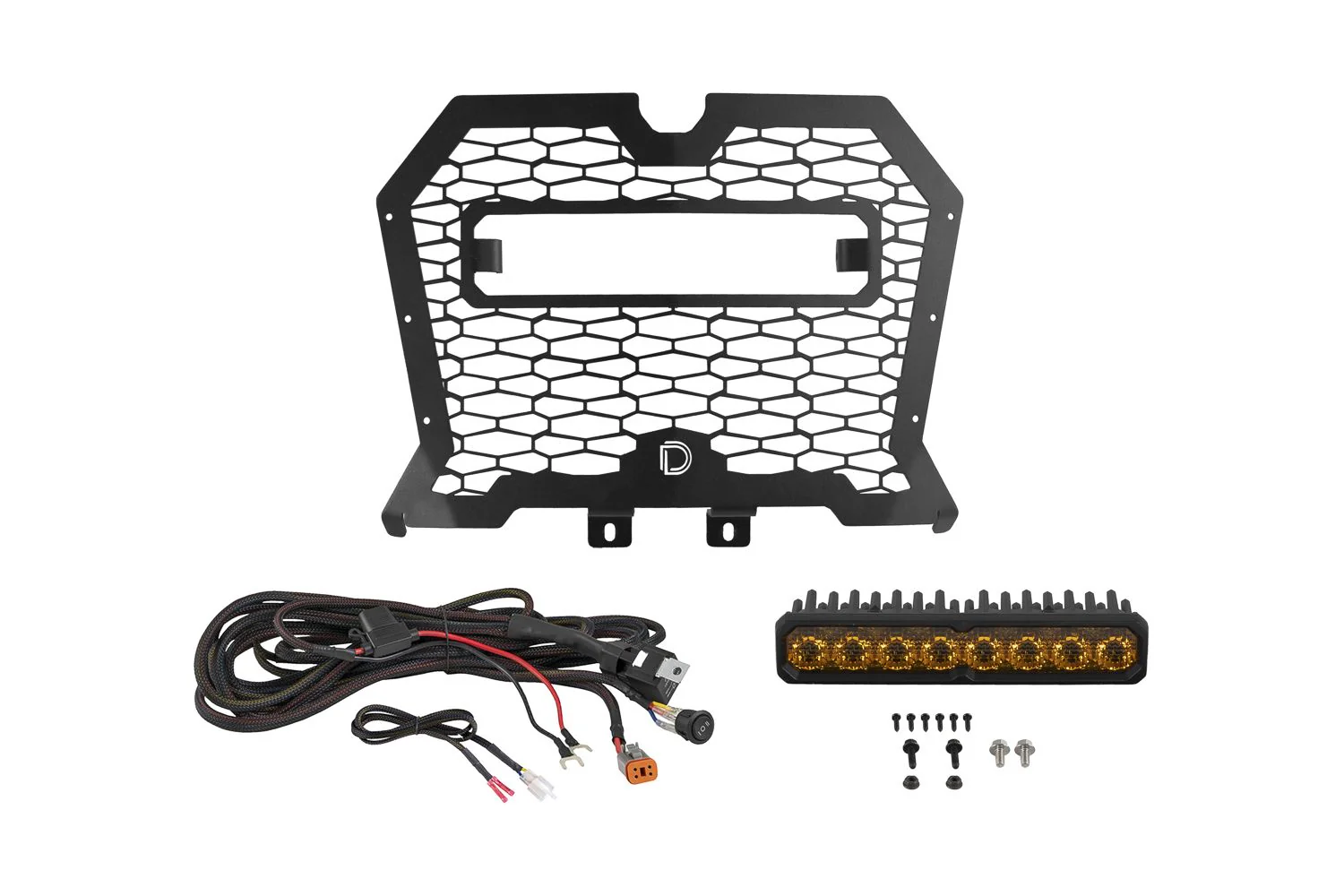

The Diode Dynamics DD8336 is a complete SS10 Max LED light bar grille kit featuring a warm 3000K yellow beam output. This bolt-on kit replaces the factory grille with a precision-fit stainless steel unit that mounts using factory points — no cutting or drilling required. Designed for demanding off-road use, it delivers exceptional light output through Diode Dynamics' proprietary TIR (Total Internal Reflection) optic technology.

Key Features:

• Output: 15,840 lumens of warm 3000K yellow light at 61W
• Beam Pattern: Combo/Driving — 60°x30° spread for versatile illumination
• Peak Intensity: 32,300 candela
• Optics: Custom TIR optics focus virtually all output precisely where needed, eliminating wasted light and glare
• Backlight: Amber-only backlight with no startup sequence for a distinctive accent appearance
• Waterproof Rating: IP69K — rated for high-pressure water exposure
• Construction: Thick-gauge stainless steel brackets built for extreme off-road conditions
• Installation: Direct bolt-on replacement using factory mounting points — no drilling or cutting required
• Warranty: Backed by the Diode Dynamics Lifetime Warranty
• Made in the USA

The SS10 Max LED light bar outperforms competing light bars in its class thanks to Diode Dynamics' advanced TIR optic design, which serves as both the optic and the outer lens for maximum efficiency. The yellow 3000K color temperature improves contrast and visibility in adverse conditions such as dust, fog, and rain — a popular choice for off-road trail riding. The integrated amber backlight provides a unique accent glow when the main beam is off, adding both style and trail-side visibility.
