Diode Dynamics DD8332 SS10 Sport Yellow Combo Backlit LED Light Bar Grille Kit

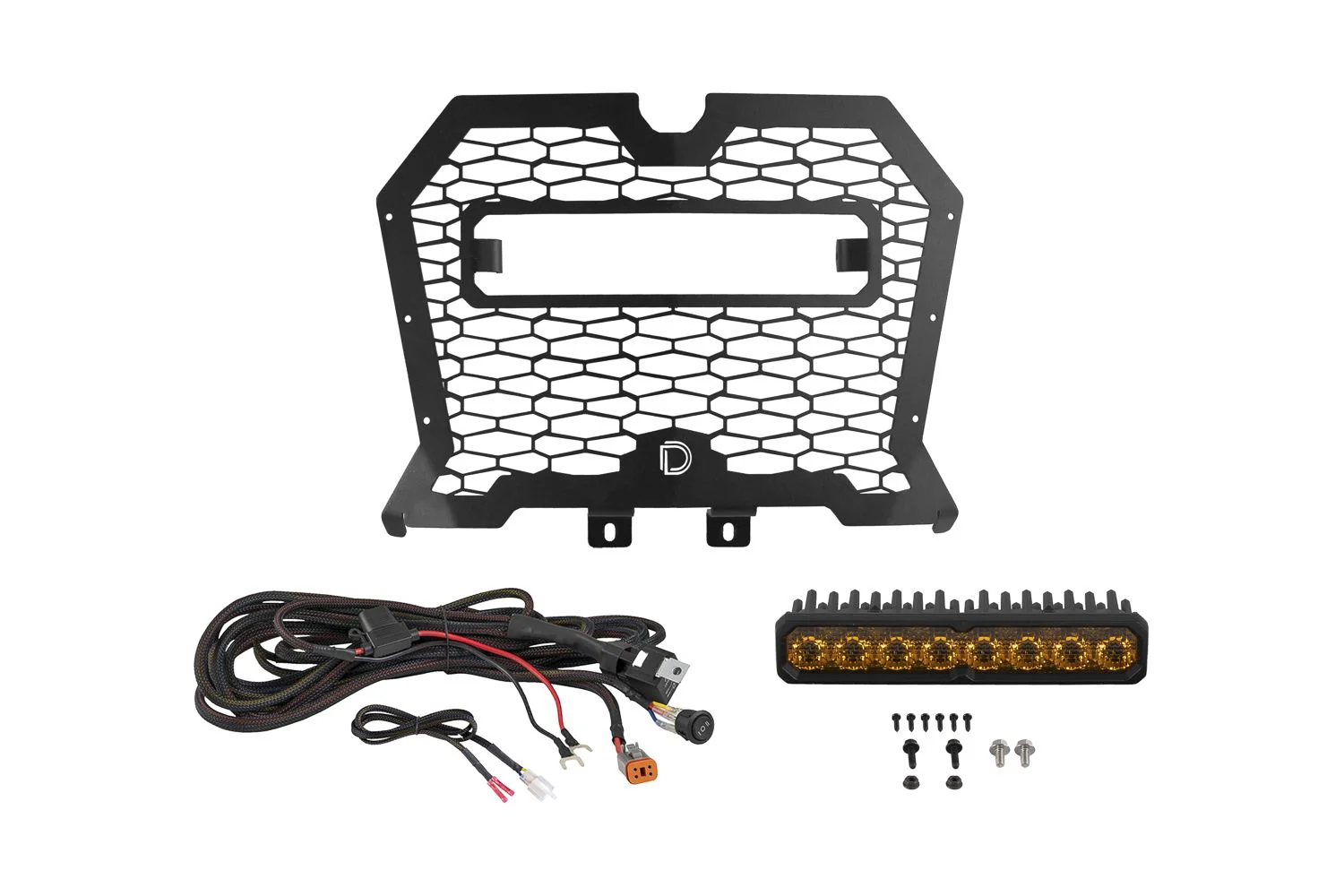

The Diode Dynamics DD8332 SS10 Sport Grille Light Bar Kit is a complete bolt-on LED lighting upgrade delivering powerful 3000K warm yellow illumination through a precision-engineered stainless steel grille assembly. Designed as a direct factory grille replacement, the kit installs using existing factory mounting points — no cutting or drilling required — for a clean, OEM-quality fitment.

Key Features:

• Output: 3,688 lumens at 40W with a Combo/Driving 60°x30° beam pattern
• Peak Intensity: 16,500 candela for exceptional long-range illumination
• Color Temperature: 3000K warm yellow light, ideal for dust, fog, and off-road trail conditions
• Optics: Custom TIR (Total Internal Reflection) optics concentrate nearly all light output precisely on target, eliminating wasted light and glare
• Amber Backlight: Built-in amber accent backlight activates independently from the main beam for a distinctive trail-side appearance
• Grille Construction: Precision-fit thick-gauge stainless steel brackets engineered for demanding off-road use
• Waterproof Rating: IP69K rated — resistant to high-pressure washing and full water immersion
• Installation: Bolt-on replacement using factory mounting points; no cutting or drilling required
• Warranty: Backed by the Diode Dynamics Lifetime Warranty
• Made in the USA

The SS10 Sport's custom TIR optics outperform traditional reflector-based light bars by focusing output exactly where it's needed — reducing glare while maximizing usable trail illumination. The amber-only backlight provides a unique accent when the main beam is off, adding extra visibility to others on the trail. Built with the same precision and quality standards as all Diode Dynamics off-road lighting products, the DD8332 is engineered to handle the most demanding powersports environments.
