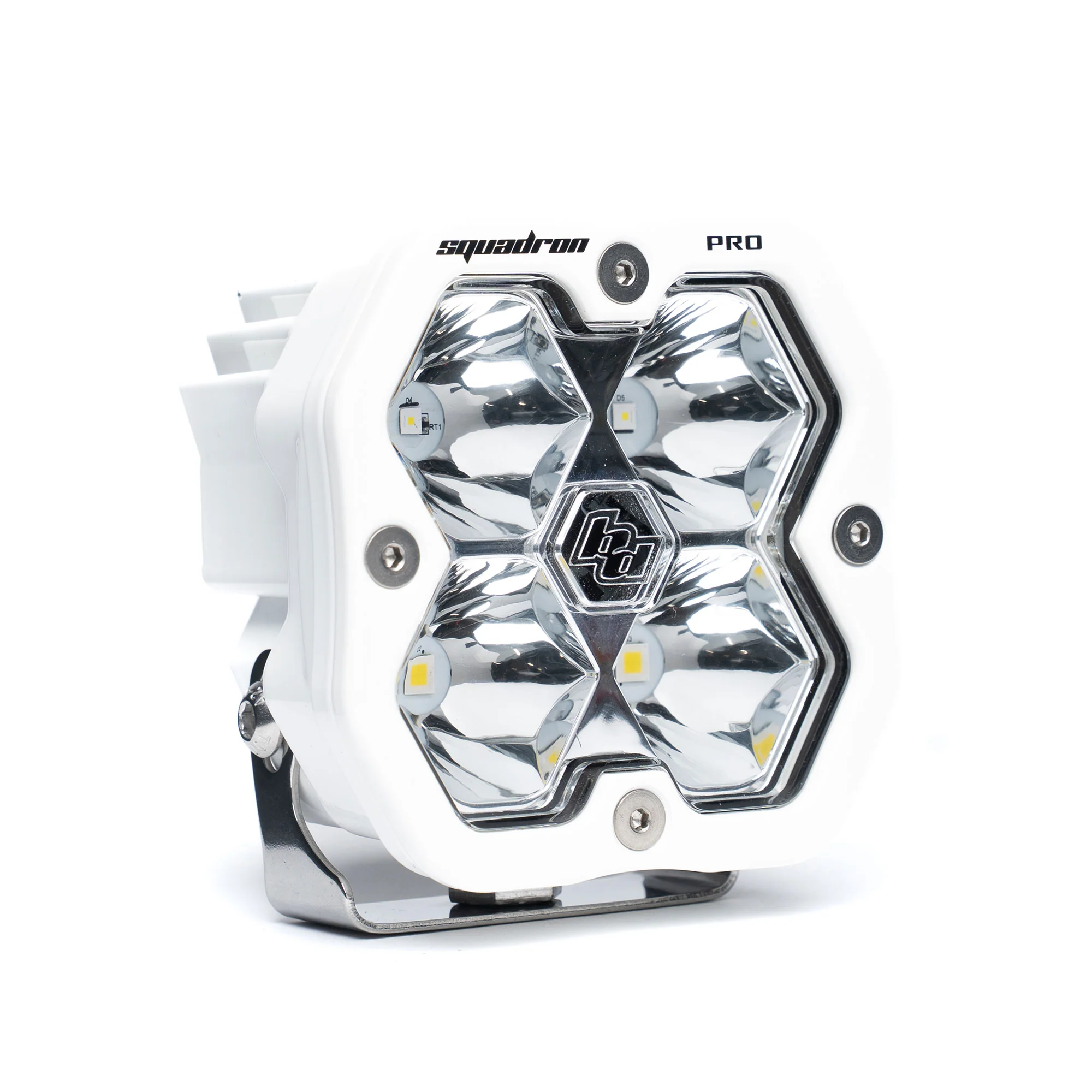

Baja Designs 49-0016-WT-2 Squadron 2.0 Pro LED Work/Scene Light Pod White Housing Baja Amber

Manufacturer

Part Number

49-0016-WT-2
Black Friday Price

$269.95

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Baja Designs Squadron 2.0 Pro (49-0016-WT-2) is a next-generation compact LED auxiliary light pod featuring a Work/Scene beam pattern and Baja Amber LED color in a white housing. Completely redesigned from the ground up, the Squadron 2.0 Pro delivers a significant performance increase over the previous generation Squadron Pro, combining modern housing aesthetics with precision-engineered next-generation optics.

Key Features:

  • Baja Amber LEDs — purpose-built for improved visibility in dust, fog, rain, and other low-contrast conditions
  • Work/Scene beam pattern — wide, close-range illumination ideal for work sites, camp setups, and slow-speed off-road use
  • White housing with hard anodized and powder-coated cast aluminum construction for maximum durability
  • Hard-coated polycarbonate front lens resists scratching and UV degradation
  • Billet machined aluminum bezel with stainless steel hardware and bracket
  • IP69K certified — submersible to 9 feet, fully sealed against dust and water ingress
  • IK10 compliant — passes rigorous mechanical impact testing
  • MIL-STD-810G certified — tested for temperature extremes, thermal shock, vibration, mechanical shock, dust, low pressure, and drip/water exposure
  • Built-in overvoltage protection for reliable electrical performance
  • 49,930-hour LED life expectancy for long-term, maintenance-free operation
  • Wiring to 12V power required — wiring harness sold separately

Engineered for off-road, overlanding, and powersports applications, the Squadron 2.0 Pro is one of the most trusted compact LED light pods in the industry. The 49-0016-WT-2 variant pairs the powerful Work/Scene optic with Baja Designs' proprietary Baja Amber phosphor technology, making it an ideal complement to white driving lights for a complete front lighting system.

Products specifications

Prop 65

Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Description

Backlight: 9-Colors

Length (in.)

2.84”

Voltage

Operating White Light Voltage: 10–36V; Operating Backlight Voltage: 11-14V

Height (in.)

3.29”

Amperage Rating (A)

65W / 4.7A @ 13.8V*

Brightness (Lumens)

5,921 lm

Depth (in.)

3.32”

Standards/Compliance (Water Resistance)

IP69K

Terminal Connector

Deutsch

DES

Squadron 2.0 Pro White LED Auxiliary Light Pod

EXT

Squadron 2.0 Pro White LED Auxiliary Light Pod (Work/Scene; Baja Amber)

TLE

Squadron 2.0 Pro White LED Auxiliary Light Pod (Work/Scene; Baja Amber)
