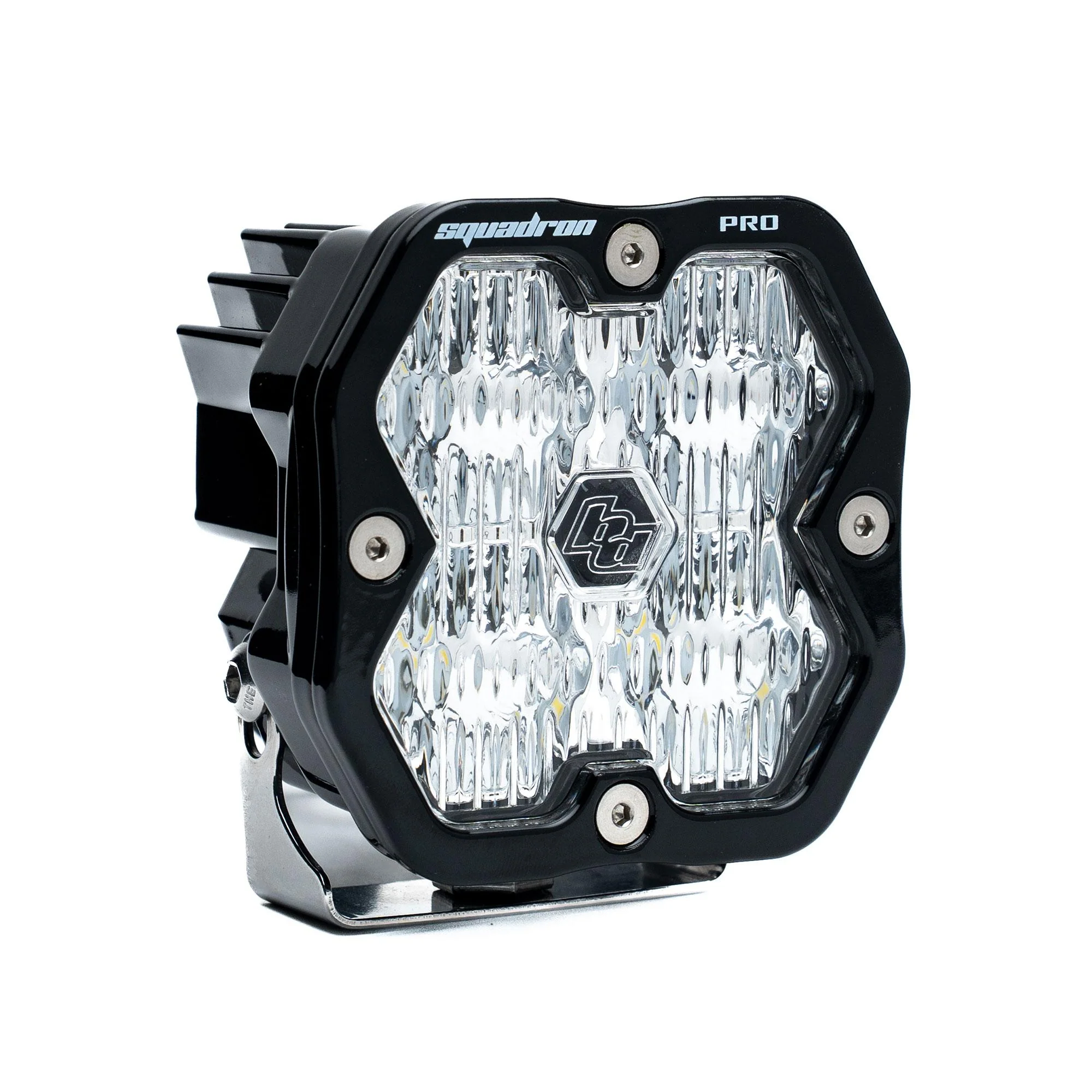

Baja Designs 49-0005-WT-2 Squadron Pro LED Wide Cornering Light Pod - 2.0 White

Manufacturer

Part Number

49-0005-WT-2
Black Friday Price

$259.95

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Baja Designs Squadron 2.0 Pro (49-0005-WT-2) is a next-generation compact LED auxiliary light pod featuring a white housing and Wide Cornering beam pattern. Completely rebuilt from the ground up, it delivers 5,921 lumens at 65W — a 41% performance increase over the previous Squadron Pro generation — with improved beam control, greater efficiency, and a refined optical design that puts more usable light exactly where it's needed.

The Wide Cornering beam pattern projects a 42° flattened horizontal spread specifically engineered for cornering, peripheral visibility, and challenging conditions including dust, snow, rain, and fog. This pattern excels at near- and mid-field illumination, giving drivers the confidence to navigate tighter terrain at speed with enhanced side-to-side coverage.

Key Features:

  • 5,921 lumens at 65W — 41% more output than the previous generation
  • Wide Cornering lens pattern — 42° flattened horizontal beam for cornering, dust, rain, snow, and fog conditions
  • White housing with hard anodized and powder-coated cast aluminum construction
  • Color-selectable RGBW backlight with 9 selectable colors to complement your vehicle's style
  • 4-pin Deutsch-style connector pigtail for increased durability and reliable connections
  • uService® design — secure clip-in reflectors for easy lens swaps without losing components
  • Redesigned gasket for superior sealing and long-term element protection
  • New adjustable mounting bracket with increased vertical adjustability for precise beam aiming
  • IP69K rated — fully waterproof and submersible to 9 feet
  • IK10 compliant — tested for mechanical impact resistance
  • Exceeds MIL-STD-810G military specification testing standards
  • Built-in overvoltage protection
  • Hard-coated polycarbonate front lens for scratch and impact resistance
  • Stainless steel hardware and bracket material for corrosion resistance
  • Backed by Baja Designs' 30-Day Satisfaction Guarantee and Limited Lifetime Warranty

What's Included:

  • (1) Squadron 2.0 Pro LED Wide Cornering Light Pod — White Housing
  • (1) Universal adjustable mounting bracket
  • (1) Mounting hardware set

Note: This light is sold as a single unit. The Squadron 2.0 Pro uses its own line of accessories and is not compatible with Squadron 1.0 accessories. All Baja Designs lighting products require wiring to a 12V power source; a wiring harness or additional accessories may be required and are sold separately. Off-road auxiliary lights are not intended for on-road use unless specifically marked SAE/DOT compliant.

Products specifications

Prop 65

Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Description

Backlight: 9-Colors

Length (in.)

2.84”

Voltage

Operating White Light Voltage: 10–36V; Operating Backlight Voltage: 11-14V

Height (in.)

3.29”

Amperage Rating (A)

65W / 4.7A @ 13.8V*

Brightness (Lumens)

5,921 lm

Depth (in.)

3.32”

Standards/Compliance (Water Resistance)

IP69K

Terminal Connector

Deutsch

DES

Squadron 2.0 Pro White LED Auxiliary Light Pod

EXT

Squadron 2.0 Pro White LED Auxiliary Light Pod (Wide Cornering; Clear)

TLE

Squadron 2.0 Pro White LED Auxiliary Light Pod (Wide Cornering; Clear)
