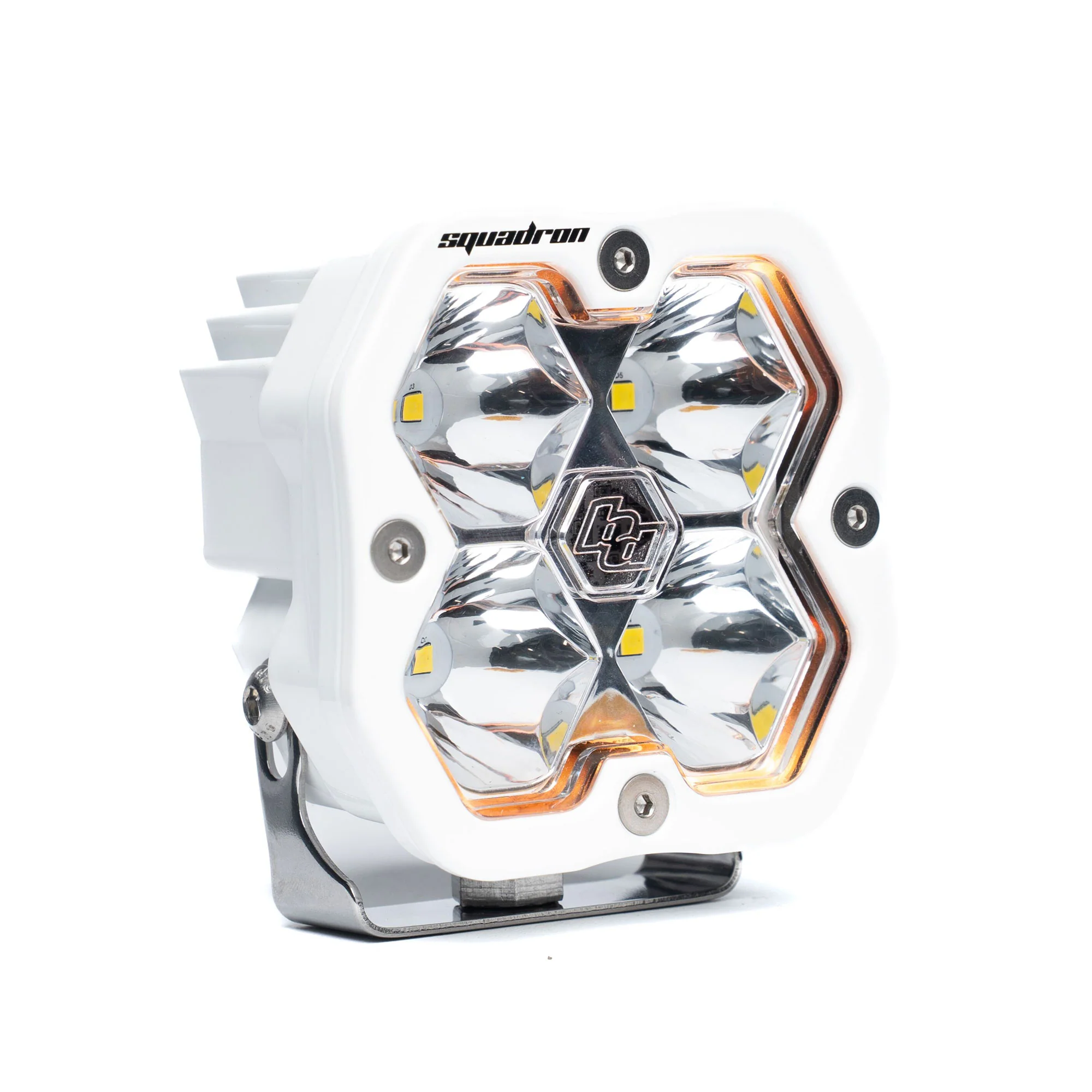

Baja Designs 55-0015-WT-2 Squadron 2.0 Sport LED Wide Cornering Light Pod White Housing Amber Lens

Manufacturer

Part Number

55-0015-WT-2
Black Friday Price

$184.95

In Stock (5)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Baja Designs Squadron 2.0 Sport (55-0015-WT-2) is the next evolution of Baja Designs' most trusted compact LED auxiliary light pod. Completely redesigned from the inside out, this single light pod features a gloss-white powder-coated cast aluminum housing paired with a Baja Amber lens in the Wide Cornering beam pattern — purpose-built for cornering, dust, and fog conditions.

Delivering 3,200 lumens at 30W, the Squadron 2.0 Sport represents a 35% performance increase over the previous generation while maintaining the same compact 3-inch form factor. Precision-engineered optics project a 42° flattened horizontal beam that maximizes near-field coverage and side illumination, making it ideal as a fog light, cornering light, scene light, or backup light.

Key Features:

  • 3,200 lumens at 30W — 35% more output than the previous Squadron Sport generation
  • Wide Cornering beam pattern — 42° horizontal spread optimized for cornering, dust, and fog
  • Baja Amber lens with hard-coated polycarbonate construction for enhanced contrast in adverse conditions
  • Gloss-white cast aluminum housing with billet machined aluminum bezel
  • 9-color selectable integrated backlight — red, green, blue, magenta, cyan, amber, yellow, pink, and white
  • 4-pin Deutsch connector for rugged, reliable electrical connection
  • uService® clip-in reflectors stay secure during lens swaps; redesigned gasket for improved sealing
  • New mounting bracket with increased vertical adjustability for precise beam aiming
  • 12–36V DC compatible — works with a wide range of vehicle electrical systems
  • IP69K rated — waterproof and submersible to 9 feet
  • IK10 compliant — certified for mechanical impact resistance
  • MIL-STD-810G certified — tested for low/high temperature, humidity, thermal shock, dust, vibration, and more
  • LED life expectancy: ~49,930 hours
  • Stainless steel mounting hardware for corrosion resistance

Backed by Baja Designs' 30-Day Satisfaction Guarantee and Limited Lifetime Warranty on LEDs (5-year warranty on electronics). Squadron 2.0 Sport accessories are specifically designed for the 2.0 platform and are not compatible with Squadron 1.0 accessories.

Products specifications

Prop 65

Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Description

Backlight: 9-Colors

Length (in.)

2.84”

Voltage

Operating White Light Voltage: 10–36V; Operating Backlight Voltage: 11-14V

Height (in.)

3.29”

DES

Squadron 2.0 Sport White LED Auxiliary Light Pod

EXT

Squadron 2.0 Sport White LED Auxiliary Light Pod (Wide Cornering; Baja Amber)

TLE

Squadron 2.0 Sport White LED Auxiliary Light Pod (Wide Cornering; Baja Amber)

Amperage Rating (A)

30W / 2.2A @ 13.8V

Brightness (Lumens)

3,200 lm

Depth (in.)

3.32”

Standards/Compliance (Water Resistance)

IP69K

Terminal Connector

Deutsch
