Baja Designs 49-7815-2 Squadron 2.0 Pro LED Wide Cornering Light Pods Pair - Baja Amber

Manufacturer

Part Number

49-7815-2
Black Friday Price

$497.95

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Baja Designs Squadron 2.0 Pro is the next evolution of the brand's flagship 3-inch compact LED auxiliary light pod, completely rebuilt with a modern housing, next-generation optics, and a powerful 5,921-lumen output at 65W — a 41% performance increase over the previous generation Squadron Pro. This pair is configured with the Wide Cornering lens pattern in Baja Amber, delivering a broad, low-profile horizontal beam purpose-built for cornering, dust, fog, and comfort lighting situations.

The Wide Cornering pattern produces a 42° flattened horizontal beam that maximizes near-field coverage and side illumination — ideal as a ditch light, fog light, or auxiliary cornering light on trucks, Jeeps, SUVs, UTVs, and off-road vehicles.

Key Features:

  • 5,921 lumens at 65W — 41% more output than the previous Squadron Pro generation
  • Wide Cornering beam pattern in Baja Amber — 42° flattened horizontal spread for cornering, fog, and dust conditions
  • All-new 9-color selectable RGBW backlight — toggle between red, green, blue, magenta, cyan, amber, yellow, pink, and white via the included harness
  • Updated uService® design — clip-in reflectors stay secure during lens swaps; redesigned gasket improves sealing and element protection
  • Redesigned universal adjustable mounting bracket with increased vertical adjustability for precise beam aiming
  • 4-pin Deutsch-style connector standard on all wire harnesses — weatherproof and vibration-resistant
  • IP69K rated — fully waterproof and submersible
  • MIL-STD-810G certified — tested for temperature extremes, humidity, thermal shock, dust, vibration, and mechanical impact
  • IK10 compliant — rated for mechanical impact resistance
  • Hard coated polycarbonate front lens
  • Hard anodized and powder coated cast aluminum housing with billet machined aluminum bezel
  • Stainless steel hardware and bracket material for corrosion resistance
  • Operates on 12–36V DC systems
  • Compatible with uService® lens and optic replacement system

What's Included:

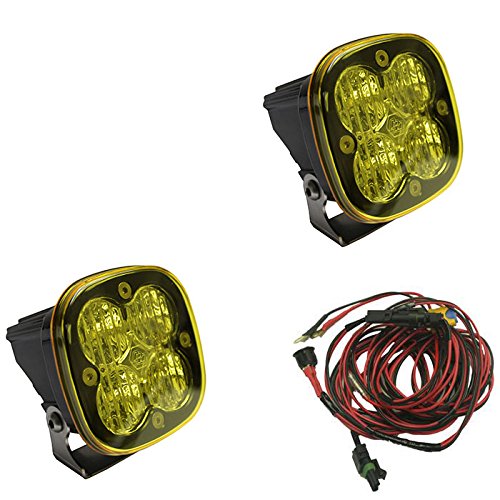

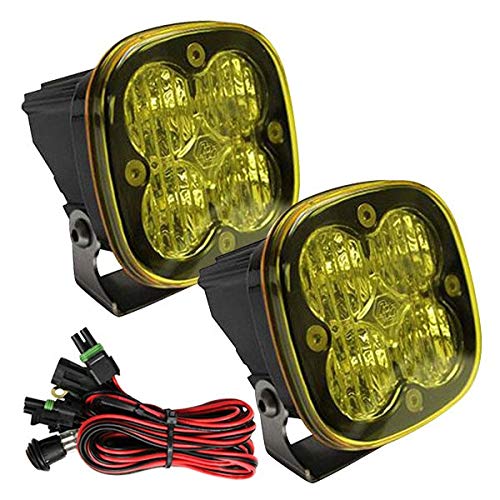

  • (2) Squadron 2.0 Pro LED Wide Cornering Lights — Baja Amber
  • (2) Universal adjustable mounting brackets
  • (1) 4-Pin Deutsch wiring harness
  • (2) Mounting hardware sets

Backed by Baja Designs' 30-Day Satisfaction Guarantee and Limited Lifetime Warranty on LEDs, with a 5-year warranty on electronics. Old part number reference: 49-7815. Note: Off-road auxiliary lights are not intended for on-road use unless specifically marked SAE/DOT compliant.

Products specifications

Prop 65

Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Description

Backlight: 9-Colors

Length (in.)

2.84”

Voltage

Operating White Light Voltage: 10–36V; Operating Backlight Voltage: 11-14V

Height (in.)

3.29”

DES

Squadron 2.0 Pro Black LED Auxiliary Light Pod Pair

EXT

Squadron 2.0 Pro Black LED Auxiliary Light Pod Pair (Wide Cornering; Baja Amber)

TLE

Squadron 2.0 Pro Black LED Auxiliary Light Pod Pair (Wide Cornering; Baja Amber)

Amperage Rating (A)

65W / 4.7A @ 13.8V*

Brightness (Lumens)

5,921 lm

Depth (in.)

3.32”

Standards/Compliance (Water Resistance)

IP69K

Terminal Connector

Deutsch
