Baja Designs 49-7813-2 Squadron 2.0 Pro Baja Amber Driving/Combo LED Light Pod Pair

Manufacturer

Part Number

49-7813-2
Black Friday Price

$497.95

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Baja Designs Squadron 2.0 Pro (Part #49-7813-2) is the next evolution of Baja Designs' most trusted compact 3-inch LED light pod. Completely redesigned from the inside out, the Squadron 2.0 Pro delivers 5,921 lumens at 65W — a 41% performance increase over the previous generation — with refined beam control, next-generation optics, and an all-new housing. This pair is configured with the Driving/Combo lens pattern in Baja Amber, engineered for maximum performance in low-visibility off-road conditions including dust, rain, fog, and snow.

The Baja Amber lens minimizes glare and enhances depth perception, making it ideal for challenging driving environments where standard clear lenses fall short. The Driving/Combo pattern blends a 42° driving arc with a 9° spot for seamless near-field to long-distance coverage — Baja Designs' Lighting Zone 3.

Key Features:

  • 5,921 lumens per light at 65W — 41% more output than the previous Squadron Pro
  • Baja Amber Driving/Combo lens — reduces glare, improves visibility in dust, rain, fog, and snow
  • 9-color selectable RGBW backlight — toggle between red, green, blue, magenta, cyan, amber, yellow, pink, and white via included harness
  • Updated uService® — secure clip-in reflectors and redesigned gasket for easy lens changes and superior sealing
  • 4-Pin Deutsch connector — weatherproof, vibration-resistant, and rated for extreme conditions
  • Redesigned adjustable mounting bracket — increased vertical adjustability for precise beam aiming
  • IP69K rated — fully waterproof and submersible to 9 ft (MoistureBlock™ technology)
  • MIL-STD810G certified — exceeds military-spec impact and environmental testing
  • IK10 compliant — certified for mechanical impact resistance
  • Hard anodized and powder-coated cast aluminum housing with billet machined aluminum bezel
  • Hard-coated polycarbonate front lens — scratch and UV resistant
  • Stainless steel hardware and bracket material for corrosion resistance
  • LED life expectancy: 49,930 hours
  • Operating voltage: 12–36V DC
  • Old part number cross-reference: 49-7813

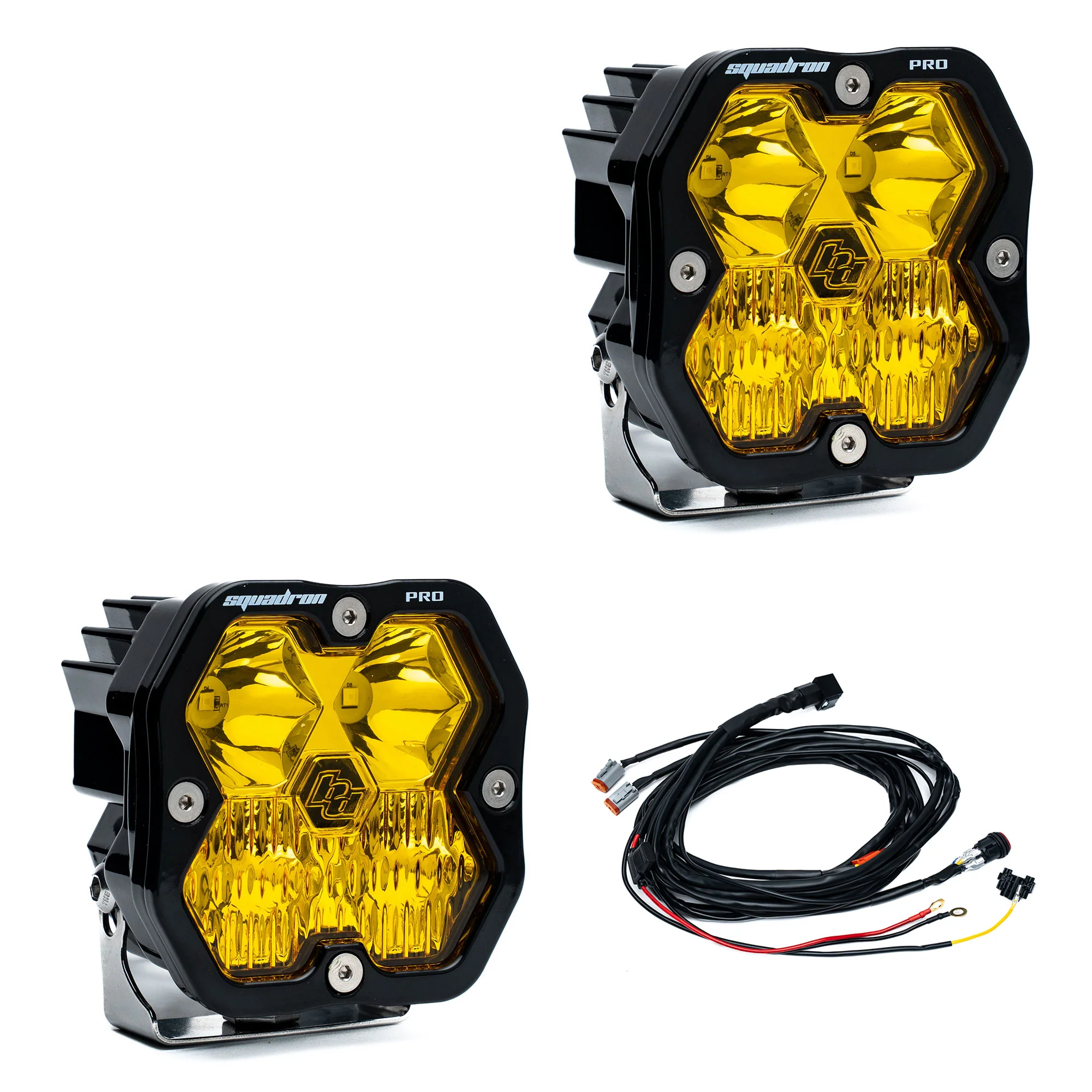

What's Included:

  • (2) Squadron 2.0 Pro LED Driving/Combo Lights — Baja Amber
  • (2) Universal Adjustable Mounting Brackets
  • (1) 4-Pin Deutsch Wiring Harness
  • (2) Mounting Hardware Sets

Backed by Baja Designs' 30-Day Satisfaction Guarantee and Limited Lifetime Warranty for complete purchase protection. Universal fitment — compatible with trucks, Jeeps, UTVs, and overlanding builds.

Products specifications

Prop 65

Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Description

Backlight: 9-Colors

Length (in.)

2.84”

Voltage

Operating White Light Voltage: 10–36V; Operating Backlight Voltage: 11-14V

Height (in.)

3.29”

DES

Squadron 2.0 Pro Black LED Auxiliary Light Pod Pair

EXT

Squadron 2.0 Pro Black LED Auxiliary Light Pod Pair (Driving/Combo; Baja Amber)

TLE

Squadron 2.0 Pro Black LED Auxiliary Light Pod Pair (Driving/Combo; Baja Amber)

Amperage Rating (A)

65W / 4.7A @ 13.8V*

Brightness (Lumens)

5,921 lm

Depth (in.)

3.32”

Standards/Compliance (Water Resistance)

IP69K

Terminal Connector

Deutsch
