Baja Designs 49-7805-2 Squadron Pro LED Wide Cornering Light Pod - 2.0 Pair

Manufacturer

Part Number

49-7805-2
Black Friday Price

$487.95

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

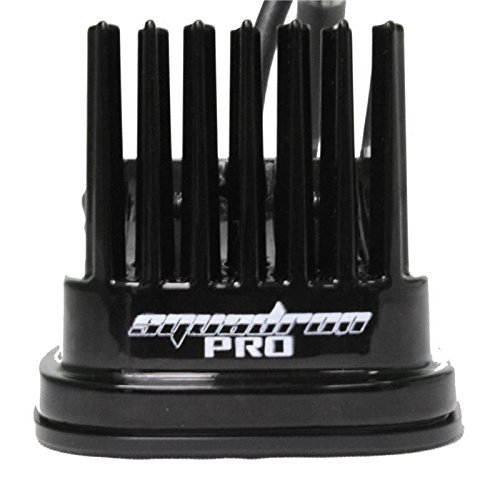

The Baja Designs Squadron 2.0 Pro (49-7805-2) is a next-generation 3-inch LED auxiliary light pod pair built for off-road enthusiasts who demand maximum visibility. Completely redesigned from the ground up, the Squadron 2.0 Pro delivers 5,921 lumens at 65W per light — a 41% performance increase over the original Squadron Pro — with improved beam control, higher efficiency, and a refined Wide Cornering pattern that puts more usable light exactly where you need it.

The Wide Cornering lens pattern features a 42° flattened horizontal beam developed specifically for cornering, dust, and fog conditions, making it ideal for near-field illumination on tight trails and low-visibility terrain. This pair is sold complete with wiring harness and universal mounting hardware for a straightforward installation.

Key Features:

  • 5,921 raw lumens at 65W per light — 41% brighter than the previous generation Squadron Pro
  • Wide Cornering 42° beam pattern optimized for cornering, dust, and fog conditions
  • All-new 9-color selectable RGBW backlight (red, green, blue, magenta, cyan, amber, yellow, pink, white)
  • Color settings retained when the light is powered off
  • Modern gloss black hard-anodized and powder-coated cast aluminum housing
  • Rugged 4-pin Deutsch connector for enhanced durability and weatherproofing
  • Improved uService® system with secure clip-in reflectors for tool-friendly lens swaps
  • Redesigned gasket for superior long-term element protection

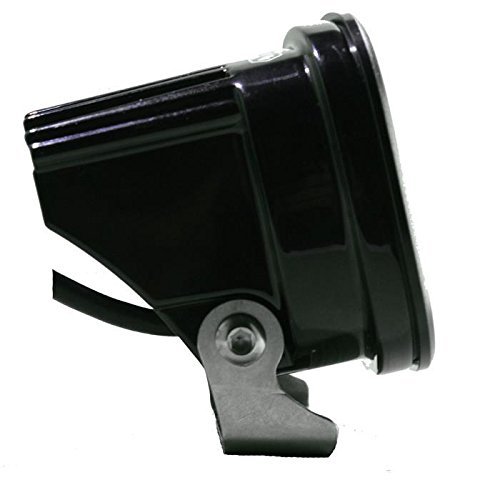

  • New adjustable mounting bracket with increased vertical adjustability for precise aiming
  • IP69K rated — waterproof and submersible
  • IK10 compliant mechanical impact tested
  • Exceeds MIL-STD-810G mil-spec testing standards
  • Built-in overvoltage protection
  • Universal fitment

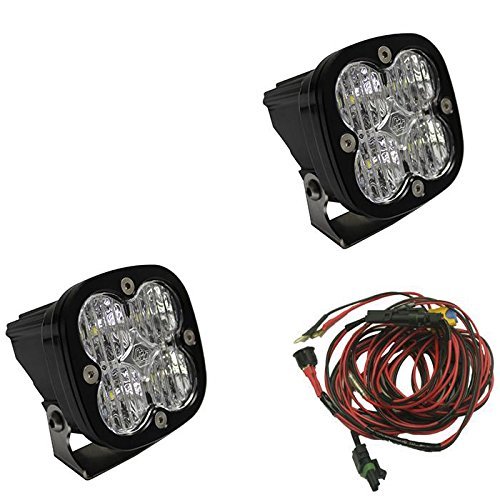

What's Included:

  • (2) Baja Designs Squadron 2.0 Pro LED Wide Cornering Lights
  • (2) Universal adjustable mounting brackets
  • (1) 4-Pin Deutsch wiring harness
  • (2) Mounting hardware sets

Backed by Baja Designs' 30-Day Satisfaction Guarantee and a Limited Lifetime Warranty on LEDs, with a 5-year warranty on electronics. Off-road auxiliary lights are not intended for on-road use unless specifically marked SAE/DOT compliant. Replaces legacy part number 49-7805.

Products specifications

Prop 65

Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Description

Backlight: 9-Colors

Length (in.)

2.84”

Voltage

Operating White Light Voltage: 10–36V; Operating Backlight Voltage: 11-14V

Height (in.)

3.29”

DES

Squadron 2.0 Pro Black LED Auxiliary Light Pod Pair

EXT

Squadron 2.0 Pro Black LED Auxiliary Light Pod Pair (Wide Cornering; Clear)

TLE

Squadron 2.0 Pro Black LED Auxiliary Light Pod Pair (Wide Cornering; Clear)

Amperage Rating (A)

65W / 4.7A @ 13.8V*

Brightness (Lumens)

5,921 lm

Depth (in.)

3.32”

Standards/Compliance (Water Resistance)

IP69K

Terminal Connector

Deutsch
