June Sale: $311.68
In Stock
May ship from manufacturer
Free Shipping
Part number: K120A4
Competitor Pricing
Product Details

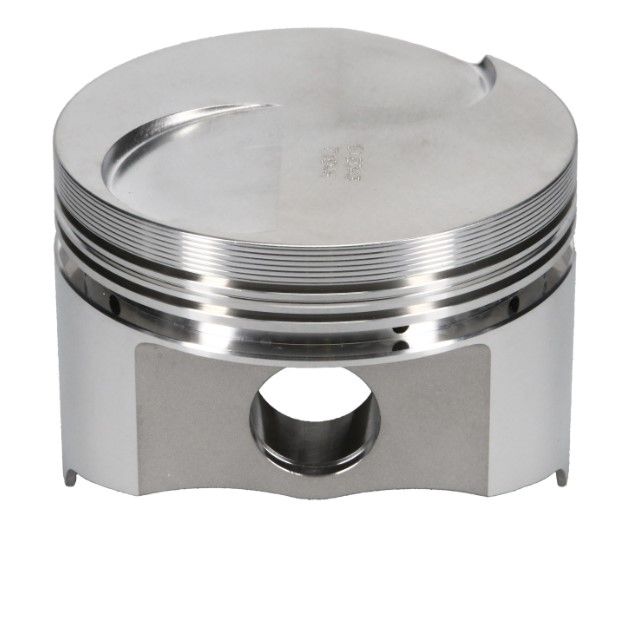

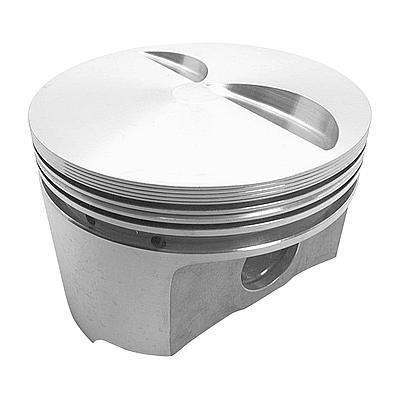

Wiseco Pistons K120A4 in our Pistons Department
Products specifications
Bore 3.82
Bore (in) 3.820 in.
Bore (mm) 97.028mm
Comp Height 1.59
Comp Ratio TBA
Compression Distance (in) 1.590 in.
Dome Volume -3.4
Gram Weight 410
Notes Slipper type skirt design.
Pin Diameter (in) 0.912 in.
Piston Head Volume (cc) +3.40cc
Piston Material Forged aluminum
Piston Ring Thickness 1/16 in. x 1/16 in. x 3/16 in.
Piston Style Flat top, with two valve reliefs
Quantity Sold as a set of 4.
Rod 5.205
Stroke 3.126
Wrist Pin Style Press-fit or floating
Wiseco Pistons K120A4 2618 Alloy Forged Pistons
340/360 Nitrous Dome
Fits 4.000 Stroke
Set of 4 Pistons
Recommended RingSet: 3820A (x4)
Rings Sold Separate
Includes Pins: S489
Slipper Skirt
Must use w/ K1 Rod

World renowned for their work building race winning pistons, Wiseco utilizes experience from a diverse background of the most sophisticated engines in such venues as Formula 1, Indy Racing League (IRL), NHRA Pro Stock, Moto GP, AMA Superbike, AMA Motocross and Supercross to design and manufacture the highest technology pistons available.

Features

  • Valve Pocket designs that allow maximum flow around valve, also allowing oversized valves and high lift cams to be utilized.
  • Piston Crown shapes designed to promote maximum Intake Charge efficiency through scavenging mixture ?Cross Flow? during intake and
    exhaust valve overlap. More fuel and air equals more horsepower!
  • Piston Domes designed for optimal quench during the compression/ combustion cycle, resulting in resistance to detonation and preignition.
    The end result is longer engine life and increased horsepower potential.
  • Precision machined ring grooves with proper orifice/accumulator volume feature calculated groove root diameters and axial widths, providing
    excellent surface finish and flatness, maximum ring seal and minimized blow-by and oil consumption.
  • World class, ISO Certified, forging facility that utilizes the latest technologies ? Featuring complex forged shapes, advanced materials, and feature-aligned grain flow technology.
  • Complex Piston skirt profiles that reduce power robbing friction, yet promote stability in the bore for optimum ring seal.

ArmorGlide Skirt Coating
Wiseco?s new ArmorGlide skirt coating is the result of testing, development, and benchmarking through our in-house dyno program. The outcome ? minimized friction, maximum horsepower, and improved wear resistance.

Not only is ArmorGlide a high-tech lubricant that reduces friction, but it also allows the piston to be fitted tighter within the bore than a non-coated piston. Better ring seal reduces noise from piston rock. ArmorGlide is being applied to selected pistons.

Reviews
Add your review
J
Autoplicity was great, I ordered my springs late Monday night and I received a shipment order confirmation number early Wednesday. So basically 1 business day and my order was out the door, pretty impressive. Can't wait 'till it gets here! Thanks Autoplicity!
E
sounds too inexpensive, but hey you only live once...
R
Super easy site to use will come back too.
A
Great prices on a lot of good stuff, shipping isn't what's listed in price comparison, but competitive.
Show All Reviews
Fitment
Ford Mustang
1986 Ford Mustang ALL
1985 Ford Mustang ALL
1984 Ford Mustang ALL
1983 Ford Mustang ALL
1982 Ford Mustang ALL
1981 Ford Mustang ALL
1980 Ford Mustang ALL
1979 Ford Mustang ALL
Mercury Capri XR2
1984 Mercury Capri XR2 ALL
1983 Mercury Capri XR2 ALL
1982 Mercury Capri XR2 ALL
1981 Mercury Capri XR2 ALL
1980 Mercury Capri XR2 ALL
1979 Mercury Capri XR2 ALL
Merkur XR4Ti
1989 Merkur XR4Ti ALL
1988 Merkur XR4Ti ALL
1987 Merkur XR4Ti ALL
1986 Merkur XR4Ti ALL
1985 Merkur XR4Ti ALL
