Turbosmart TS-1-7170B-D4118E TS-1 Performance Turbocharger 7170 D4 1.18AR Externally Wastegated

Manufacturer

Part Number

TS-1-7170B-D4118E
Black Friday Price

$2,762.09

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

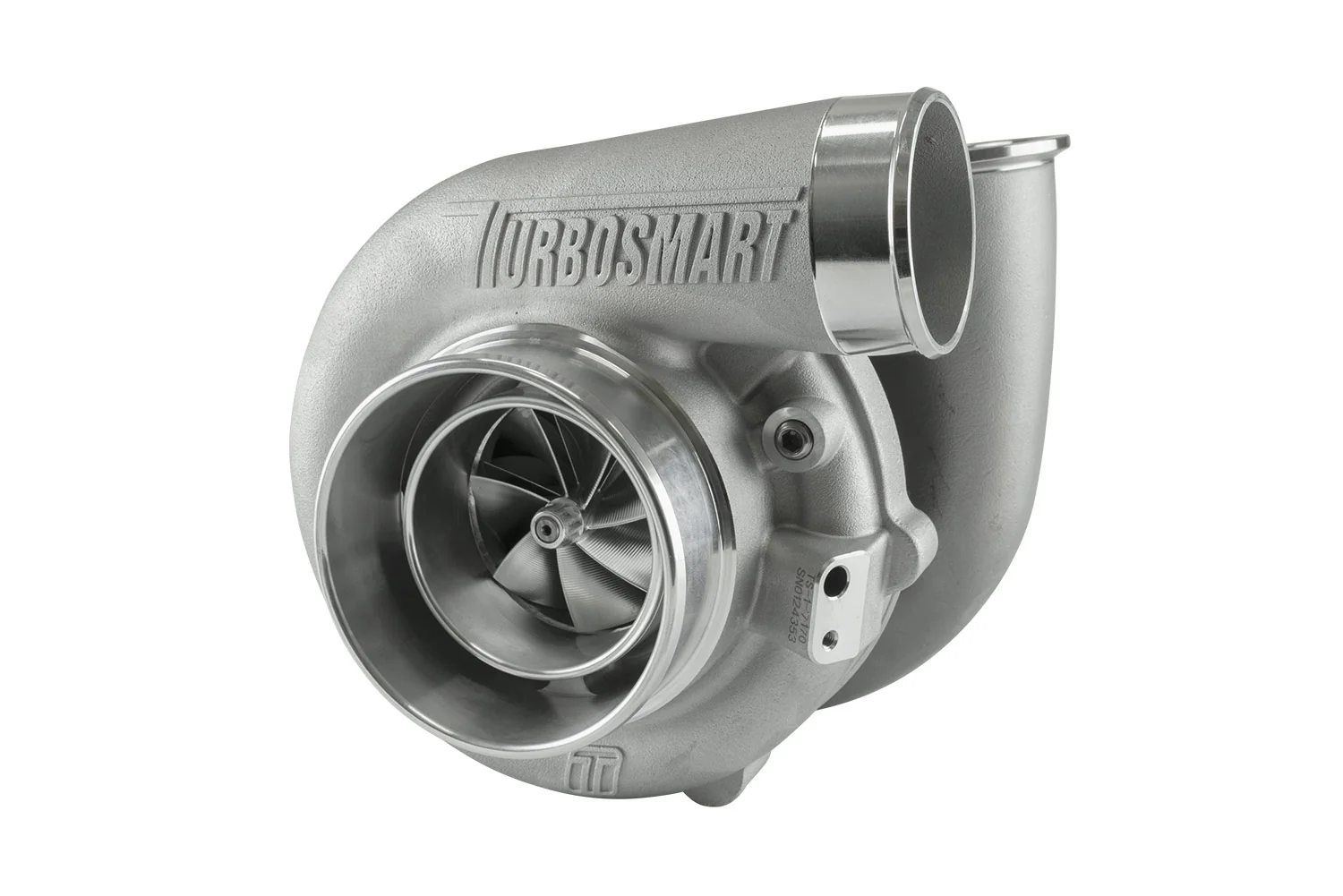

The Turbosmart TS-1-7170B-D4118E is a high-performance, oil-cooled turbocharger from the Turbosmart TS-1 series, featuring a 71mm compressor inducer, a divided T4 (D4) turbine inlet flange, and a 1.18 A/R turbine housing in an externally wastegated configuration. Engineered for both serious motorsport competitors and performance enthusiasts, this turbocharger is rated for approximately 875–1,010 horsepower and delivers exceptional transient response and top-end power.

The TS-1 series was built from the ground up using modern materials, aerodynamic design, and precision manufacturing. The result is a turbocharger that is smaller and lighter than comparable units without sacrificing output or durability. The externally wastegated design gives tuners precise boost control, while the larger 1.18 A/R turbine housing is optimized for high-RPM power and maximum airflow at elevated loads.

Key Features:

  • 7+7 split 2618 aluminum compressor wheel — aggressive aerodynamics for high performance at lower shaft speeds
  • 713C Inconel turbine wheel — engineered to withstand extreme exhaust gas temperatures (EGTs)
  • Lightweight 310S stainless steel investment cast turbine housing — reduces rotating mass for faster spool
  • Lightweight aluminum compressor cover — CFD-optimized housing design for ideal A/R and flow
  • Proprietary dual ceramic bearing system — VSR speed balanced for long-term reliability and precise shaft control
  • Integrated iron backplate on center housing for added structural rigidity
  • Divided T4 (D4) turbine inlet flange with 1.18 A/R — ideal for divided exhaust manifold applications and top-end power builds
  • Externally wastegated — pairs with an external wastegate for precise boost management
  • Compressor Inlet: 4.0 in / 101.6mm
  • Compressor Inducer: 71mm
  • Turbine Exducer: 70mm
  • Turbine Outlet: V-Band (3.00 in)
  • Horsepower Rating: 875–1,010 HP

What's Included:

  • Turbocharger assembly
  • Weld flanges
  • V-band clamps
  • Gaskets
  • Oil feed and drain fittings

The Turbosmart TS-1-7170B-D4118E is a purpose-built performance turbocharger that delivers uncompromising power, reliability, and installation-ready convenience right out of the box.
