Turbosmart TS-1-6262B-VB082E-MT Mirror Twin Turbo Package V-Band Oil Cooled Turbocharger Kit - 0.82AR

Manufacturer

Part Number

TS-1-6262B-VB082E-MT
Black Friday Price

$4,357.79

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

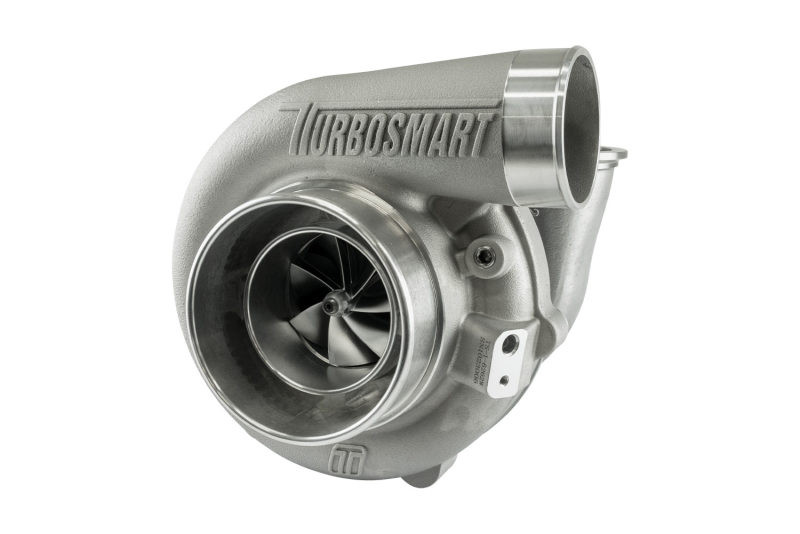

The Turbosmart TS-1-6262B-VB082E-MT is a matched mirror twin turbocharger package built for high-performance and motorsport applications. This kit includes one standard-rotation and one reverse-rotation TS-1 6262 oil-cooled turbocharger, engineered to work in perfect symmetry for twin-turbo setups on V-engine layouts and symmetrical dual-mount configurations. Combined, the pair is rated at 1,520–1,760HP, making this package a serious choice for purpose-built performance builds.

The TS-1 series leverages modern materials, CFD-driven housing design, and advanced manufacturing techniques to deliver outstanding transient response alongside exceptional power capability. Each turbocharger features a 62mm compressor inducer, 62mm turbine exducer, and a 0.82 A/R turbine housing with V-Band inlet and outlet connections. The lightweight 310S stainless steel investment cast turbine housings and aluminum compressor covers keep rotating mass to a minimum, while the 713C Inconel turbine wheel handles extreme exhaust gas temperatures with ease. The proprietary dual ceramic bearing system and VSR speed-balanced assembly further contribute to razor-sharp spool-up and long-term reliability.

Key Features:

  • Mirror twin package: one standard-rotation + one reverse-rotation TS-1-6262B turbocharger
  • Horsepower rating: 760–880HP per turbo (1,520–1,760HP combined)
  • Oil-cooled center housing with integrated iron backplate
  • 7+7 2618 aluminum splitter compressor wheels with aggressive aerodynamics
  • 713C Inconel turbine wheel for extreme EGT tolerance
  • Lightweight 310S stainless steel investment cast turbine housings
  • CFD-designed housings for optimized A/R and airflow
  • Proprietary dual ceramic bearing system
  • VSR speed balanced for precision and longevity
  • V-Band turbine inlet (2.25″) and V-Band turbine outlet (3.00″)
  • Compressor inlet: 4″ / 101.6mm

Specifications (per turbo):

  • Compressor Inlet: 4″ / 101.6mm
  • Compressor Inducer: 62mm
  • Turbine Inlet: V-Band (2.25″)
  • Turbine Exducer: 62mm
  • Turbine A/R: 0.82
  • Turbine Outlet: V-Band (3.00″)
  • Weight: 6.06 kg / 13.3 lbs (each)

What's Included (per turbocharger):

  • 1x Turbosmart TS-1-6262B turbocharger (standard rotation)
  • 1x Turbosmart TS-1-6262B turbocharger (reverse rotation)
  • Weld flanges (turbine inlet and outlet)
  • V-Band clamps (turbine inlet and outlet)
  • Oil drain gasket
  • Oil feed and drain fittings

Designed to meet the demands of both dedicated motorsport competitors and serious performance enthusiasts, the TS-1-6262B-VB082E-MT mirror twin package delivers everything needed for a complete, symmetrical twin-turbo installation right out of the box.
