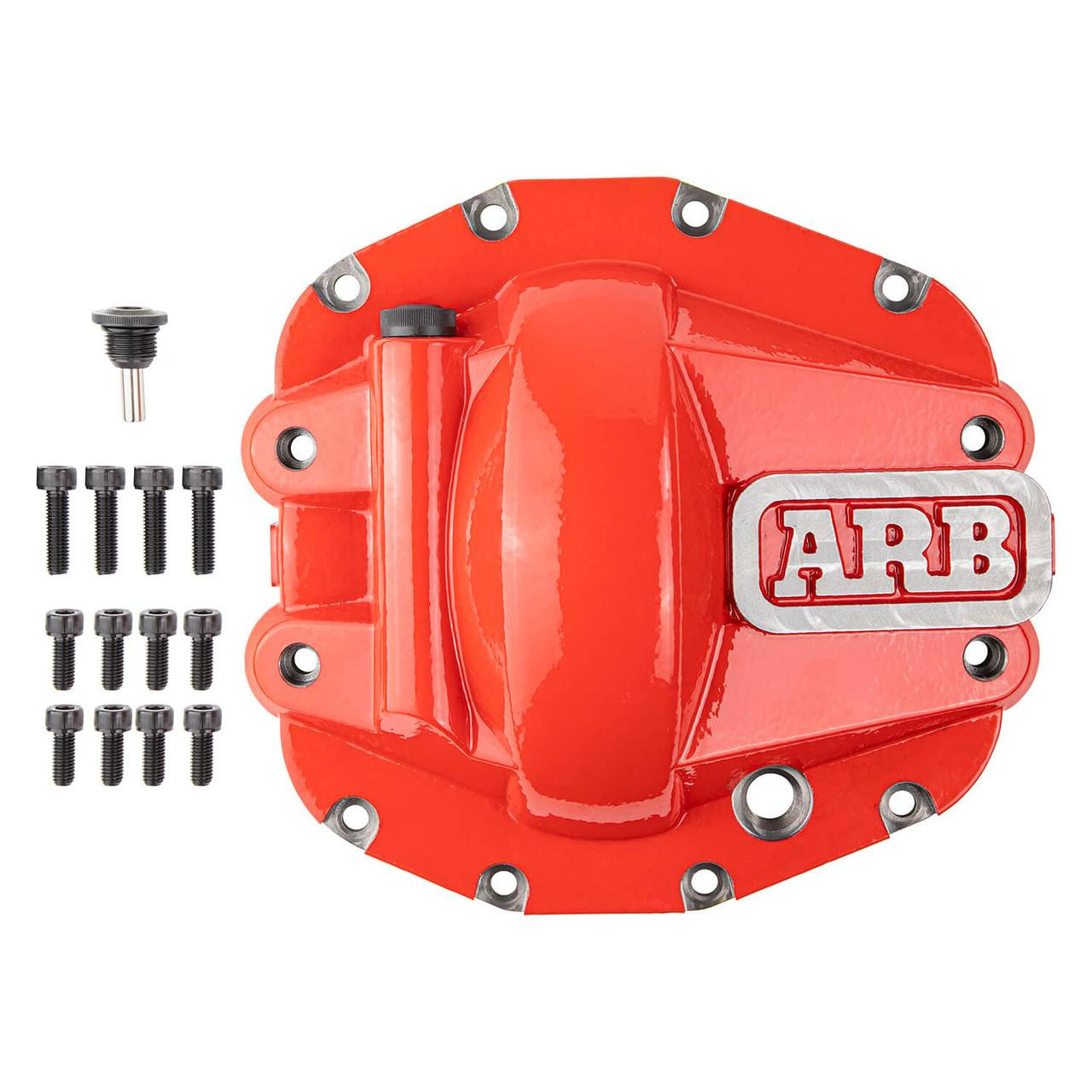

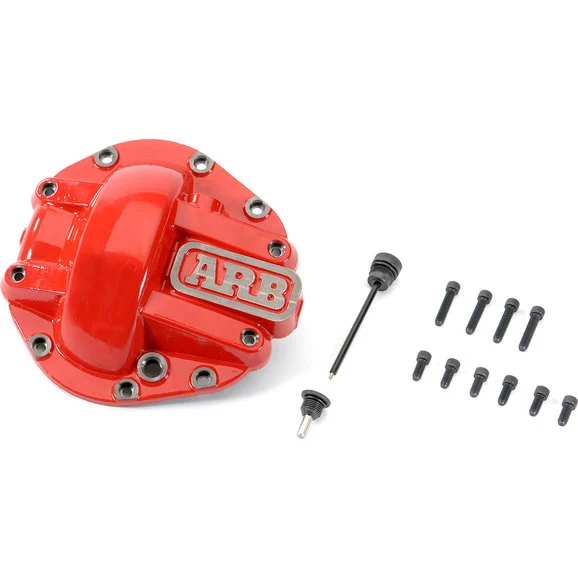

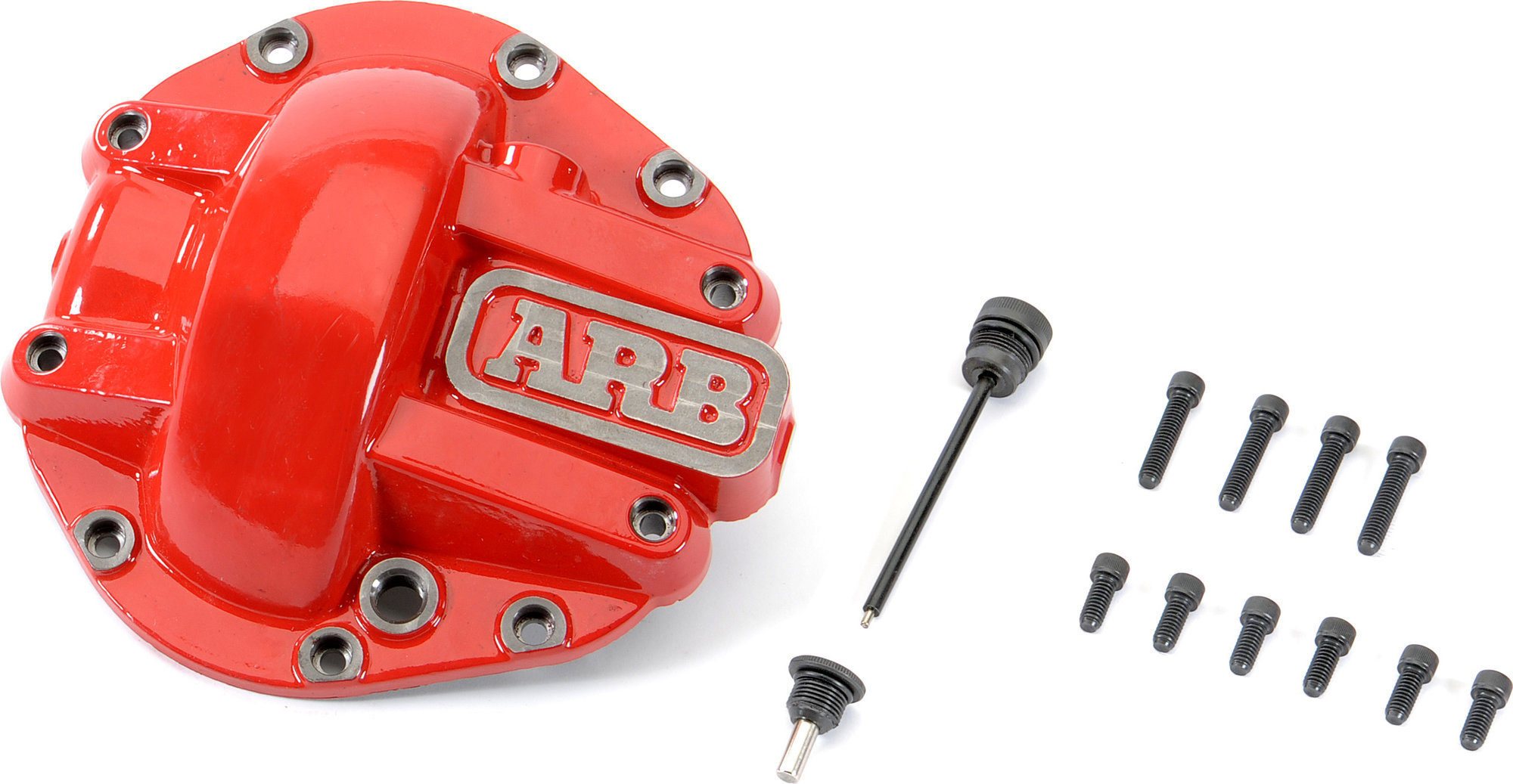

ARB 750011 M210 Front Differential Cover Red Dana 44 JL Rubicon

The ARB 750011 is a heavy-duty front differential cover engineered specifically for the Dana M210 (AdvanTEK) front axle found on Jeep Wrangler JL and Gladiator JT Rubicon models. Built to withstand the rigors of serious off-road use and competition, this cover delivers significantly greater protection than the factory unit — safeguarding your differential, ring gear, and pinion set against trail hazards and rock impacts.

Key Features:

• High-tensile nodular iron construction — harder and stronger than carbon steel for maximum impact resistance
• CNC machined and powder coated — finished with a durable red powder coat and clear coat for long-lasting corrosion protection
• Computer-optimized cross-brace design — adds over 1,300 Nm/deg (960 ft-lbs) of torsional rigidity to the entire axle assembly
• Approach/departure angle optimized — angled exterior and low-profile design improve ground clearance and reduce trail snagging
• Dual neodymium rare-earth magnets — integrated into both the drain plug and dipstick end to capture metallic wear particles and protect internal components
• Integrated dipstick/filler cap — allows gear oil level to be checked and adjusted for high driveline angles without removing the cover or draining the oil
• Low-profile recessed drain plug — resists damage from obstacles; mounting bolts are also recessed to prevent hang-ups on the trail
• All hardware included — hardened and plated cap screws are recessed for protection against obstacles
• Prolonged carrier bearing life — extra support improves bearing alignment and keeps ring and pinion gears meshing correctly under load
• Compatible with ARB Air Locker — engineered to work alongside ARB's Air Locker differential locking system

Finished in ARB's signature red with the ARB logo, the 750011 is a direct bolt-on replacement that installs in approximately one hour. Note: These covers will not clear the track bar on stock-height applications; a suspension lift is recommended. Some applications may require minor modification to clear the ring gear.
