Diode Dynamics DD8520 4Runner DEK 7-Pod SS5 Sport CrossLink LED Roof Rack White Driving

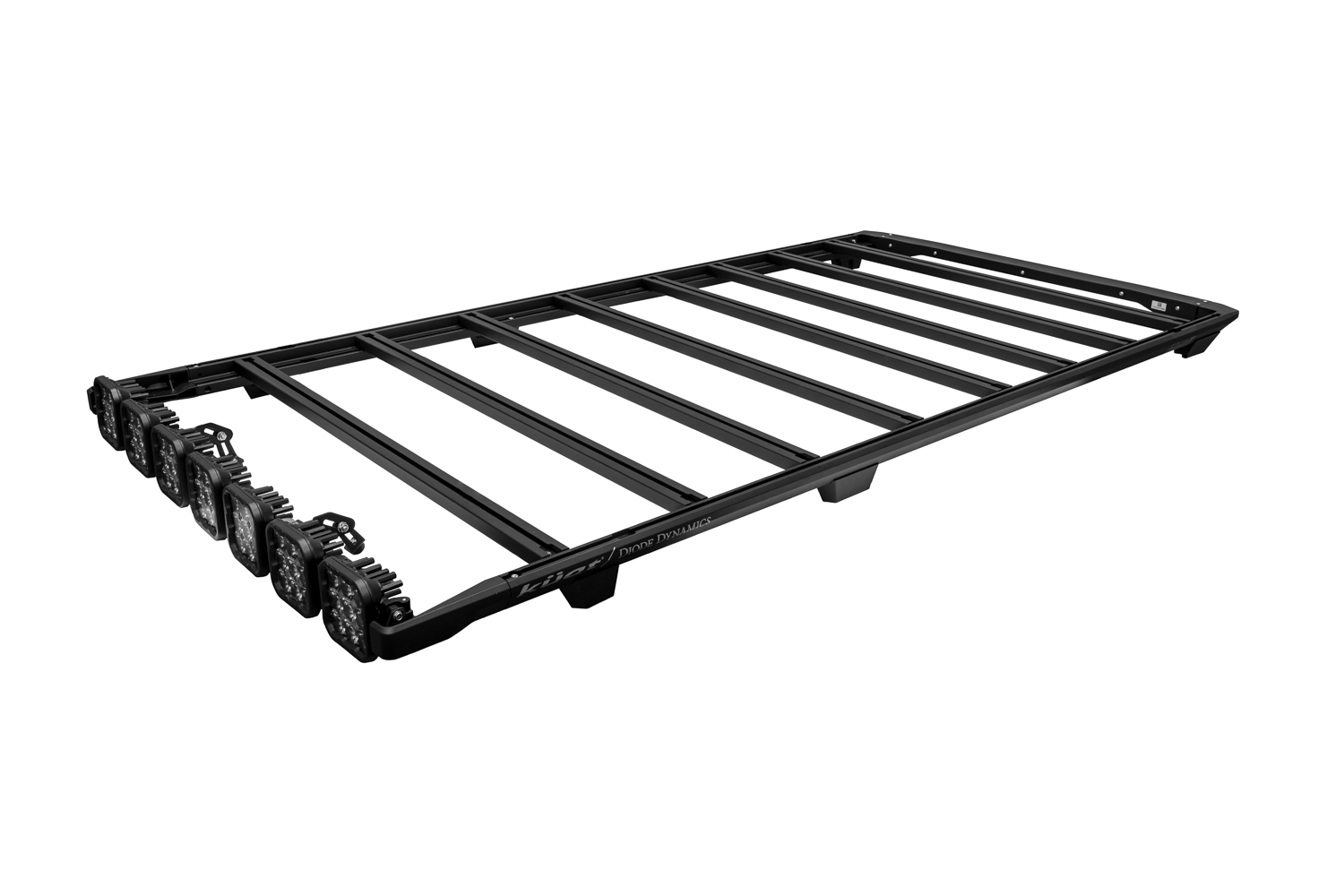

The Diode Dynamics x Kuat DEK Roof Rack with 7-Pod SS5 Sport CrossLink LED Lightbar is a purpose-built, integrated roof rack and lighting system designed for Toyota 4Runner owners who demand both form and function. Custom-fabricated to seamlessly blend LED lighting directly into the rack structure, this kit delivers a clean, OEM-style appearance that stands apart from bolt-on aftermarket solutions.

Adventure-Ready Construction

Built from durable, all-metal construction, the DEK roof rack offers a modular, low-profile design without sacrificing capability. Adjustable crossbars accommodate antennas and sunroofs, while generously sized T-channels provide flexible mounting positions for gear, accessories, and overlanding equipment. Installation requires no drilling and supports up to 300 lbs of rooftop load capacity.

7-Pod SS5 Sport CrossLink LED Lightbar

This configuration uses Diode Dynamics' patent-pending CrossLink technology to link seven SS5 Sport LED pods into a single aggressive-looking lightbar. Each pod uses nine high-intensity LEDs producing 40 watts per pod with a cool white 6000K color temperature that matches factory LED lighting. The Driving beam pattern shines in a 30x20 degree spread, providing focused reach and width for high-speed trail and road use without excessive foreground glare.

Engineered TIR Optics

Unlike traditional reflector-based designs, each SS5 pod uses custom-engineered TIR (Total Internal Reflection) optics that capture and direct nearly all available light output precisely on target — drastically reducing wasted light and glare while maximizing efficiency and intensity.

Fully Illuminated Backlight

When the main beam is switched off, the SS5 pods' backlight fully illuminates the TIR optic, creating a distinctive accent appearance unique to the Stage Series platform. The White/Driving configuration features a selectable multicolor backlight with eight color options — easily cycled by alternating the main beam power with no controller or additional programming required.

Snap-On Covers Available

Optional snap-on covers are available for the SS5 pods for states that require them, or for added protection from dirt, dust, and trail debris. Covers are offered in multiple colors.

Proven Reliability

All Stage Series LED lighting is tested for long-term operation from -40°F to 185°F and validated through vibration, moisture intrusion, and corrosion testing — all completed to SAE standards. Backed by Diode Dynamics' Limited Lifetime Warranty and assembled in the USA.

What's Included:

• Kuat DEK roof rack with integrated SS5 CrossLink mounting
• Seven (7) SS5 Sport LED pods linked via CrossLink lightbar
• White Driving beam optic (6000K)
• Wiring pigtail with DT-style Deutsch connectors
• All required hardware for direct-mount installation — no drilling required
