Wilwood 140-18162-R AERO4 Rear Big Brake Kit 14.00" Rotor 6-Lug Red Calipers Disc/Drum

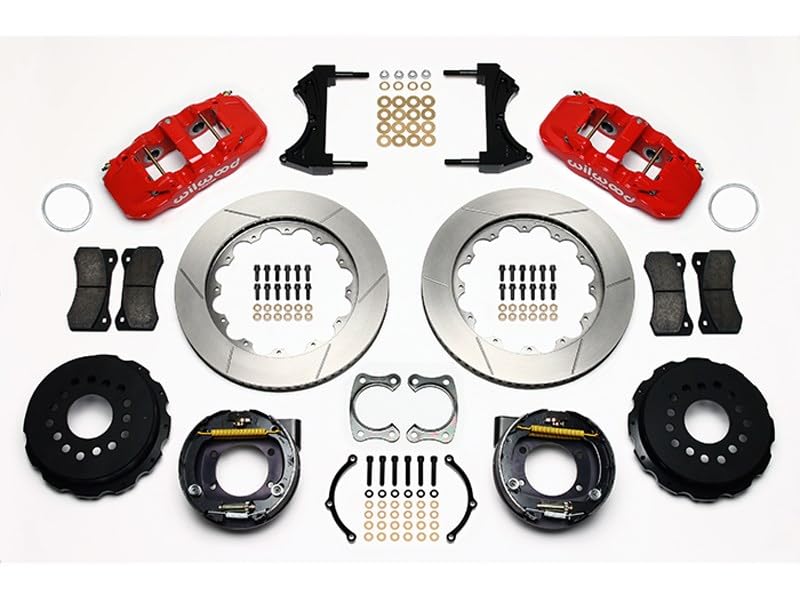

The Wilwood 140-18162-R is an AERO4 Rear Big Brake Kit designed as a high-performance disc brake upgrade featuring a 14.00" two-piece rotor, forged AERO4 four-piston radial mount calipers in red, and high-friction BP-10 compound brake pads. This kit integrates a hidden internal drum-style parking brake shoe system, retaining OE parking brake function while delivering a clean, professional installation.

Engineered to pair with front big brake upgrades, the 140-18162-R is matched to OE master cylinder output, ABS system function, and individual vehicle brake bias requirements — ensuring balanced, predictable stopping performance without additional system modifications.

Kit Features:

• Forged AERO4 four-piston calipers in red anodized finish for high clamping force and aggressive style
• Oversized 14.00" two-piece rotors for maximum heat dissipation and braking capacity
• BP-10 high-friction compound brake pads optimized for street and performance driving
• Integrated internal parking brake shoe system for superior static holding power with a clean appearance
• 6-lug bolt pattern configuration
• Disc/drum hybrid design — retains OE parking brake assembly for compliant, functional parking brake operation
• Compatible with OE master cylinder and ABS systems — no additional system modifications required

This kit is ideal for custom builds, restomod projects, and performance street machines looking to complement big wheel, tire, and suspension upgrades with proportionally upgraded stopping power. Note: Wilwood Flexline brake lines are required to complete installation and must be ordered separately.
