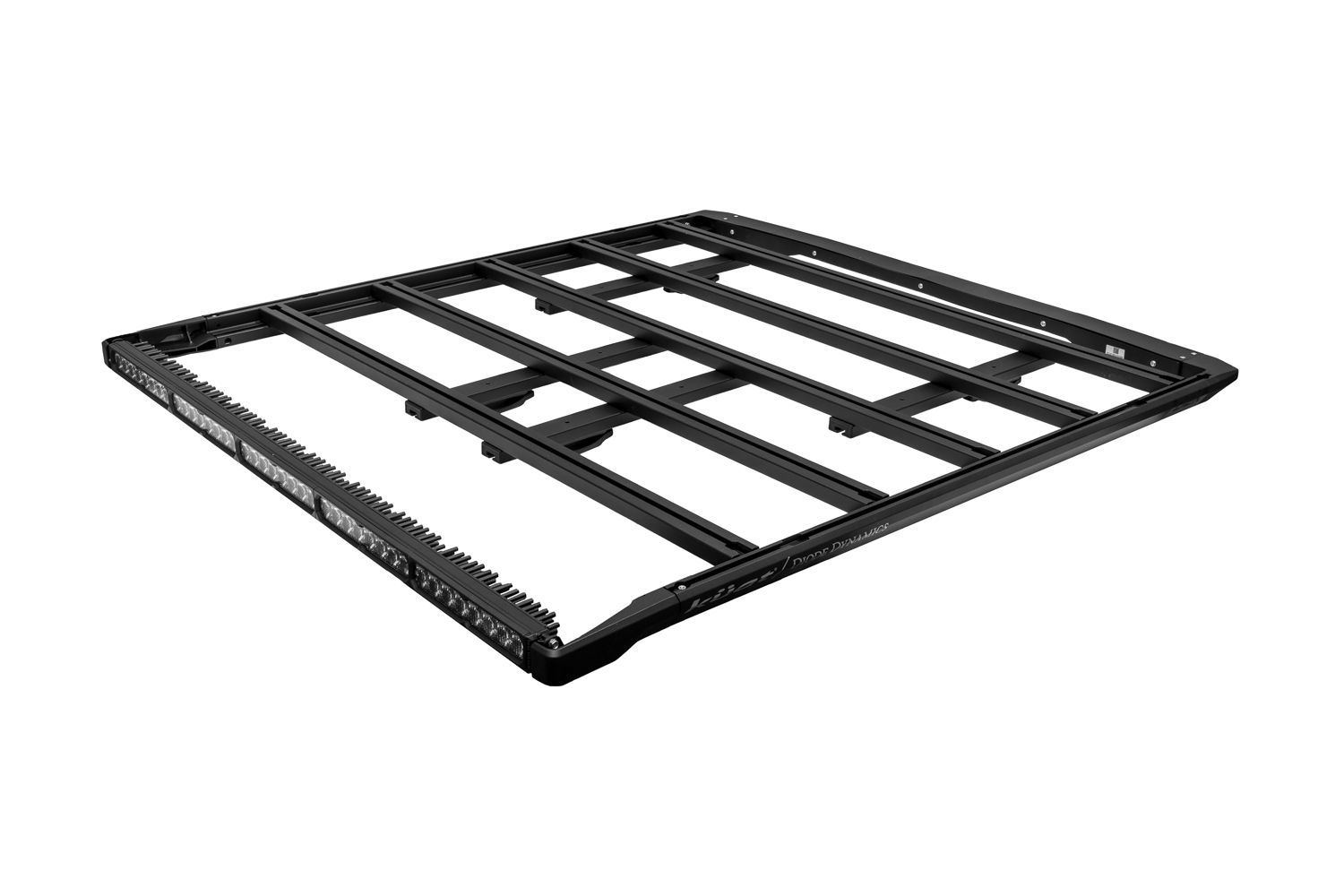

The Diode Dynamics x Kuat DEK Universal Roof Rack (DD8506) combines a modular, low-profile cargo platform with a fully integrated SS50 Pro White LED light bar in a Combo beam pattern. Custom-fabricated through a collaboration between Diode Dynamics and Kuat, the DEK is designed to deliver a clean, OEM-style appearance with adventure-ready performance in a single system.
Adventure-Ready Construction
The DEK features a durable all-metal, lightweight frame with adjustable crossbars that can clear antennas and sunroofs. Ample T-channels run the length of the rack for easy gear mounting, and the system supports a 300 lb dynamic and 1,000 lb static weight capacity. Five available frame sizes allow the DEK platform to accommodate a wide range of vehicle rooftop dimensions.
Integrated SS50 Pro Stage Series LED Light Bar
This configuration includes the SS50 Stage Series LED light bar in a Pro power level with a White Combo beam pattern. The SS50 is engineered from the ground up using the latest optical, thermal, and circuit board technologies, and features patented TIR optics that capture and focus virtually all emitted light — eliminating glare and wasted output. The Combo beam pattern blends long-range throw with wide foreground coverage in a single, balanced 60×30-degree output, making it ideal for real-world off-road and overland use.
Pro Power Level
The Pro power level delivers a significant boost in raw output over the Sport variant. Both levels use high-intensity automotive-grade LED emitters and TIR optics, but the Pro steps up intensity for demanding trail and overland applications.
White 6000K Output with Backlight
The White configuration produces a 6000K cool white color temperature that closely matches most factory LED lighting. When the main beam is off, the integrated backlight fully illuminates the TIR optic, providing a distinctive accent lighting effect not found on conventional LED light bars.
Key Features:
- Diode Dynamics x Kuat DEK Universal roof rack — 54" wide x 60" long frame
- Integrated SS50 Pro Stage Series LED light bar — White, Combo beam pattern
- Patented TIR optics for maximum efficiency and zero wasted light
- Durable all-metal, lightweight construction with ASTM-standard powdercoat finish
- Adjustable crossbars to clear antennas and sunroofs
- Adjustable T-channels for modular gear mounting
- 300 lb dynamic / 1,000 lb static load capacity
- IP69K waterproof rating on SS50 light bar
- Fully illuminated TIR backlight for accent lighting
- Limited Lifetime Warranty
- Made in USA with global materials
