The Zone Offroad F144F is a complete 5-inch radius arm drop suspension lift kit engineered specifically for 2023 Ford F-250 and F-350 Super Duty 4WD diesel trucks. This comprehensive kit delivers aggressive lift height while maintaining proper suspension geometry, steering angles, and a factory-like ride quality on and off the road.
The front lift is achieved through diesel-specific, full-length coil springs paired with radius arm drop brackets that correct caster alignment and preserve factory suspension geometry at the new ride height. A forged pitman arm and track bar relocation bracket correct steering angles and re-center the front axle, while bump stop, sway bar, and brake line relocations maintain safe, factory-like operating angles throughout the suspension travel.
The rear of the truck is raised 3 inches via a fabricated rear lift block kit complete with new U-bolts, leveling the stance and eliminating any nose-down rake. Front and rear FOX 2.0 Adventure Series shocks are included, providing FOX's proven damping technology for a comfortable on-road ride and predictable off-road handling. The monotube design uses an internal floating piston (IFP) to separate shock oil from the high-pressure nitrogen charge for consistent performance.
Key Features:
- 5-inch front suspension lift via diesel-specific full-length coil springs
- Radius arm drop brackets to correct caster and maintain suspension geometry
- 3-inch rear lift via fabricated block kit with new U-bolts
- FOX 2.0 Adventure Series shocks included front and rear
- Forged pitman arm and track bar relocation bracket for proper steering geometry
- Bump stop, sway bar, and brake line relocation hardware included
- Allows fitment of up to 37-inch tires
- Backed by Zone Offroad's Factory Protection Plus warranty: 5-year/60,000-mile drivetrain coverage plus limited lifetime warranty

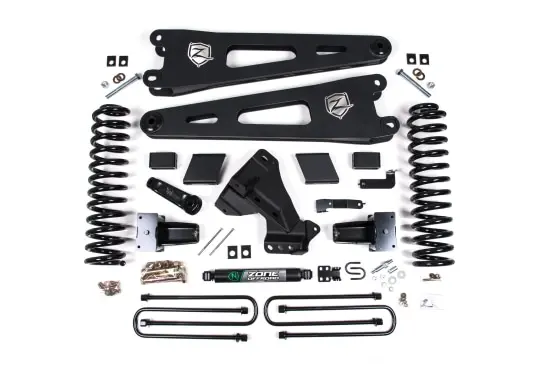

The F144F kit includes all hardware required for a complete installation. As with all Zone lift kits, it is backed by Factory Protection Plus — Zone Offroad's comprehensive extended warranty program providing 5-year, 60,000-mile drivetrain protection and a limited lifetime warranty on kit components.
