RADIUM Engineering 20-1433 Fuel Rails for Ford Coyote and Voodoo V8 Engines

RADIUM Engineering fuel rails are manufactured with a large internal bore to support high horsepower engine requirements and are CNC machined from solid 6061 aluminum with black anodized and laser etched finish for exceptional quality and durability. These fuel rails are designed for OEM injector fitment and feature 8AN ORB ports, making them compatible with all Ford V8 Coyote variants including 2018 and newer models.

Key Features:

• Large 0.69-inch internal diameter bore for high-flow fuel delivery
• End ports tapped with 3/4-16 female threads (-8AN ORB)
• Upper center ports tapped with 1/8 inch NPT female threads for optional gauges or sensors
• Lower center ports tapped with 3/8 inch NPT female threads for optional fuel pulse dampers or adapter fittings
• Compatible with factory or OEM equivalent fuel injectors
• Compatible with all fuel types including E85 alcohol mixtures

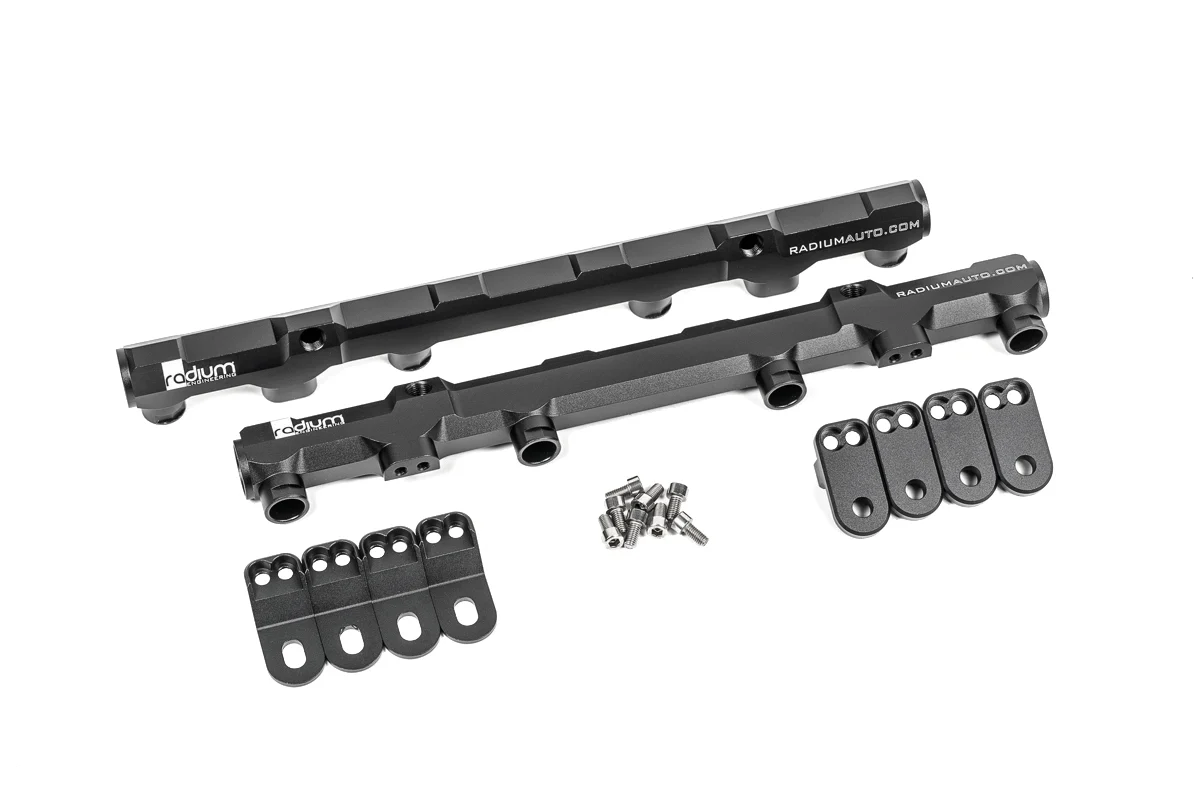

The kit includes two black anodized laser etched aluminum fuel rails, and OEM mounting hardware is reused for installation. For 2018-2023 Ford Coyote and Shelby GT350 Voodoo engines, RADIUM part number 14-0359 is required to adapt the OEM fuel sensor to the 1/8 inch NPT fuel rail port fitting.
