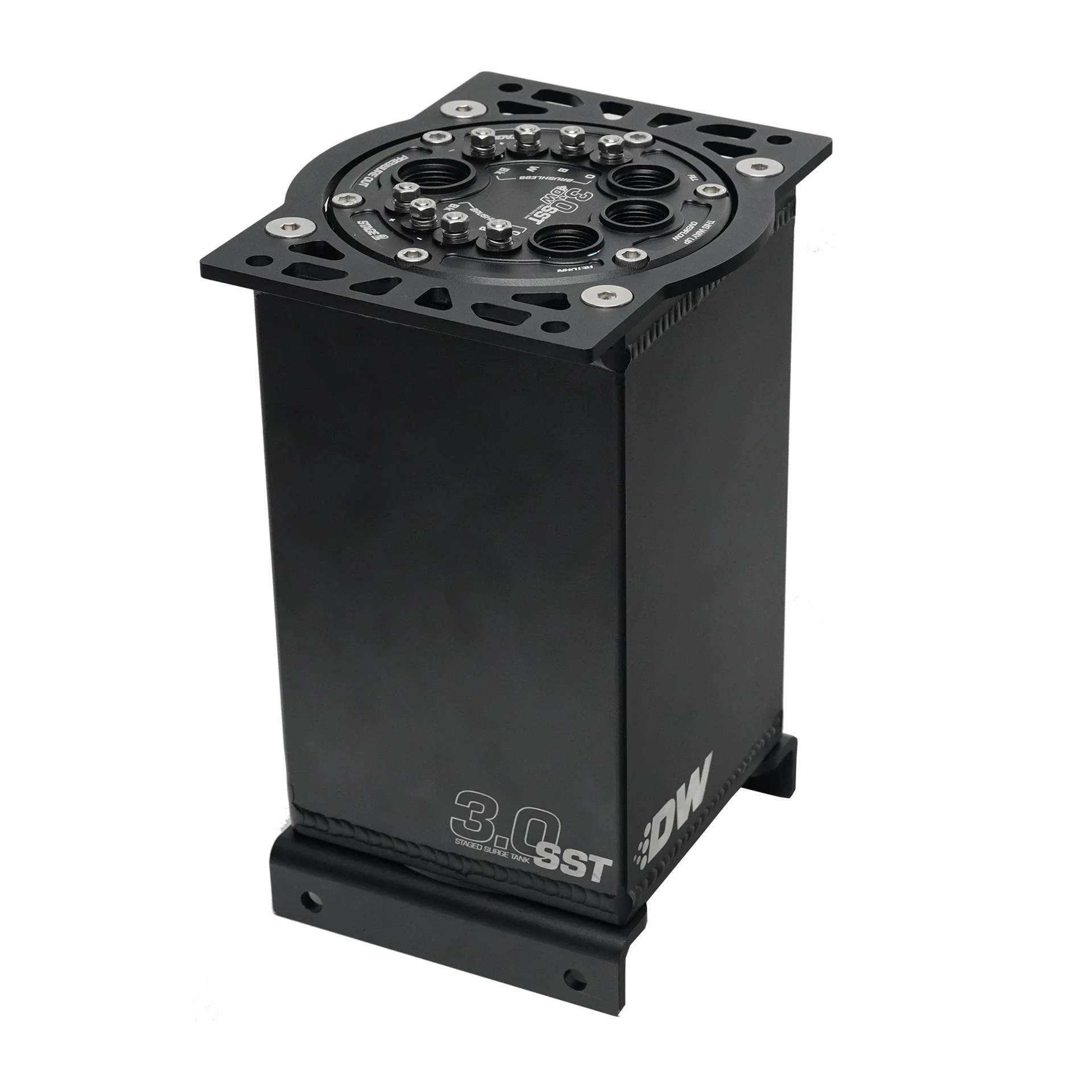

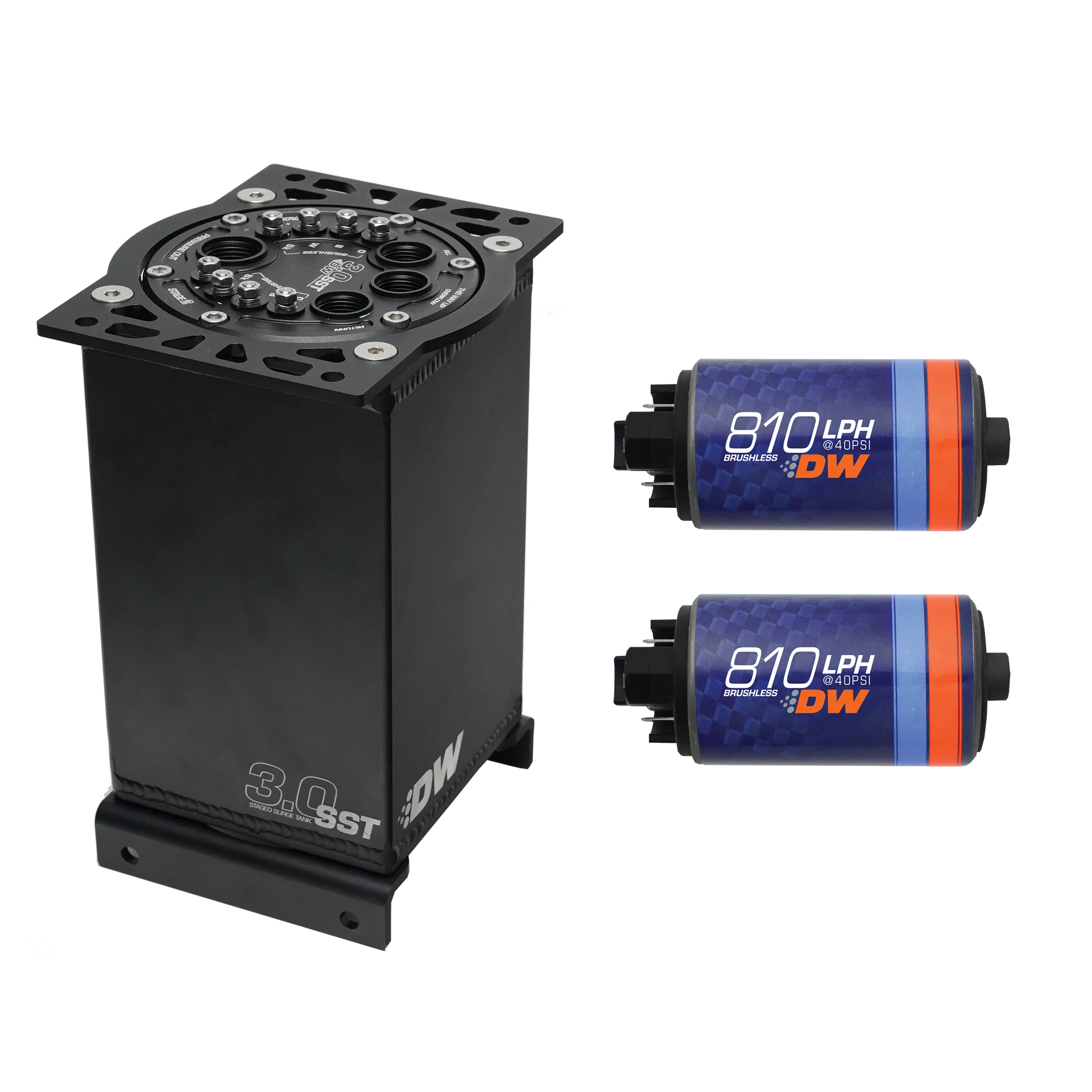

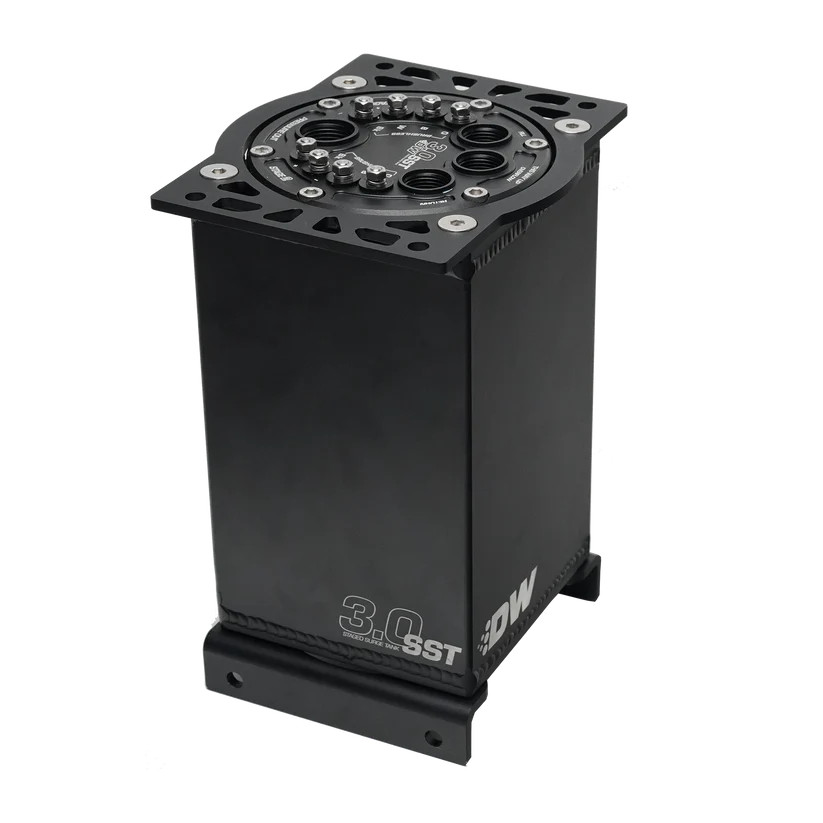

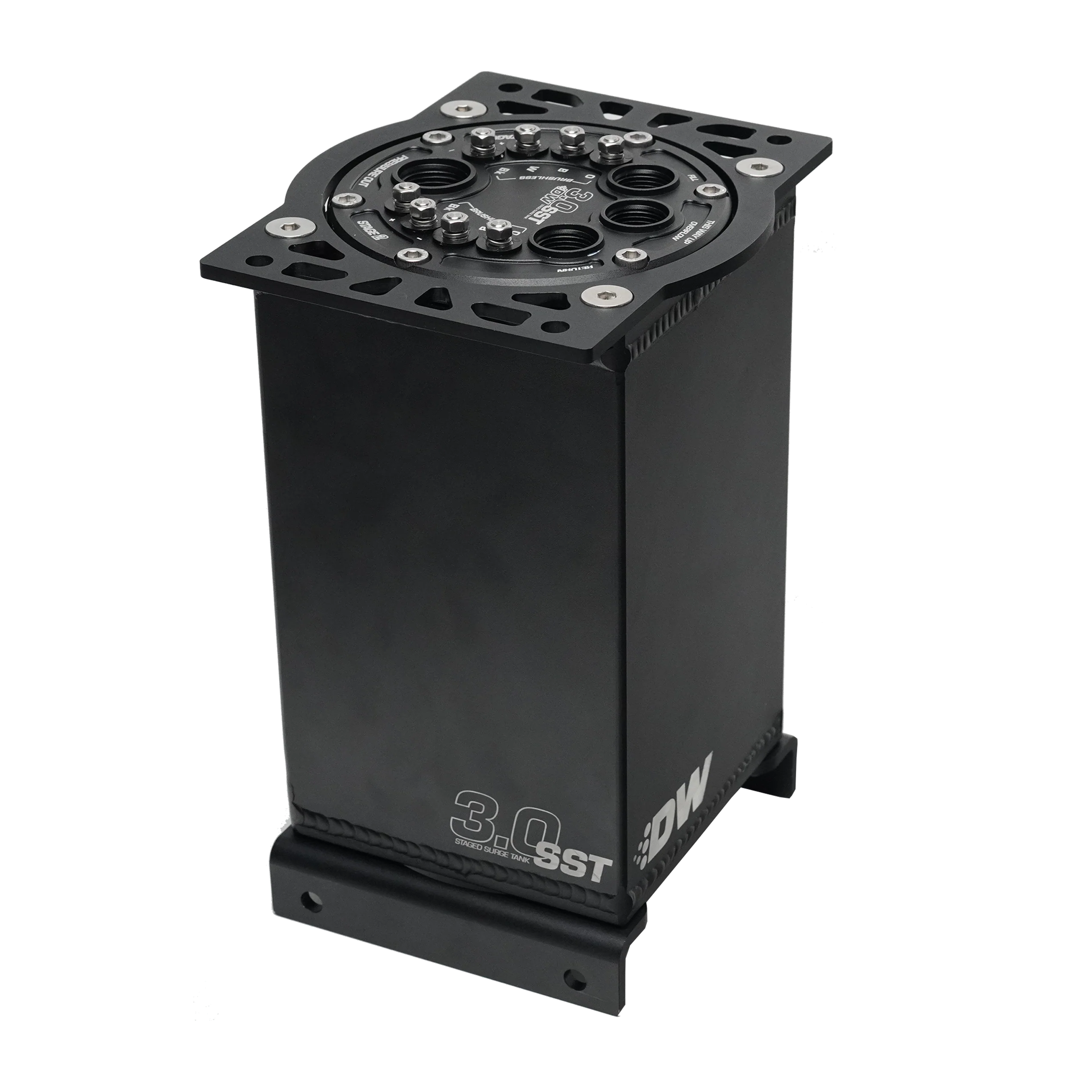

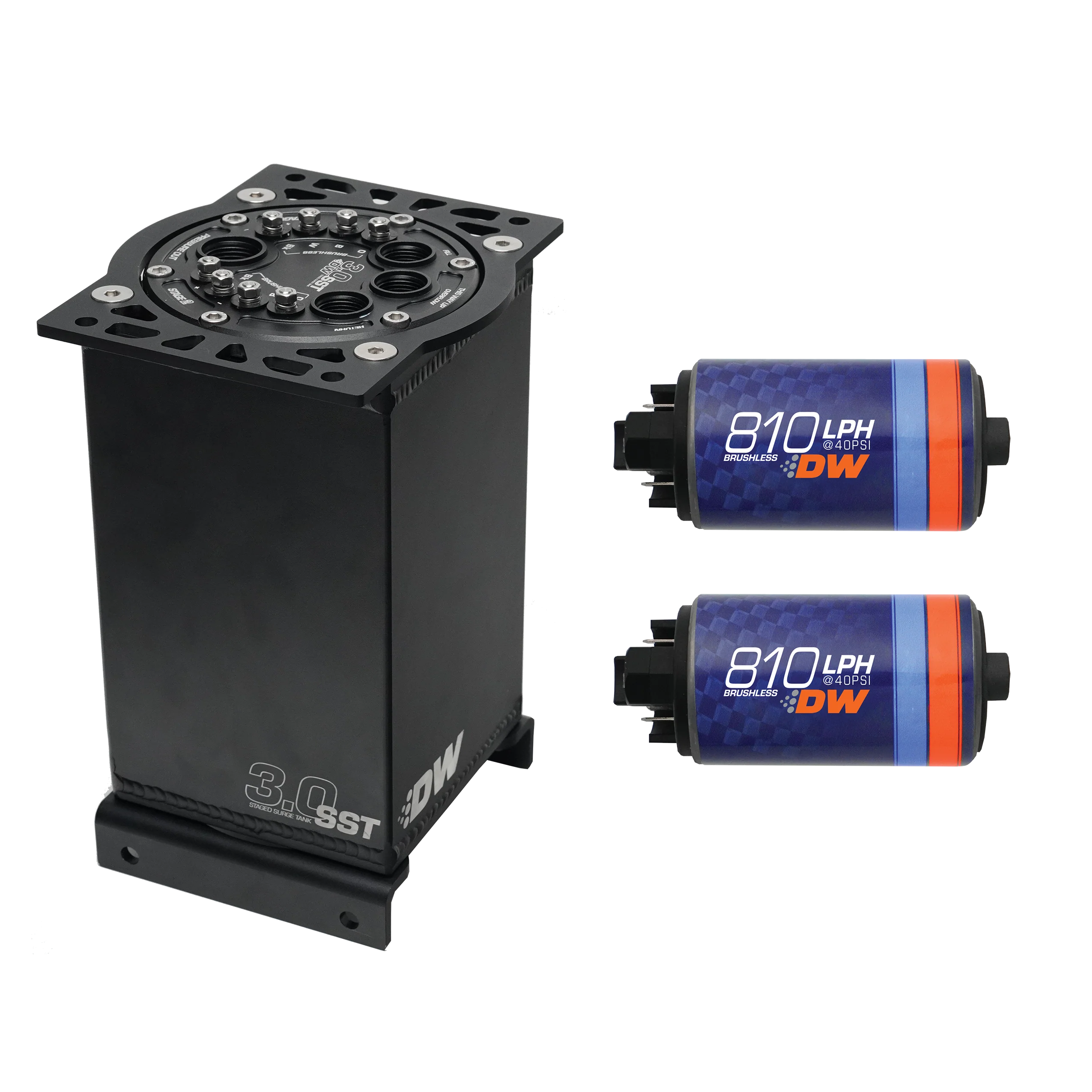

DeatschWerks 6-551-30ST 3.0L Staged Surge Tank with Dual DW550 In-Line Fuel Pumps

The DeatschWerks 6-551-30ST is a 3.0-liter staged surge tank pre-configured with dual DW550 in-line fuel pumps, engineered to deliver massive, stable fuel flow under high-G racing conditions and extreme off-road angles to eliminate fuel starvation. This universal system is purpose-built for high-horsepower builds where traditional in-tank pump setups fall short.

Unlike conventional surge tank designs, the DW 3.0L Staged Surge Tank offers unmatched installation flexibility with multiple mounting configurations and a pass-through plumbing layout, making integration straightforward in both custom and production-based fuel systems. Moving both the pump and filtration functions inside the surge tank results in a compact footprint, reduced pump noise, and a cleaner engine bay installation.

Key Features:

• 3.0L capacity — provides a reliable fuel reserve to prevent starvation during fuel sloshing and low tank conditions
• Includes dual DW550 in-line fuel pumps — pre-installed for out-of-the-box high-flow performance
• Supports single or dual-stage pump control via M5 stainless bulkhead wiring studs
• 10AN ORB outlet & 8AN ORB return/inlet ports for high-flow, universal plumbing compatibility
• O-ring style seals and captured bolts minimize leak points for long-term reliability
• Modular mounting brackets included for horizontal, recessed, or vertical installation
• Anodized finish — compatible with gasoline and E85 fuels
• Detailed plumbing and installation instructions included

The DeatschWerks 3.0L Staged Surge Tank system is a universal fit designed for racecars and high-horsepower street builds. Backed by DeatschWerks' 3-year warranty, it delivers the fuel system reliability demanded by serious performance applications.
