Diode Dynamics DD8688 Stage Series SS20 Pro Stealth Bumper LED Light Bar Kit White Driving ABL 6000K

The Diode Dynamics DD8688 Stage Series SS20 Pro Stealth Bumper LED Light Bar Kit delivers powerful, stealth-mounted auxiliary illumination with a clean, factory-integrated appearance. This kit includes a 20-inch SS20 Pro LED light bar along with application-specific CAD-designed brackets that mount behind the grille using existing factory mounting points — no cutting or drilling required. The result is a high-output lighting upgrade that looks like it belongs on the truck from the factory.

The SS20 Pro light bar represents the top performance tier in the Stage Series lineup. Featuring Diode Dynamics' patented TIR (Total Internal Reflection) optics, the light bar captures and focuses nearly all available light output directly where it is needed, eliminating glare and wasted light. The Driving beam pattern is fine-tuned for real-world road and trail performance, projecting a long, focused beam ideal for high-speed off-road and overland use. Color temperature is 6000K (white), with ABL (Adaptive Beam Lighting) capability built in.

Key Features:

• Patented TIR Optics — maximum light capture efficiency with no wasted output
• Driving Beam Pattern — tuned for long-range illumination on road and trail
• 6000K White / ABL — crisp white output with adaptive beam lighting
• True Amber Backlight — integrated accent lighting for a distinctive appearance
• SmartSelect Control — modern onboard control system for configurable operation
• IP69K Waterproof Rating — sealed against high-pressure water intrusion and extreme conditions
• Durable Aluminum Housing — ASTM-standard powdercoat finish resists corrosion and UV degradation
• Operating Range: -40°F to 185°F — tested to SAE standards for long-term reliability
• Operating Voltage: 9–30V DC — compatible with standard 12V and 24V vehicle electrical systems
• No-Drill Installation — CAD-designed brackets use factory mounting points exclusively
• Limited Lifetime Warranty — backed by Diode Dynamics' USA engineering and support
• Made in USA with Global Materials

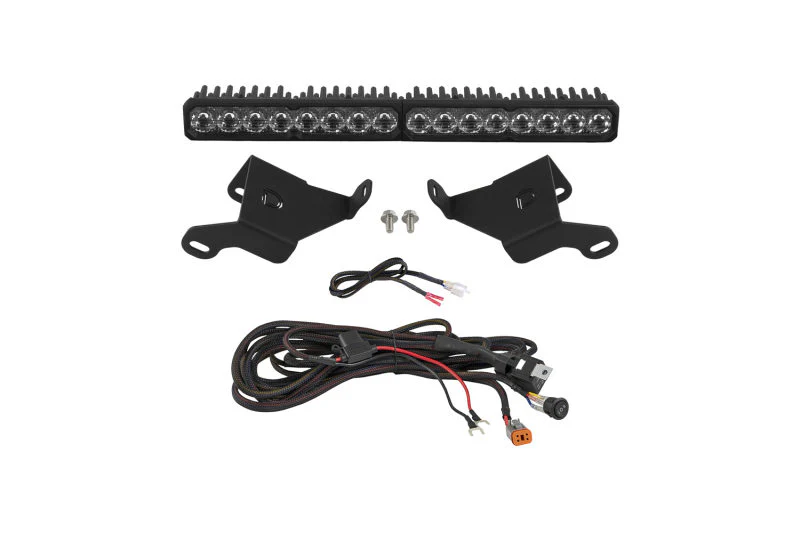

What's Included:

• One (1) Stealth Bracket Kit (application-specific)
• One (1) SS20 Pro LED Light Bar
• One (1) Heavy Duty Lightbar Wiring Harness
• Mounting Hardware
• Installation Guide

Diode Dynamics Stage Series lighting has been rigorously tested for vibration, moisture intrusion, corrosion, and long-term thermal cycling to SAE standards. The SS20 Pro is the choice for enthusiasts and off-road racers who demand the highest available output in a stealth, behind-the-grille installation.
