Bilstein 41-326091 B8 8112 ZoneControl CR DSA+ Front Right Coilover Module

(2007-2021 Toyota Tundra)

Manufacturer

Part Number

41-326091
Sale Price

$1,191.20

In Stock (8)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

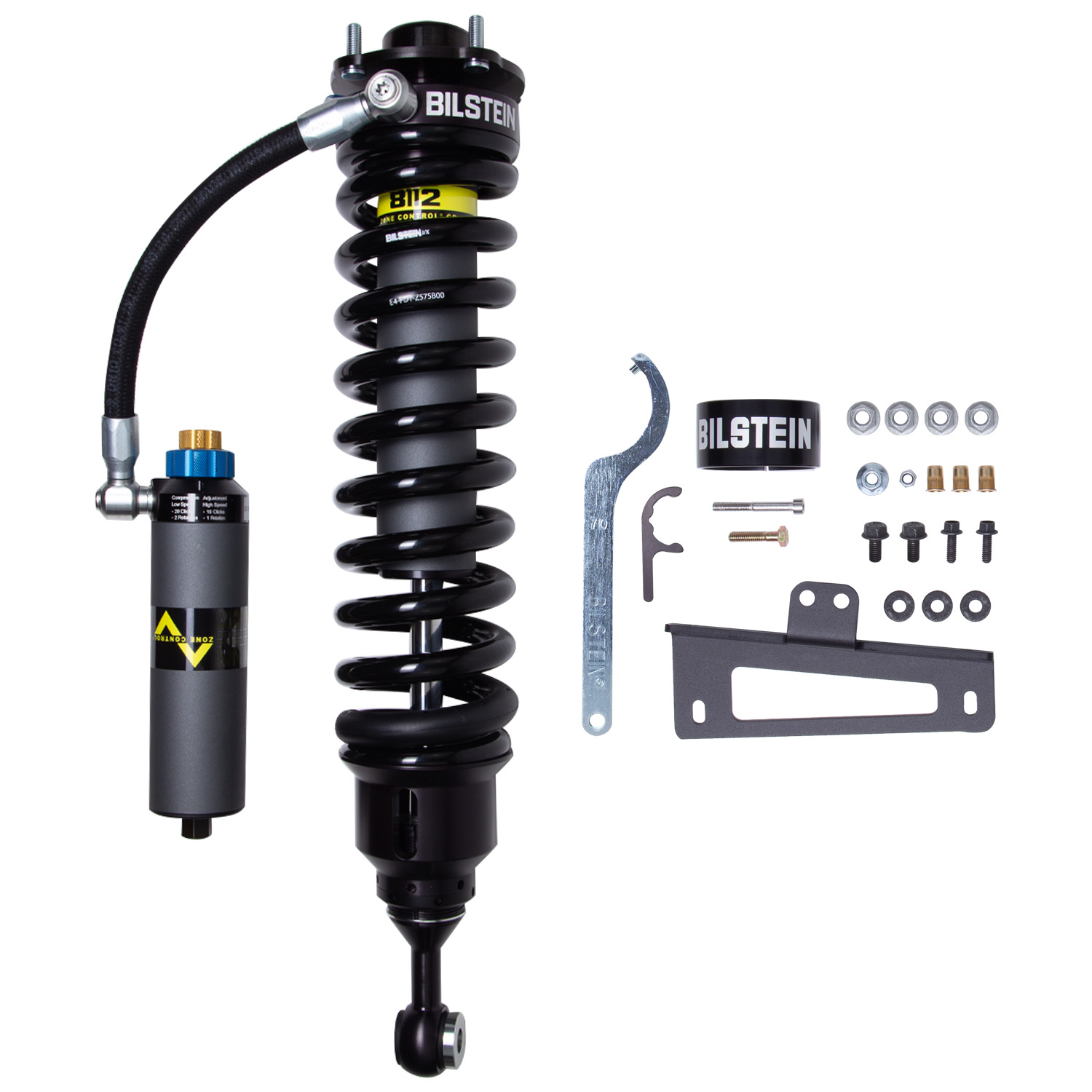

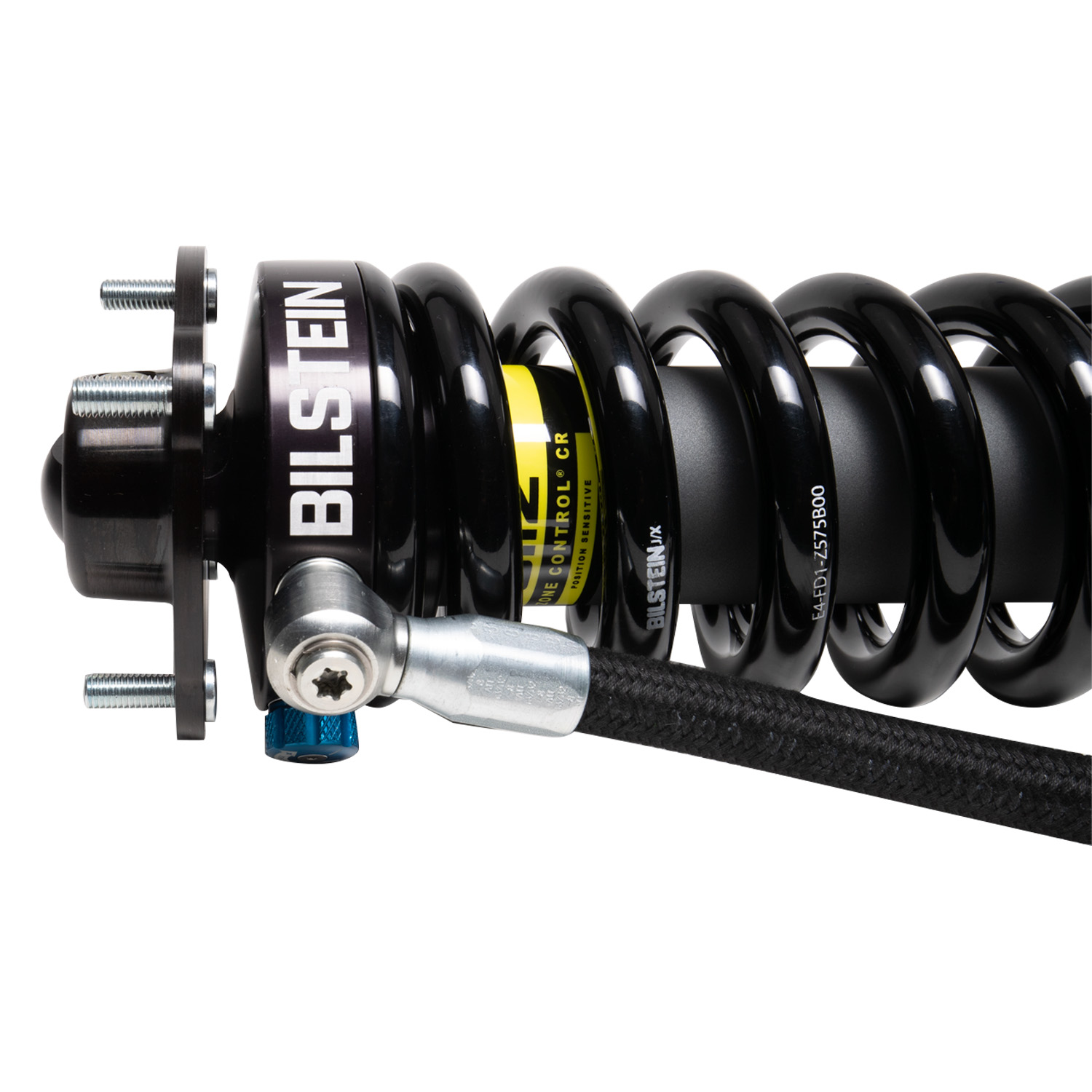

The Bilstein B8 8112 (ZoneControl CR DSA+) is a direct-fit, 3-way adjustable, 2.65-inch body, position-sensitive coilover shock designed for light trucks and SUVs. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. This front right corner module features a 60mm piston diameter and advanced engineering for exceptional on-road comfort and off-road capability.

Advanced Triple Piston Design:

  • Triple piston design offering 3 stages of compression valving and 2 stages of rebound valving
  • Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
  • Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
  • Provides superior bottom-out control through a 2-stage, telescoping internal compression stop, eliminating the need for an external hydraulic bump stop

Performance Features:

  • Threaded spring seat for ride height adjustability ranging from 0-3 inches (depending on application)

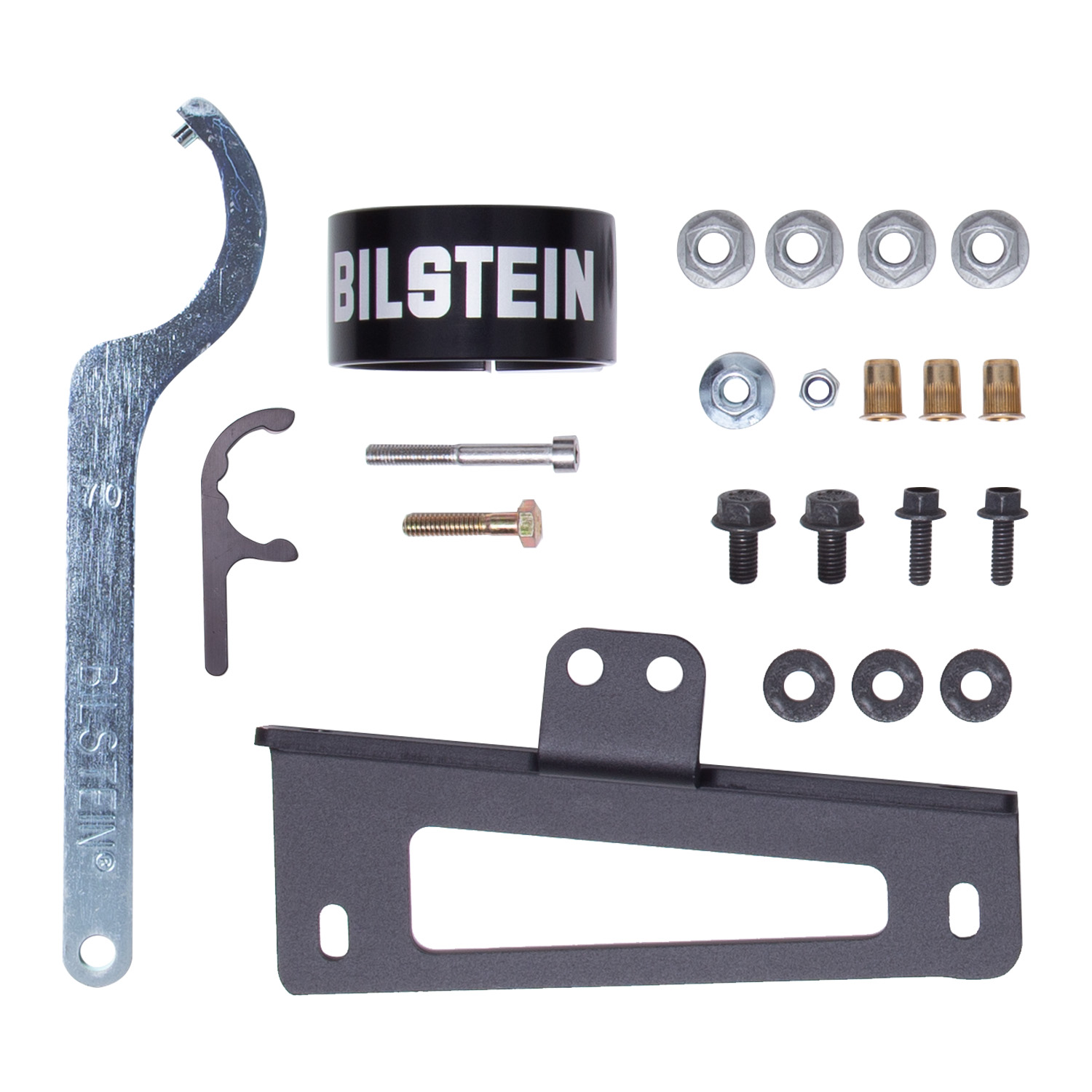

  • Supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount

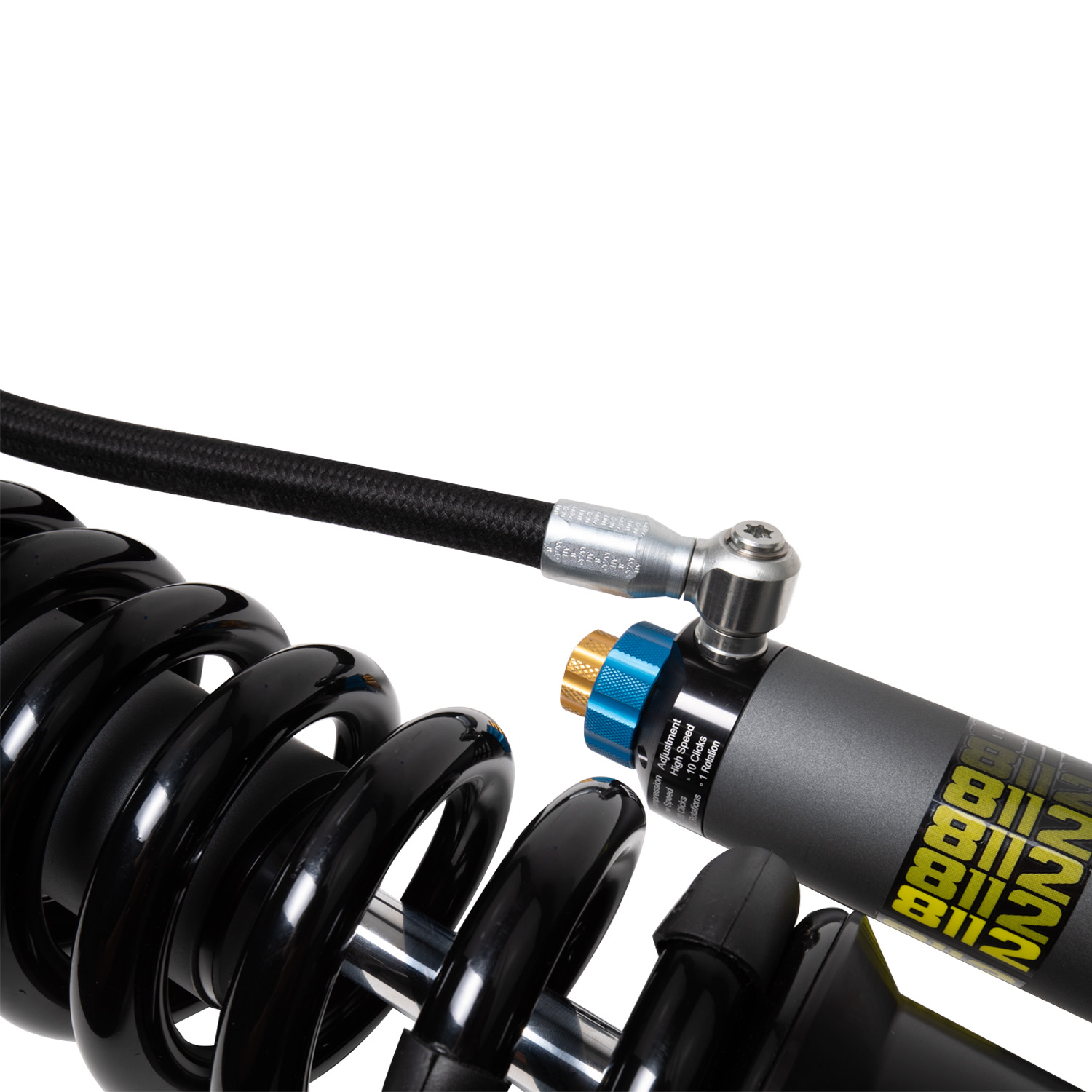

  • Large 60mm remote reservoir houses the gas chamber and opens up the main shock body for more wheel travel, with nitrogen-infused monotube design and floating dividing piston for consistent, fade-free performance
  • Monotube internal design with smooth body coilover construction

Specifications:

  • Body Diameter: 2.65 inches
  • Piston Diameter: 60mm
  • Collapsed Length: 18.90 inches (479.3mm)
  • Extended Length: 25.20 inches (640.8mm)
  • Lower Mount Type: Eye 19.05mm
  • Upper Mount Type: Special
  • Finish: Dampers: EVO Grey/Springs: Black

Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during everyday driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain. The shocks are rebuildable and revalvable, allowing for extended longevity and performance.

Products specifications

Fits

2007-2021 Toyota Tundra
