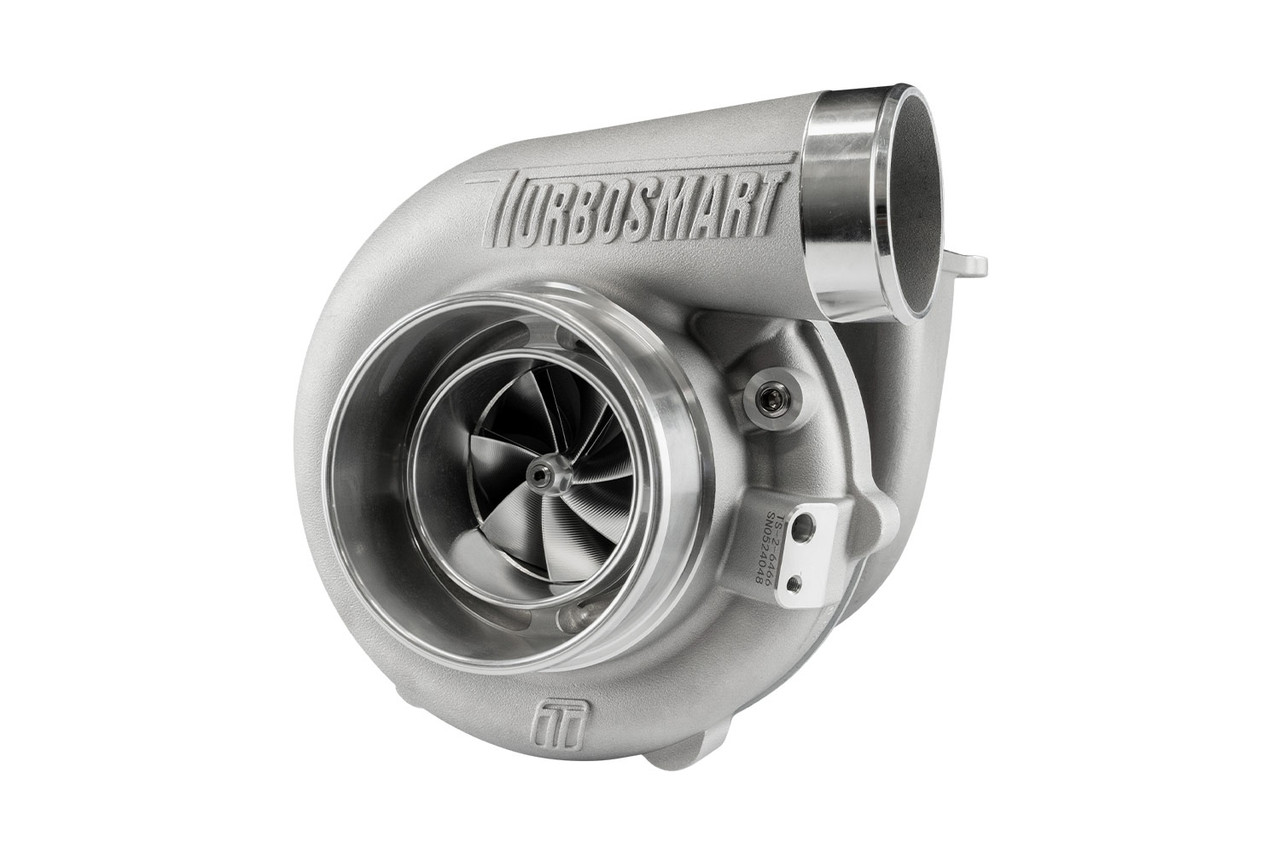

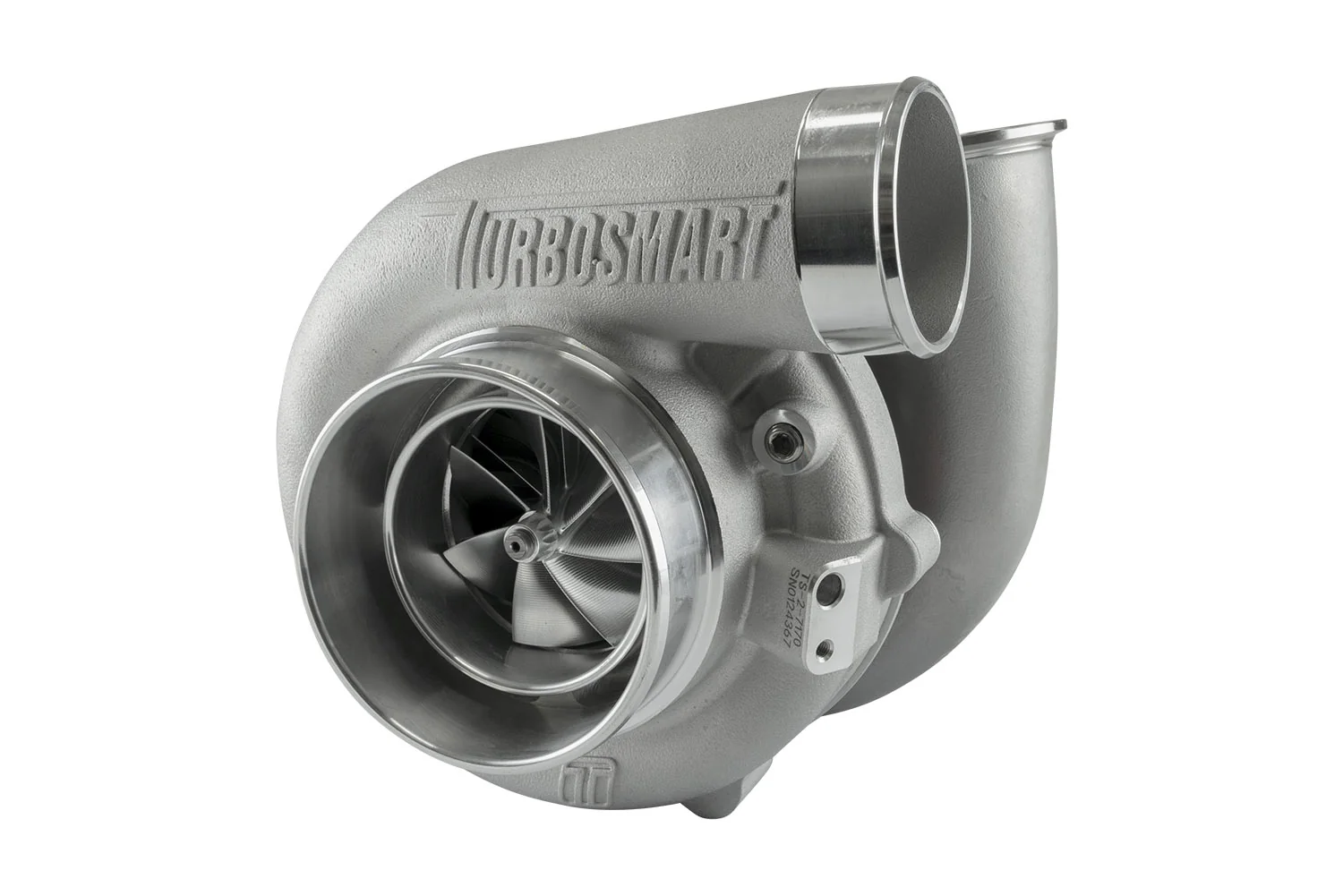

Turbosmart TS-2-7170B-T3110E TS-2 Water-Cooled Turbocharger 7170 T3 Divided 1.10AR Externally Wastegated

Manufacturer

Part Number

TS-2-7170B-T3110E
Black Friday Price

$2,752.19

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Turbosmart TS-2-7170B-T3110E is a water and oil cooled performance turbocharger built around a 71mm compressor inducer and a T3 divided turbine inlet with a 1.10 A/R ratio, designed for externally wastegated applications targeting 875–1,010 horsepower. The TS-2 series represents Turbosmart's commitment to leveraging modern materials, CFD-driven design, and precision manufacturing to meet the demands of both motorsport competitors and high-performance street builds.

At the heart of the TS-2 is a proprietary dual ceramic bearing system paired with an ultra-low rotating mass shaft assembly. This combination delivers exceptional transient response and high-rpm stability, while the 7+7 2618 aluminium splitter compressor wheels provide aggressive aerodynamics that maximize airflow efficiency at lower shaft speeds. The 713C Inconel turbine wheel is engineered to withstand extreme exhaust gas temperatures (EGTs), and the lightweight 310s stainless steel investment cast turbine housing keeps overall weight to a minimum without sacrificing durability.

Key Features:

  • Compressor Inlet: 4″ / 101.6mm
  • Compressor Inducer: 71mm
  • Turbine Inlet: T3 Divided Flange
  • Turbine Exducer: 70mm
  • Turbine A/R: 1.10
  • Turbine Outlet: V-Band (3.00″)
  • Horsepower Rating: 875–1,010 HP
  • 7+7 2618 aluminium splitter compressor wheels
  • Lightweight 310s stainless steel investment cast turbine housing
  • Lightweight aluminium compressor cover
  • 713C Inconel turbine wheel for extreme EGT resistance
  • VSR speed balanced for precision and longevity
  • Proprietary dual ceramic bearing system
  • Integrated iron backplate on center housing
  • Water and oil cooled center section

What's In The Box:

  • 1x Turbosmart TS-2 Performance Turbocharger
  • Weld flange (turbine outlet)
  • V-Band clamp (turbine outlet)
  • Oil feed and drain fittings
  • Water feed and return fittings
  • Gaskets

Race use only. Not legal for sale or use in California on pollution-controlled motor vehicles. No CARB EO number.
