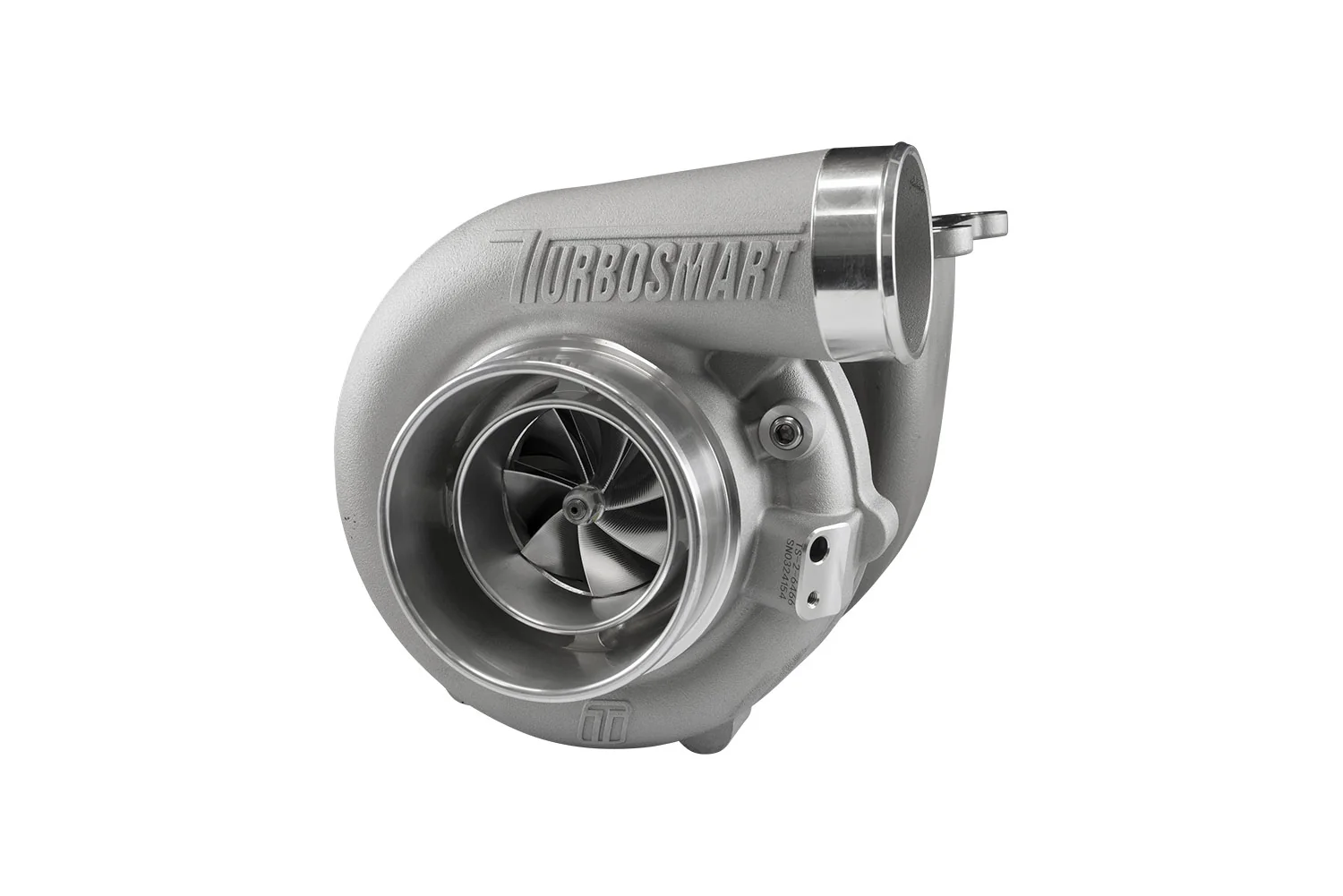

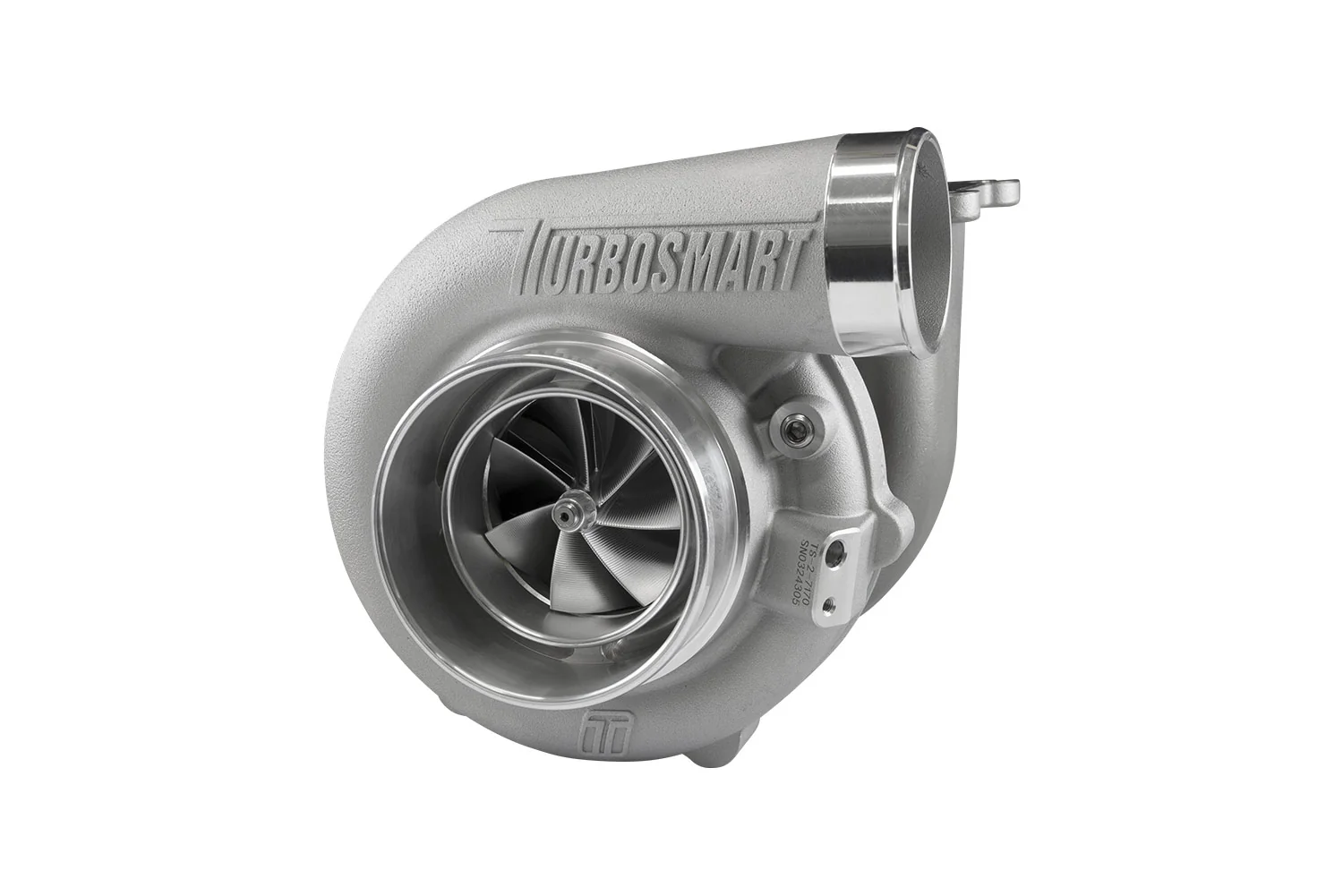

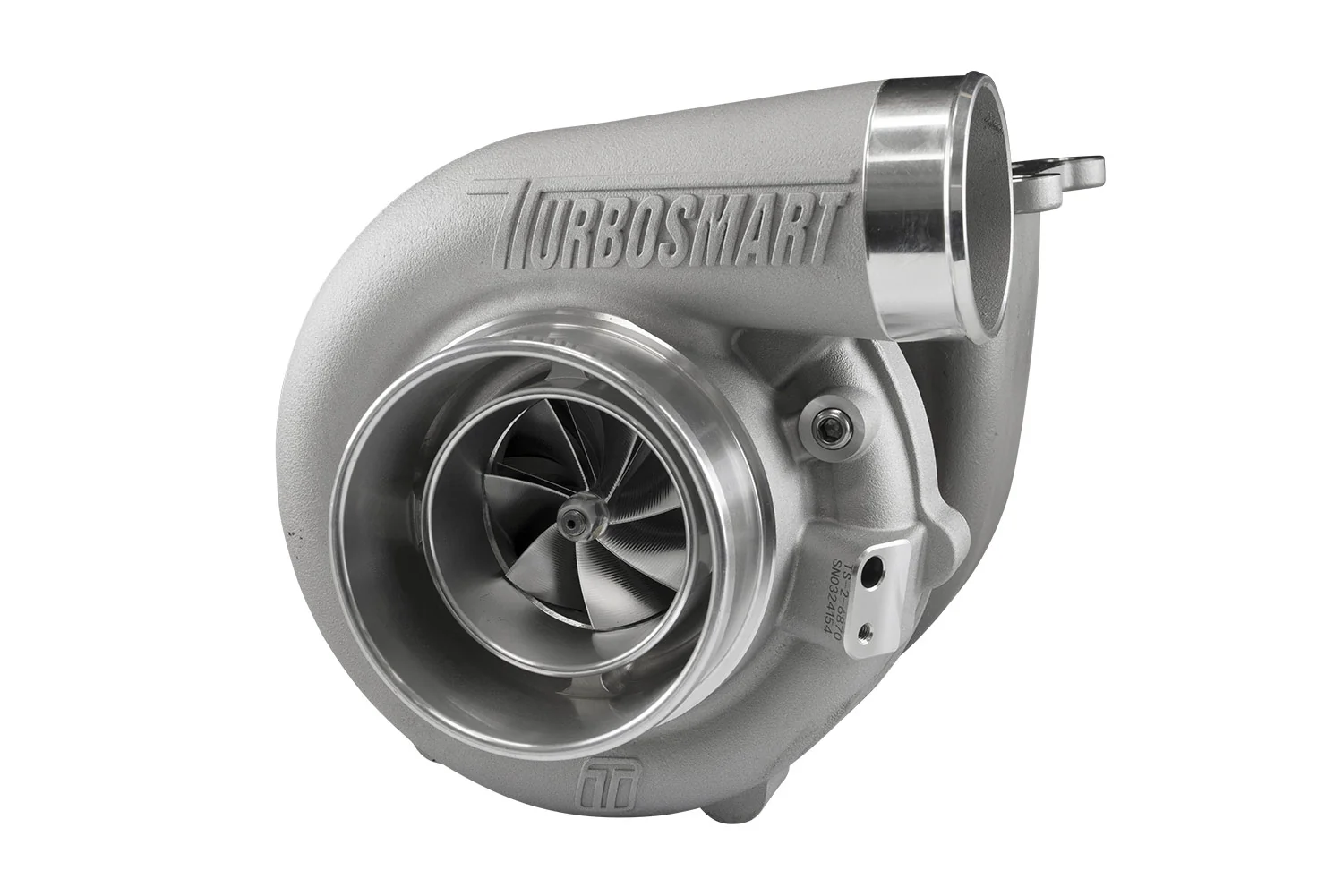

Turbosmart TS-2-7170B-D4100E TS-2 Water & Oil Cooled Turbocharger 7170 T4 Divided 1.00AR Externally Wastegated

Manufacturer

Part Number

TS-2-7170B-D4100E
Black Friday Price

$2,822.39

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Turbosmart TS-2-7170B-D4100E is a high-performance water and oil cooled turbocharger engineered for serious motorsport and performance street applications. Featuring a 71mm compressor inducer and 70mm turbine exducer paired with a T4 divided turbine inlet flange and a 1.00 A/R turbine housing, this turbo delivers an outstanding balance of spool response and top-end power capability in the 875–1,040+ horsepower range.

The TS-2 series is built around a proprietary dual ceramic bearing system and a precision-balanced main shaft assembly that dramatically reduces rotating mass for exceptional transient throttle response. The turbine housing is constructed from lightweight 310S stainless steel investment casting, while the compressor cover is machined from aluminum — both optimized using CFD-driven aerodynamic design. The turbine wheel is forged from 713C Inconel alloy for resistance to extreme exhaust gas temperatures (EGTs), and the compressor wheel features an aggressive 7+7 split blade design machined from 2618 aluminum for maximum flow efficiency.

Key Features:

  • Water and oil cooled center housing for improved bearing longevity and thermal management
  • 71mm compressor inducer / 70mm turbine exducer
  • T4 divided turbine inlet flange for pulse separation and improved spool characteristics
  • 1.00 A/R turbine housing with 3.00" V-Band turbine outlet
  • 4" / 101.6mm compressor inlet
  • Proprietary dual ceramic bearing system with VSR speed balancing
  • 713C Inconel turbine wheel rated for extreme EGTs
  • 7+7 splitter blade 2618 aluminum compressor wheel
  • Lightweight 310S stainless steel investment cast turbine housing
  • CFD-optimized compressor and turbine housing aerodynamics
  • External wastegate design for precise boost control
  • Integrated iron backplate on center housing

What's Included:

  • 1x Turbosmart TS-2 Performance Turbocharger
  • 1x Weld Flange (Turbine Outlet)
  • 1x V-Band Clamp (Turbine Outlet)
  • 1x Turbine Inlet Gasket
  • 1x Water Line Fitting Kit
  • 1x Oil Drain Gasket

Specifications:

  • Compressor Inlet: 4" / 101.6mm
  • Compressor Inducer: 71mm
  • Turbine Inlet: T4 Divided Flange
  • Turbine Exducer: 70mm
  • Turbine A/R: 1.00
  • Turbine Outlet: V-Band (3.00")
  • Horsepower Rating: 875–1,040+ HP
  • Weight: 24 lbs

The Turbosmart TS-2-7170B-D4100E ships ready to install with all necessary flanges, clamps, gaskets, and oil and water line fittings included — everything needed to get your build up and running without sourcing additional hardware.
