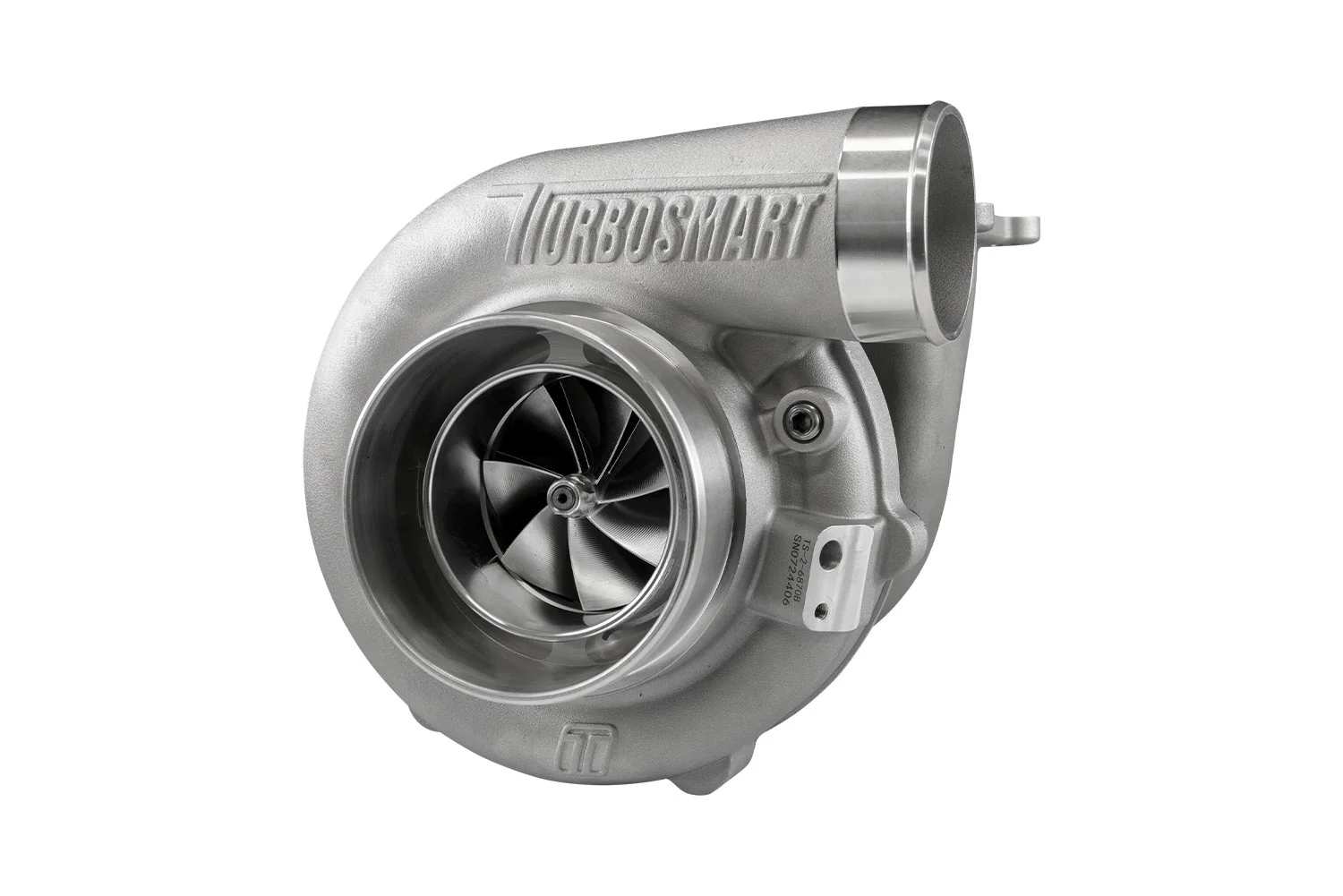

Turbosmart TS-2-6870B-T4082E-RR TS-2 Water-Cooled 6870 Kompact T4 Reverse Rotation 0.82AR Externally Wastegated Turbocharger

Manufacturer

Part Number

TS-2-6870B-T4082E-RR
Black Friday Price

$2,708.09

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Turbosmart TS-2-6870B-T4082E-RR is a water and oil cooled performance turbocharger from Turbosmart's TS-2 series, featuring a 68mm compressor inducer / 70mm turbine exducer (6870) Kompact profile, T4 turbine inlet flange, 0.82 A/R turbine housing, reverse rotation configuration, and external wastegate provision. Engineered for demanding motorsport and high-performance street applications, this turbocharger delivers outstanding transient response and top-end power.

Key Features:

  • Water & Oil Cooled: Dual-cooling center housing for increased bearing reliability and reduced heat soak at shutdown
  • Reverse Rotation (RR): Designed for twin-turbo mirror configurations or unique engine layouts requiring reversed shaft rotation
  • T4 Turbine Inlet Flange: Kompact T4 flange pattern for broad manifold compatibility
  • 0.82 A/R Turbine Housing: Optimized for strong mid-range spool with high peak power potential
  • External Wastegate (EWG): Externally wastegated turbine housing for superior boost control and high-horsepower applications
  • 7+7 2618 Aluminum Splitter Compressor Wheel: Aggressive aerodynamics for high performance at lower shaft speeds
  • 310S Stainless Steel Investment Cast Turbine Housing: Lightweight construction for reduced rotating inertia and faster response
  • 713C Inconel Turbine Wheel: Handles extreme exhaust gas temperatures (EGT) without compromise
  • CFD-Designed Housings: Optimized A/R and flow paths for maximum efficiency
  • Proprietary Dual Ceramic Bearing System: VSR speed-balanced for unparalleled transient response
  • Integrated Iron Backplate: On center housing for durability and heat management
  • Lightweight Aluminum Compressor Cover: Reduces overall turbocharger weight

What's Included:

  • 1x Turbosmart TS-2 Performance Turbocharger
  • 2x Weld Flanges (Turbine Inlet and Outlet)
  • 2x V-Band Clamps (Turbine Inlet and Outlet)
  • 1x Oil Drain Gasket
  • 1x Water Line Fitting Kit
  • 1x Oil Feed Fitting

Specifications:

  • Compressor Inducer: 68mm
  • Turbine Exducer: 70mm
  • Turbine Inlet: T4 Flange
  • Turbine A/R: 0.82
  • Rotation: Reverse (RR)
  • Cooling: Water & Oil
  • Wastegate: External
  • Horsepower Rating: 850–990HP
  • Weight: 24 lbs

The Turbosmart TS-2 series takes an engine end-to-end approach to performance, reducing back pressure through high-flow turbine design while maintaining fast spool characteristics. The reverse rotation variant makes this unit ideal for mirror-image twin-turbo setups or applications where standard rotation is not suitable. Part number: TS-2-6870B-T4082E-RR.
