Turbosmart TS-1-7170B-T4082E-RR TS-1 7170 T4 0.82AR Externally Wastegated Reverse Rotation Turbocharger

Manufacturer

Part Number

TS-1-7170B-T4082E-RR
Black Friday Price

$2,421.89

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

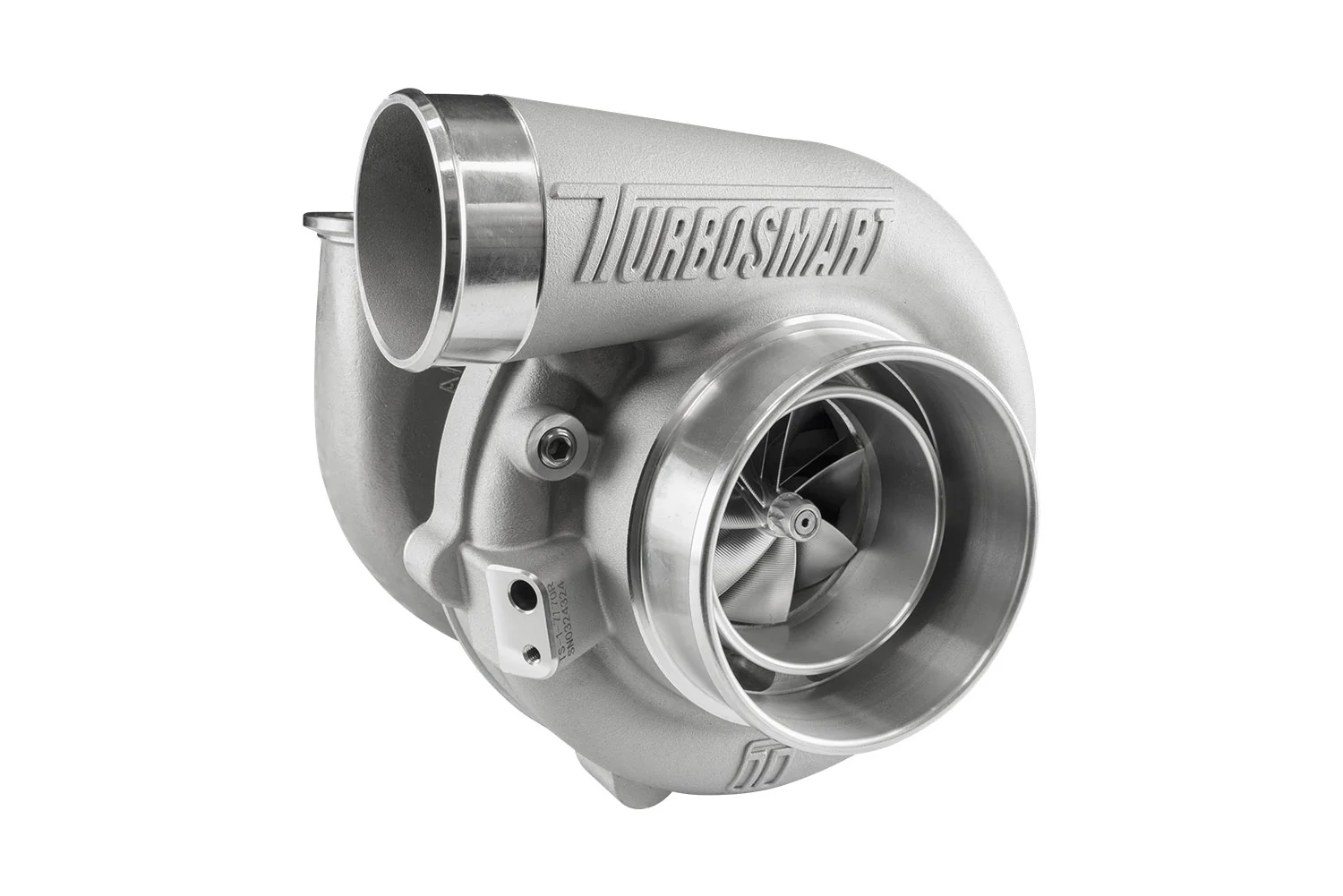

The Turbosmart TS-1-7170B-T4082E-RR is a high-performance, oil-cooled turbocharger from Turbosmart's TS-1 series, featuring a 7170 wheel package, T4 turbine inlet flange, 0.82 A/R turbine housing, external wastegate provision, and reverse rotation configuration. Built for motorsport and serious performance applications, this turbocharger is engineered using modern materials and advanced manufacturing to deliver outstanding transient response and top-tier reliability.

Key Features:

  • 7+7 Splitter Wheel Design: 2618 aluminium compressor wheel with aggressive aerodynamics for exceptional flow and spool characteristics
  • 713C Inconel Turbine Wheel: Built to withstand extreme exhaust gas temperatures (EGT) without compromise
  • Proprietary Dual Ceramic Bearing System: Ultra-low rotating mass for rapid spool-up and exceptional transient response
  • Lightweight 310s Stainless Steel Turbine Housing: Investment cast for strength and reduced overall weight
  • CFD-Optimized Compressor Cover: Lightweight aluminium construction with housings designed for optimal A/R and airflow
  • VSR Speed Balanced: Factory balanced for smooth, reliable high-RPM operation
  • Integrated Iron Backplate: On center housing for added durability
  • Reverse Rotation: Designed for applications requiring counter-clockwise turbine shaft rotation
  • Externally Wastegated: Compatible with external wastegate setups for precise boost control

Specifications:

  • Compressor Inlet: 4″ / 101.6mm
  • Compressor Inducer: 71mm
  • Turbine Inlet: T4 Flange
  • Turbine Exducer: 70mm
  • Turbine A/R: 0.82
  • Turbine Outlet: V-Band (3.00″)
  • Horsepower Rating: 875–1010HP
  • Weight: 6.86kg / 15.1lbs

What's Included:

  • 1x Turbosmart TS-1 Performance Turbocharger
  • 1x Weld Flange (Turbine outlet)
  • 1x V-Band Clamp (Turbine outlet)
  • 1x Oil Drain Gasket
  • Oil Feed and Drain Fittings

The Turbosmart TS-1 series delivers the performance, quality, and support demanded by both professional motorsport builders and performance enthusiasts. The reverse rotation T4 0.82 A/R configuration makes this turbocharger ideal for twin-turbo setups and unique manifold arrangements where standard rotation is not suitable.
