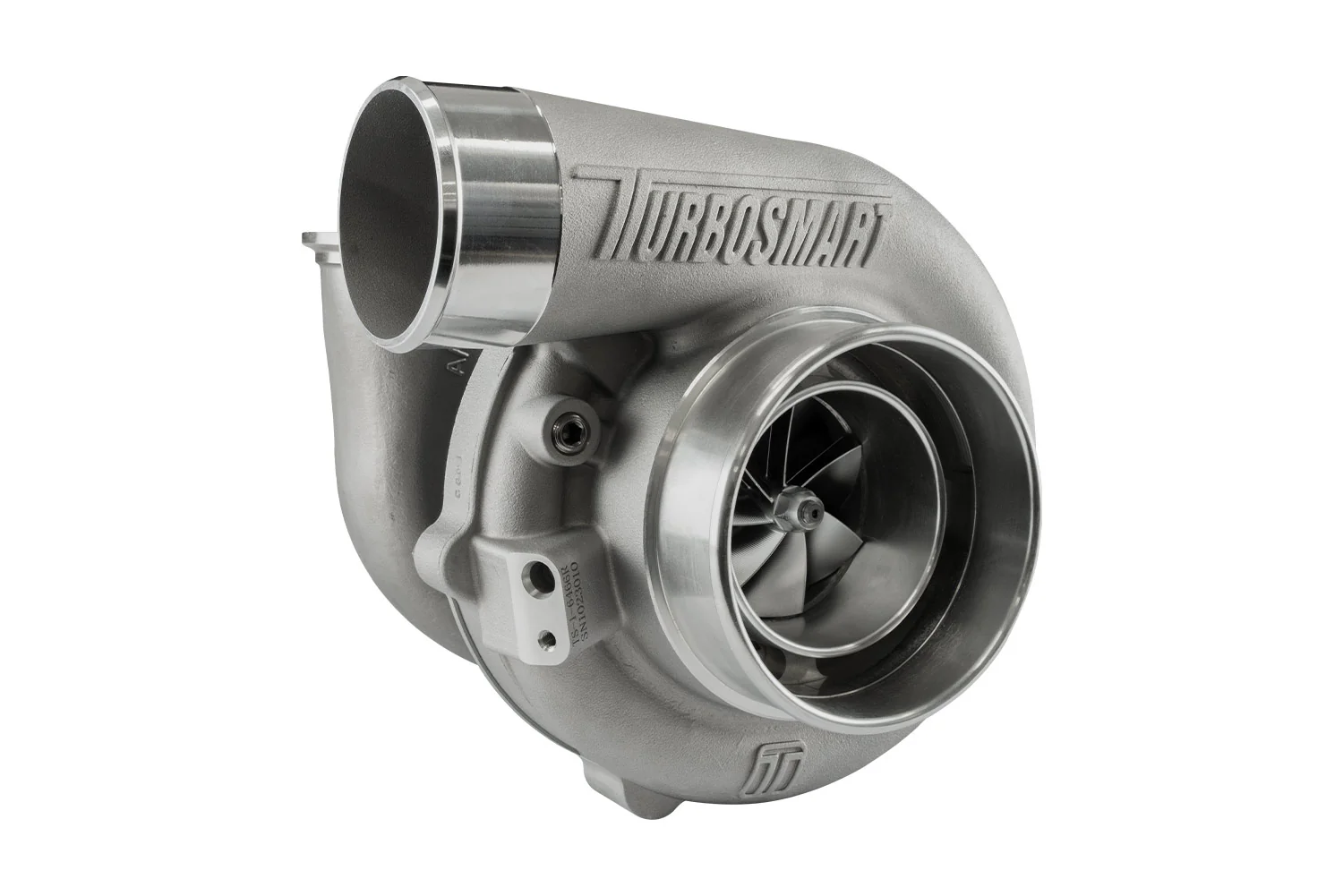

Turbosmart TS-1-6466B-T4082E-RR TS-1 Performance Turbocharger 6466 T4 0.82AR Externally Wastegated Reverse Rotation

Manufacturer

Part Number

TS-1-6466B-T4082E-RR
Black Friday Price

$2,293.19

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Turbosmart TS-1-6466B-T4082E-RR is an oil-cooled, externally wastegated performance turbocharger featuring a 6466 wheel configuration, T4 turbine inlet flange, 0.82 A/R turbine housing, and reverse rotation design. Rated at 825–955 horsepower, this turbocharger is engineered for serious performance builds that demand rapid spool-up, high-flow capability, and race-proven durability.

The TS-1 series was developed using modern materials, advanced CFD-driven design, and precision manufacturing to deliver a turbocharger that is smaller, lighter, and faster-spooling than conventional alternatives—without sacrificing peak power output. The reverse rotation configuration makes it ideal for specialized engine layouts and twin-turbo mirror setups.

Key Features:

  • Oil-cooled design with lightweight 310 stainless steel investment cast turbine housing
  • Proprietary dual ceramic bearing system with ultra-low rotating mass shaft assembly for exceptional transient response
  • 7+7 blade 2618 aluminum splitter compressor wheel with aggressive aerodynamics for high performance at lower shaft speeds
  • 713C Inconel turbine wheel engineered to withstand extreme exhaust gas temperatures (EGTs)
  • CFD-optimized housings for ideal A/R flow characteristics and reduced back pressure
  • VSR (Vibration Sorted and Rechecked) speed balanced for smooth, reliable operation
  • Integrated iron backplate on the center housing for added rigidity
  • Lightweight aluminum compressor cover for reduced overall weight
  • Reverse rotation (RR) configuration for specialized or mirror twin-turbo applications

Specifications:

  • Compressor Inlet: 4.0 in / 101.6mm
  • Compressor Inducer: 64mm
  • Turbine Inlet: T4 Flange
  • Turbine Exducer: 66mm
  • Turbine A/R: 0.82
  • Turbine Outlet: V-Band (3.00 in)
  • Horsepower Rating: 825–955 HP
  • Weight: 6.06 kg / 13.3 lbs

What's Included:

  • 1x Turbosmart TS-1 Performance Turbocharger
  • Weld flanges (turbine inlet and outlet)
  • V-band clamps (turbine inlet and outlet)
  • Oil drain gasket
  • Oil feed and drain fittings
  • Gaskets

The Turbosmart TS-1-6466B-T4082E-RR ships complete with all installation hardware needed for a straightforward turbocharger installation, making it a premium choice for both motorsport competitors and high-performance street builds.
