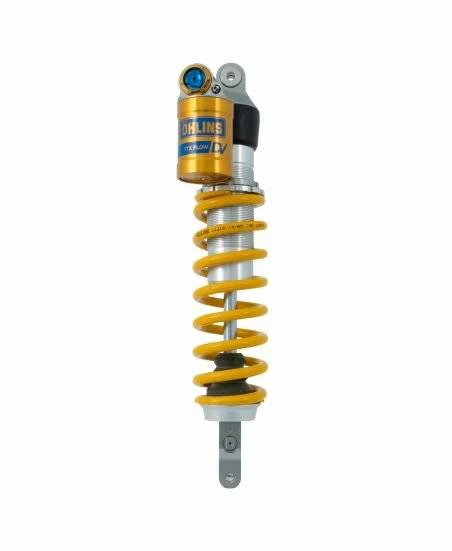

Ohlins DMX 1220 TTX Flow DV MX Enduro Rear Shock Absorber

The Öhlins DMX 1220 TTX Flow DV is a premium rear shock absorber engineered for MX and Enduro riders who demand the highest level of suspension performance. Built around Öhlins' signature TTX Twin Tube technology, this shock precisely separates and controls oil movement during both compression and rebound for more accurate, consistent, and predictable damping in all conditions.

The TTX Flow DV represents a complete overhaul of flow damper technology, delivering quicker response, improved chassis stability on rough terrain, and better corner entry feel versus previous-generation shocks. The DV (Digressive Valve) damping system enhances shock absorption by generating greater damping force at low shaft velocities, resulting in smooth, controlled suspension movement over uneven surfaces with minimal bottoming-out.

Key Features:

• TTX Twin Tube technology for precise, consistent compression and rebound control
• High-speed compression adjuster to adapt setup to any track condition or riding style
• Digressive Valve (DV) damping system for superior low-speed shaft control and bottoming resistance
• Patent-pending FLOW valve dynamic control for enhanced oil flow management
• New compression valve interface for optimal pressure control
• New rebound needle and shaft jet design for refined damping response
• Strong 16mm shaft for rigidity and durability
• Unique spring clip design for fast, easy spring changes
• Compatible with optional spring preload adjuster offering 10mm of adjustment range
• Wide range of optional springs available separately

Important Note: This shock absorber is supplied without a spring. The correct spring must be ordered separately based on rider weight. Consult the Öhlins spring rate recommendation guide for the appropriate spring selection. An optional mechanical spring preload adjuster is also available separately and can be adjusted using an 8mm Allen key.
