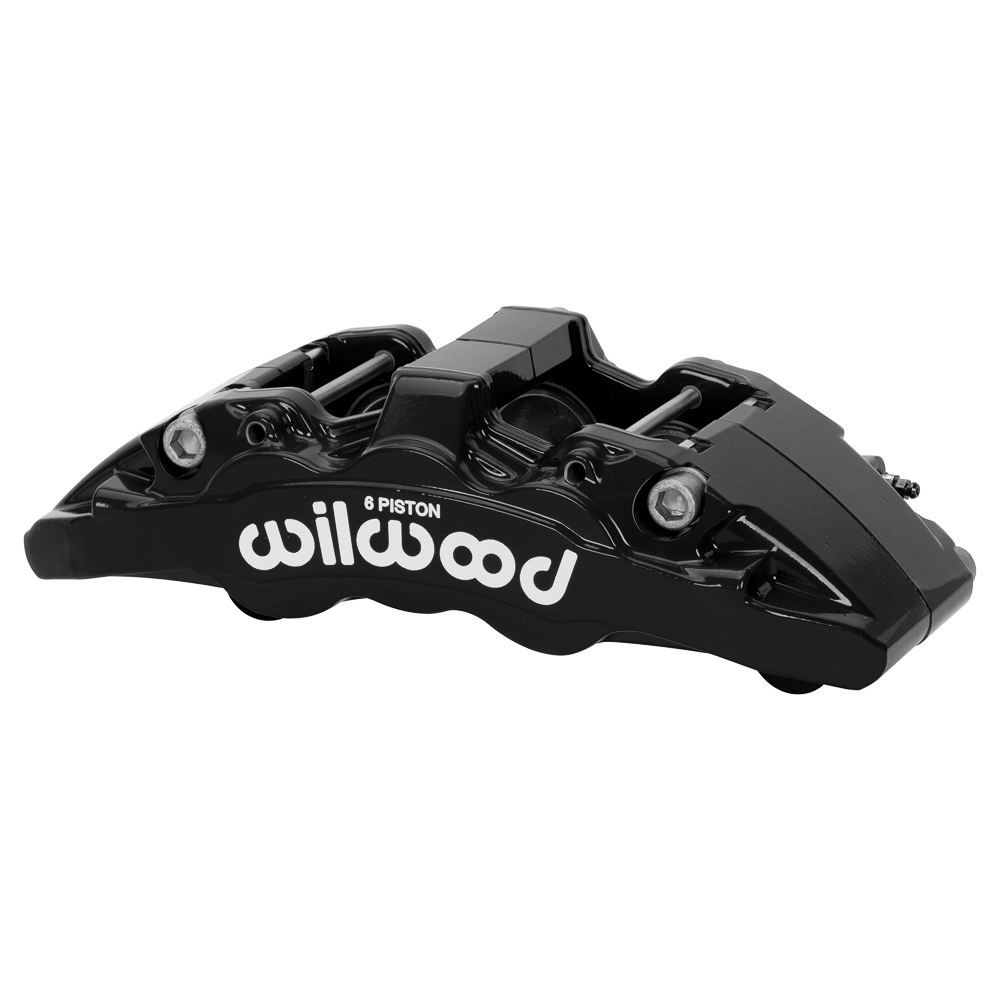

The Wilwood AeroDM is a forged six-piston disc brake caliper engineered to deliver heavy-duty stopping power for street, truck, and off-road applications. Built on race-proven technology, the AeroDM integrates high-performance braking capability into a versatile body design suited for a wide range of heavy-duty vehicles.
Variable Lug Geometry & Direct Spindle Mounting: The AeroDM's variable lug geometry enables direct spindle mounting with Wilwood's proprietary 13.38" diameter rotors on many late-model trucks. Multiple piston volume options provide the flexibility needed to meet all types of heavy-weight braking demands.
Stress-Flow Forged Aluminum Body: The caliper body is stress-flow forged from a premium-grade aluminum alloy. This process realigns the metal's internal grain structure to follow the contour of the caliper body — eliminating the stress concentrations and grain interruptions associated with machined billet construction. The result is a caliper with superior clamping efficiency and outstanding resistance to fatigue, distortion, and deformation under load.
Internal Fluid Porting: Internal fluid cross-over ports eliminate the need for external cross-over tubes and a bulky center bridge assembly, contributing to a cleaner, more rigid caliper structure.
Key Features:
- Six-piston forged aluminum caliper with stress-flow forging for superior strength
- Variable lug geometry for direct spindle mounting compatibility
- Designed for use with proprietary 13.38" diameter Wilwood rotors
- Internal fluid ports eliminate external cross-over tubes for added rigidity
- Multiple piston volume options for versatile heavy-weight braking setups
- Available in black powdercoat finish
- Engineered for street, off-road, towing, hauling, and extreme-duty use
The Wilwood 120-17953-BK AeroDM caliper is sold individually and is compatible with OEM rear brakes, master cylinder, and onboard computer systems when used as part of a complete Wilwood brake system upgrade.
