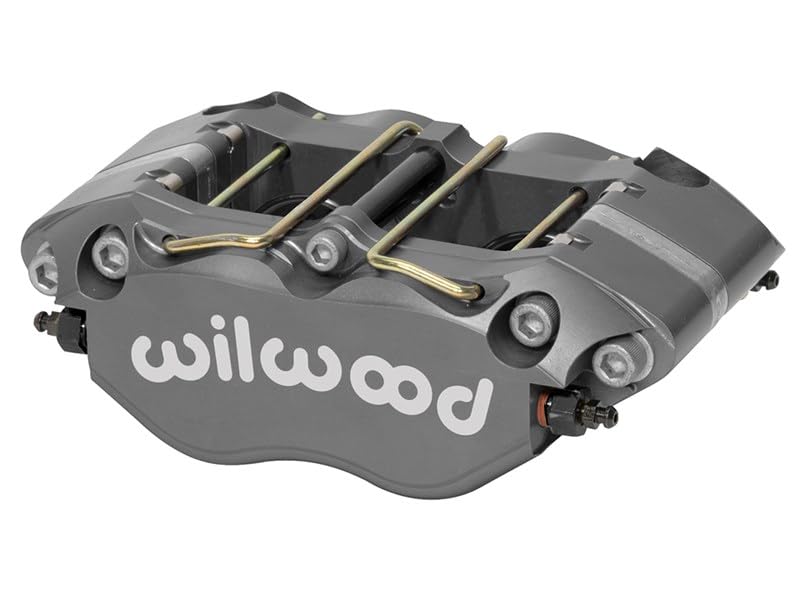

The Wilwood Narrow DynaPro (NDPR) is a four-piston, radial mount forged billet brake caliper engineered for sports, rally, and off-road performance applications. Weighing as little as 3.58 lbs, this caliper delivers an exceptional strength-to-weight ratio without compromising stopping power or durability in demanding conditions.
Stress-Flow Forged Construction:
The DynaPro's strength begins with its manufacturing process. Stress-flow forging re-aligns the internal grain structure of the aluminum to follow the contour of the caliper body, producing a part with measurably superior strength compared to straight-grained machined billet or cast components.
FEA-Optimized Body Design:
Finite Element Analysis (FEA) drove the caliper's body geometry, incorporating a smooth radial transition between the piston bores and caliper bridges. This design eliminates the machined steps and shoulders found in conventional calipers — the most critical area for resisting deflection and body separation under high braking loads. The result is reduced structural flex, lower fluid volume displacement, and a firmer, more responsive brake pedal.
Key Features:
- Radial mount design — versatile mounting compatibility for a wide range of custom and OEM applications
- Heavy-wall stainless steel pistons — compatible with rotors up to 12.19" diameter; provides enhanced resistance to corrosion and heat transfer from brake pads
- Thermlock piston option — available upgrade for maximum thermal protection in sustained high-heat environments
- Stainless SRS bridge plates — protect the caliper bridge from pad gouging while dampening noise and vibration during brake engagement
- Internal fluid passages — eliminate the need for external crossover tubes, reducing plumbing complexity and potential leak points
- Four-corner bleed screws — enable effective air evacuation from any mounting position or orientation
- Quick-Clip pad retainers — support type 7812 brake pads from the top for fast pad service without removing the caliper
- Lightweight forged aluminum body — starting weight of 3.58 lbs; ideal for weight-sensitive performance builds
The Wilwood 120-17193 Narrow DynaPro caliper is sold individually and does not include brake pads or mounting hardware.
