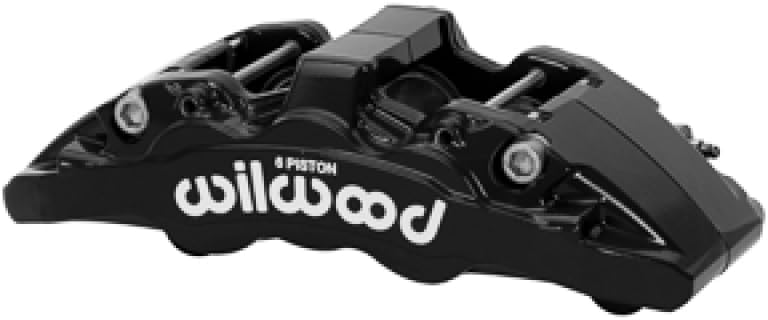

Wilwood 120-16825 AeroDM Forged Six Piston Disc Brake Caliper

The Wilwood AeroDM forged six piston disc brake caliper delivers heavy-duty stopping power engineered for both street and off-road applications. Incorporating proven race technology into a versatile body design, this caliper offers widespread adaptability for demanding braking requirements on late model trucks and heavy vehicles.

Key Features:

• Forged six piston design for maximum clamping force and heat dissipation
• Variable lug geometry enables direct spindle mounting compatibility
• Designed for use with proprietary 13.38-inch diameter rotors
• Multiple piston volume options to suit various heavy-weight braking applications
• Stress-flow forged from premium grade aluminum alloy billet
• Superior strength and resistance to fatigue, stress, and distortion under load

Advanced Manufacturing Process:

The AeroDM caliper body is manufactured using Wilwood's stress-flow forging process, which realigns the aluminum's internal grain structure to flow within the contour of the caliper body. Unlike traditional machined billet calipers, this process eliminates internal stresses and grain structure interruptions, resulting in superior clamping efficiency and exceptional durability under extreme braking conditions.

Ideal for trucks and heavy-duty vehicles requiring professional-grade braking performance with the reliability of race-proven engineering.
