TEN Factory TFR1310-4158 JL Rear 1310 Solid Chromoly CV Driveshaft 4-Door Dana 44 M220

The TEN Factory TFR1310-4158 is a heavy-duty rear 1310 solid CV driveshaft engineered specifically for the Jeep Wrangler JL 4-Door equipped with the Dana 44 M220 rear axle. Designed for the JL Sahara and Sport variants, this single-piece driveshaft is built to handle up to 37-inch tires and up to 4.5 inches of suspension lift, delivering superior strength and smooth power transfer for lifted Jeeps both on and off-road.

Constructed from 4140 chromoly steel 2.5" x .095" wall D.O.M. tubing, this shaft offers twice the strength of factory driveshafts and outperforms many aftermarket competitors. The 1310-series double cardan CV joint design eliminates binding at extreme angles, while the shaft is electronically balanced to the highest tolerances for a vibration-free ride under load.

Key Features:

• 4140 chromoly steel 2.5" x .095" wall D.O.M. tubing — significantly stronger than OEM
• 1310-series solid double cardan CV joint for smooth articulation at extreme angles
• Built exclusively with premium Spicer and Neapco components throughout
• Solid, non-greasable 1310 U-joints for maximum durability and reduced maintenance
• Electronically balanced for a smooth, vibration-free driving experience

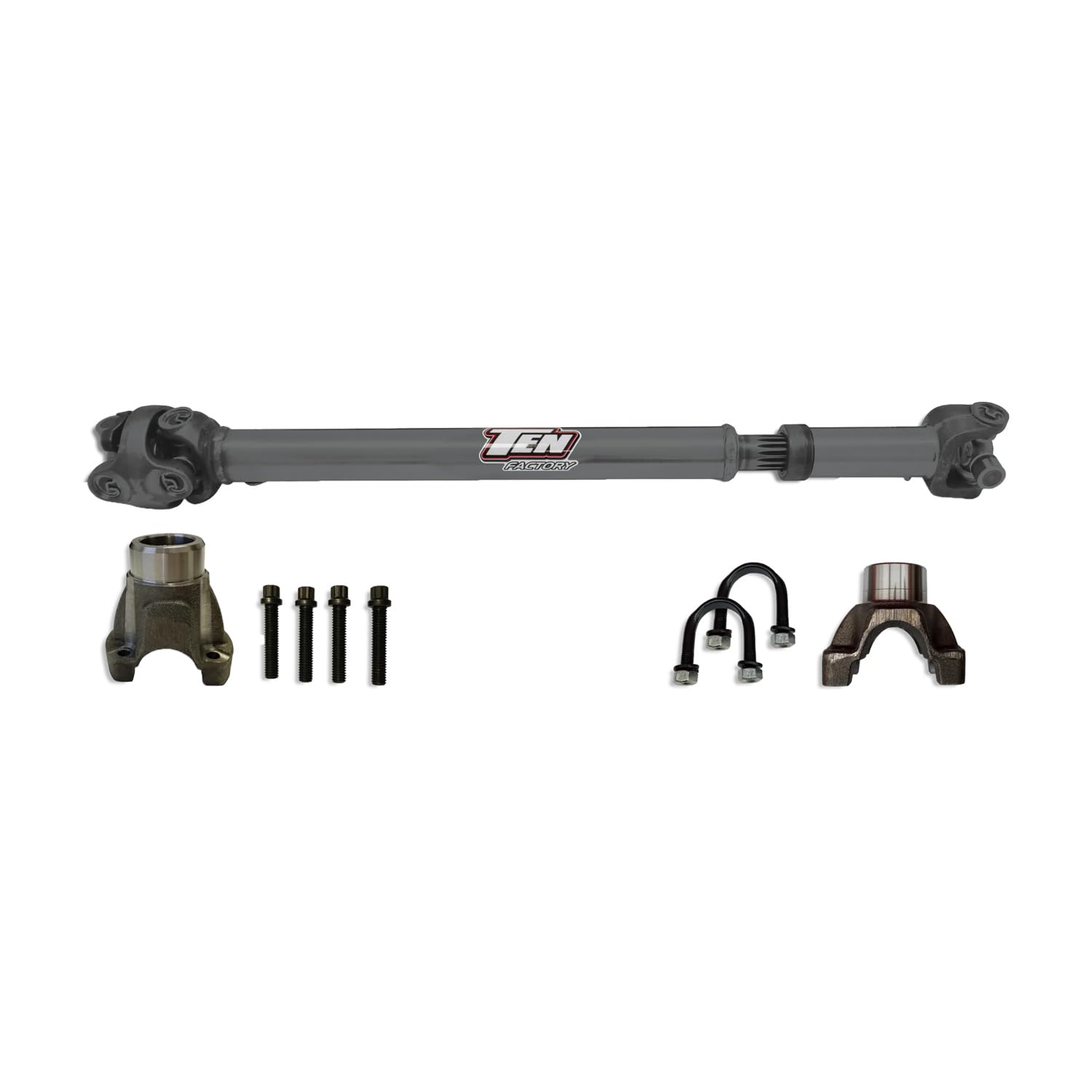

• Comes fully assembled — ready to bolt in with no fabrication required
• Includes American-made 1310 transfer case output shaft yoke and forged JL Sport pinion yoke
• Includes heavy-duty 1310 U-bolts, Grade 10 CV bolts (small-head for easier installation), and Loctite
• Backed by TEN Factory's industry-leading 10-year warranty

The TFR1310-4158 arrives fully assembled and ready for installation, complete with all necessary hardware. It is designed for JL Sahara and Sport trim levels only (not Rubicon). This driveshaft is the ideal upgrade for Wrangler JL owners running a lift kit and larger tires who demand a stronger, more reliable drivetrain solution.
