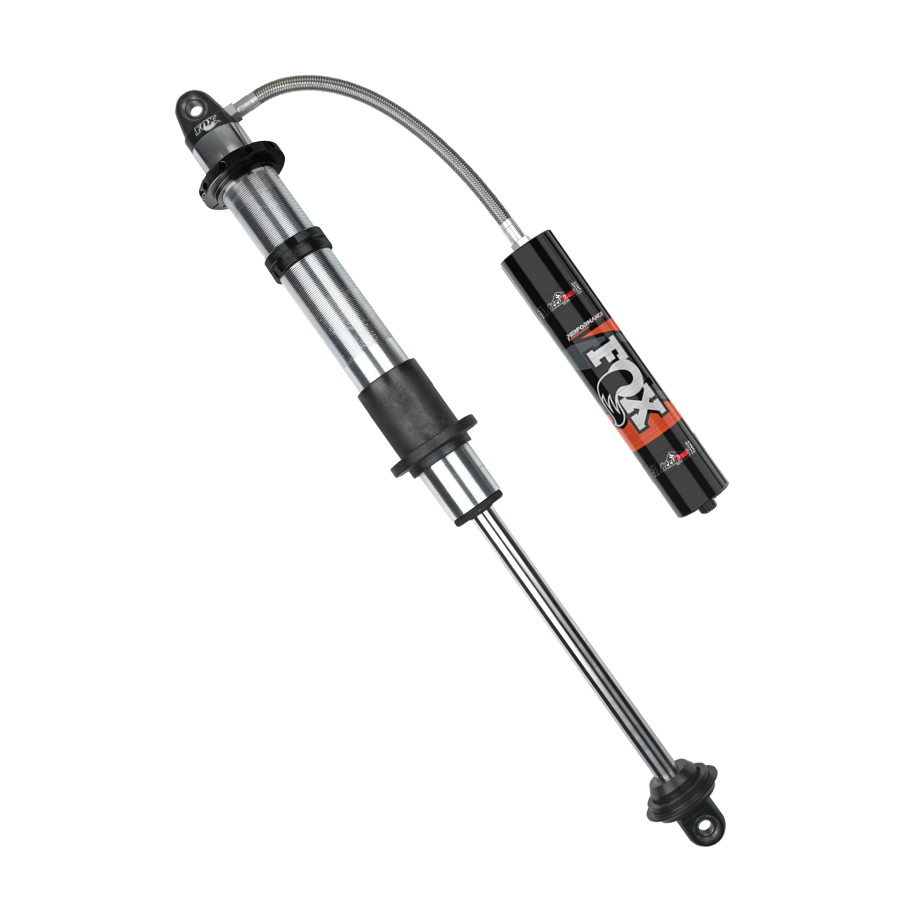

Fox Racing Shocks 981-20-120 Performance Elite 2.0 Coil-Over Remote Shock 10in Travel 7/8in Shaft

The Fox Racing Shocks 981-20-120 is a Performance Elite Series 2.0" coil-over remote reservoir shock featuring 10 inches of travel and a heavy-duty 7/8" diameter piston rod. Engineered with race-proven materials and construction, this coil-over shock is designed to deliver superior damping performance for serious off-road builds, long-travel suspensions, and demanding trail use.

The oversized 7/8" shaft provides significantly greater resistance to side loads generated by coil springs compared to a standard 5/8" shaft, reducing flex and extending service life. The piston rod is constructed from 17-4 H900 stainless steel, offering exceptional strength and corrosion resistance. High-temp Viton seals and urethane wipers are used throughout to maintain consistent performance under extreme conditions.

The remote reservoir design delivers three key advantages over emulsion-style shocks: improved heat dissipation, enhanced ride quality, and greater long-term durability. The additional oil volume in the reservoir increases heat capacity and accelerates heat loss, allowing harder and longer off-road use without shock fade. The separation of oil and gas also provides more consistent damping throughout the stroke.

Key Features:

• 2.0" body diameter with 10" of wheel travel
• 7/8" diameter 17-4 H900 stainless steel piston rod
• Remote reservoir with hose for superior heat management
• Aluminum internal floating piston (IFP)
• High-flow powder metal piston for race-grade damping
• High-temp Viton main seals and urethane wipers
• Premium shock oil rated to 400°F
• Adjustable preload with dual-rate spring crossover ring compatibility
• Fully rebuildable and serviceable
• Custom valving options available
• Zinc plated finish for corrosion resistance

The Fox 981-20-120 is sold as a bare shock body — coil springs are sold separately. As a fully rebuildable unit, it can be revalved and serviced through authorized Fox service centers to maintain peak performance over the long term.
