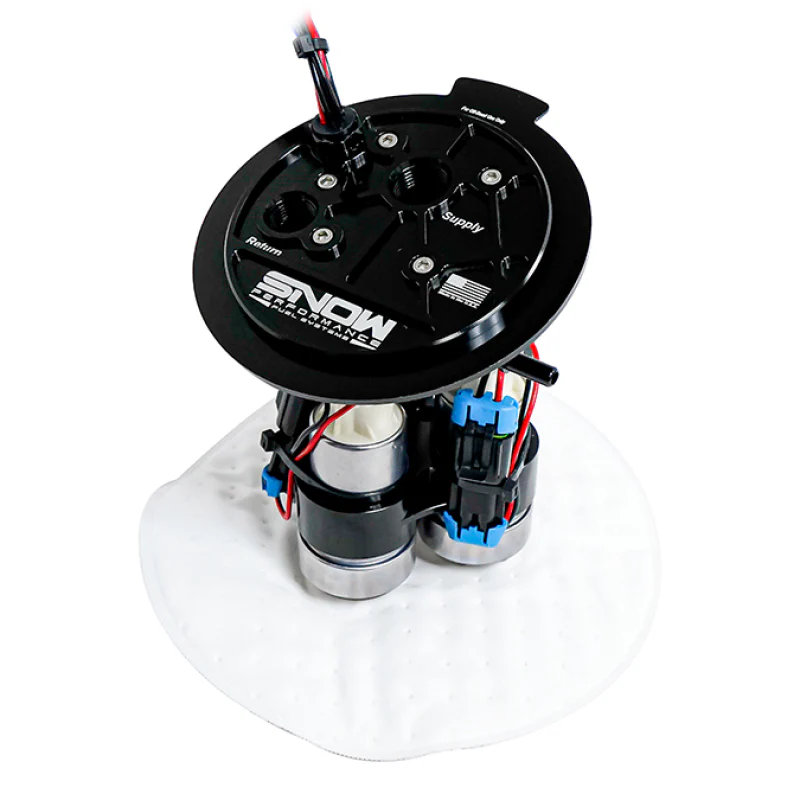

Snow Performance SNF-52410H High Output Triple Pump Fuel Hat for Dodge Charger Challenger 300C Magnum

The Snow Performance SNF-52410H High Output Fuel Hat is a precision-engineered triple pump fuel system upgrade designed specifically for 2005+ Dodge LX/LD platform vehicles including the Charger, Challenger, 300C, and Magnum. This advanced fuel delivery system features a CNC-machined billet aluminum manifold with internal passages that eliminate the need for unreliable T-fittings, hose clamps, and deteriorating rubber lines common in multi-pump setups.

Key Features:

• Triple pump configuration: One 274 lph (450lph) pump and two 285 lph (470lph) genuine TI Automotive (Walbro) fuel pumps
• Capable of supporting 1500+ rwhp on E85 and up to 2000 rwhp on gasoline
• 10-12% lower current draw compared to race-spec triple pump configurations
• CNC-machined from 6061 billet aluminum with black anodized finish for maximum corrosion resistance
• Viton chemical-resistant O-rings ensure leak-free performance
• Designed for return-style fuel system installations only
• Compatible with gasoline, ethanol, E85, and gasoline/ethanol blends (NOT compatible with methanol)
• Direct bolt-on fitment for factory fuel tank replacement
• Unified 10-micron pre-filter feeds all pumps, preventing fuel starvation during performance driving

This streetable configuration allows you to operate on the smaller pump during normal driving for reduced amp draw and heat generation, while the larger pumps activate under boost conditions to support high-horsepower demands. Boost-activated control can be achieved using Snow Performance Boost Activated Pressure Switch (SNO-81014) and Multi-Pump Relay Module (SNF-20003), sold separately. Engineered, machined, and assembled in the USA.
