RADIUM Engineering 20-1186-FL Dual Catch Can Kit for Corvette with Fluid Lock - 2015-2019 Z06

The RADIUM Engineering Dual Catch Can Kit draws out oil and water condensation from crankcase gasses that would otherwise be drawn into the intake manifold, preventing oil buildup in the intake, intercooler system walls, throttle body, and intake manifold. This comprehensive kit includes both PCV (Positive Crankcase Ventilation) and CCV (Crankcase Vent) catch cans for complete engine protection on 2015-2019 Corvette C7 Z06 models.

Revolutionary Fluid Lock Technology:

RADIUM created the Fluid Lock® Catch Can which contains a patented mechanism that prevents the reservoir from overfilling and traps the collected fluids until it is emptied. This resolves an inherent problem with typical catch cans when not serviced regularly—the fluid contaminants will eventually leave the reservoir pouring into the air intake system causing poor engine performance.

Key Features:

• Dual catch can system for maximum protection (PCV and CCV)
• Patented Fluid Lock technology prevents overfilling
• 7 fluid ounce capacity per catch can
• Baffled design with integrated condenser and dipstick
• Large 10AN ORB ports for maximum flow
• 4AN ORB drain port for easy servicing
• 2-step oil separation baffling system
• O-ring sealed dipstick for monitoring fluid levels
• Anodized aluminum mounting brackets
• Anodized aluminum baffled oil cap included
• Anodized aluminum PCV valve included
• SAE quick connect fittings for simplified installation
• Stainless steel mounting hardware
• Compatible with dry sump LT1 engines

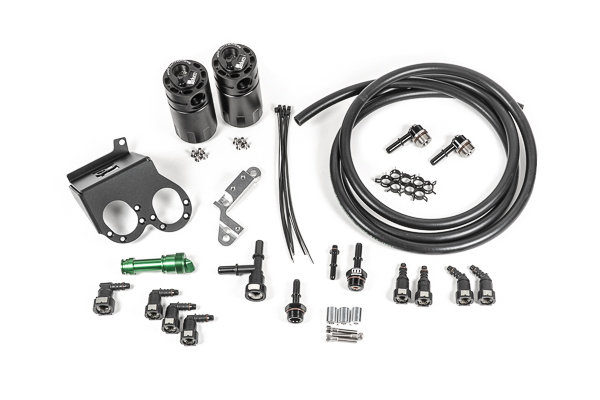

Complete Installation Kit:

This kit includes everything needed for a professional installation, including mounting brackets, hoses, spring clamps, fittings, and all necessary hardware. The catch can mounting bracket secures to the right hood latch location. No permanent vehicle modifications are required.

Performance Benefits:

• Effectively raises octane and increases engine performance from cleaner inlet air
• Prevents carbon buildup on intake valves and manifold
• Reduces hydrocarbon emissions
• Prevents unwanted oil vapors from entering cabin
• Protects intercooler efficiency on supercharged applications
• Early detection of engine issues through fluid collection monitoring

Designed specifically for 2015-2019 Chevrolet Corvette Z06 models with the LT1 engine. Also compatible with 2017-2019 Corvette Grand Sport, Stingray, and 2019 ZR1 models equipped with dry sump systems.
