CSF 8285B Toyota GR Corolla High-Performance Stepped Core Intercooler - Black

Manufacturer

Part Number

8285B
Black Friday Price

$899.00

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

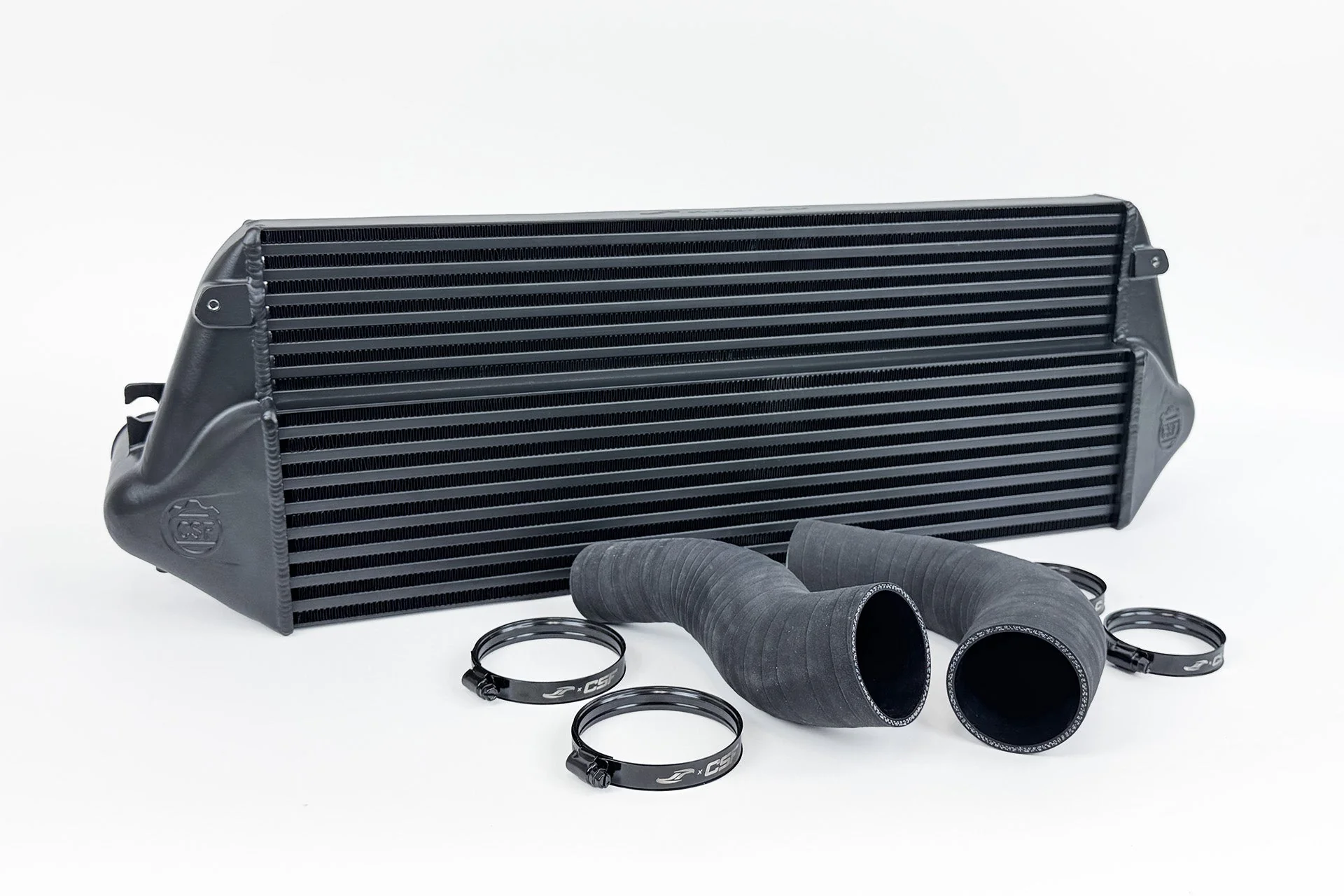

The CSF 8285B is a co-developed high-performance intercooler system for the Toyota GR Corolla, engineered in collaboration with Jackson Racing. Designed to overcome the heat soak limitations of the factory unit, this drop-in intercooler delivers significantly improved charge air cooling for street and track use — in a stealthy black finish.

The factory OEM intercooler, while reasonably capable, suffers from rapid heat soak that can cause post-cooler charge air temps to climb by 60°F or more after just a few pulls. The CSF x Jackson Racing solution addresses this directly with a unique stepped core architecture that provides 45% more core volume and 73% greater surface area than the OEM cooler — all within the factory mounting location, with no bumper or crash bar modifications required.

Key Features:

  • High-Performance Tube & Fin Stepped Core — maximizes surface area contact and internal airflow volume while remaining lighter than comparable bar-and-plate designs
  • Largest Drop-in Fit Intercooler Available — engineered to utilize every available inch of space without modifying the bumper or core supports
  • 3D Scanning & Rapid Prototype Development — ensures precise fitment and optimal surface area utilization for the GR Corolla chassis
  • 100% TIG-Welded Cast Aluminum End Tanks — significantly stronger than OEM crimped plastic tanks, built to withstand hard driving and high boost
  • Includes Motorsport-Grade Hoses & Clamps — 5-ply silicone hoses step up from the factory 1.85 in (47mm) diameter to a larger 2.5 in (63.5mm) inlet/outlet for improved airflow; clamps feature a bead lock system for high-boost applications
  • True Plug-and-Play Installation — mounts in the factory location; OEM air ducting requires minor trimming to channel air into the upper stepped core
  • Individually Leak and Pressure Tested — every unit is tested before shipping to guarantee reliability
  • Black Finish (#8285B) — provides a stealthy appearance behind the grille; also available in Silver (#8285)
  • 2-Year Limited Warranty — backed by CSF's manufacturer warranty
  • Independently Tested by Moto IQ — real-world dyno testing demonstrated charge air temperature reductions exceeding 240°F, with heat soak resistance lasting twice as long as the factory intercooler

In independent testing conducted at World Motorsports in Torrance, CA, the CSF x Jackson Racing intercooler reduced charge air temperatures by more than 240°F — approximately 90°F more than the OEM unit — resulting in intake air temperatures just a few degrees above ambient. The intercooler is confirmed to fit the 2023+ Toyota GR Corolla. Also compatible with the 2020+ GR Yaris with modifications (contact CSF for details).
