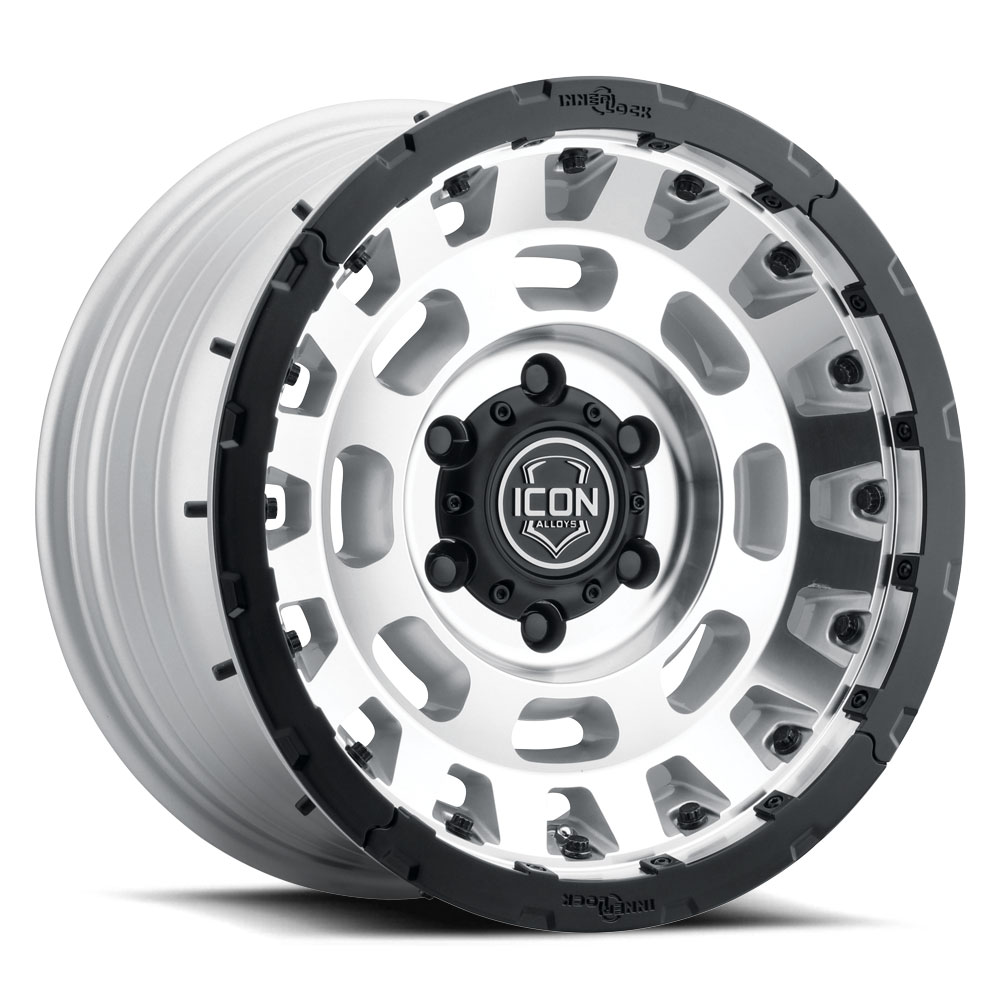

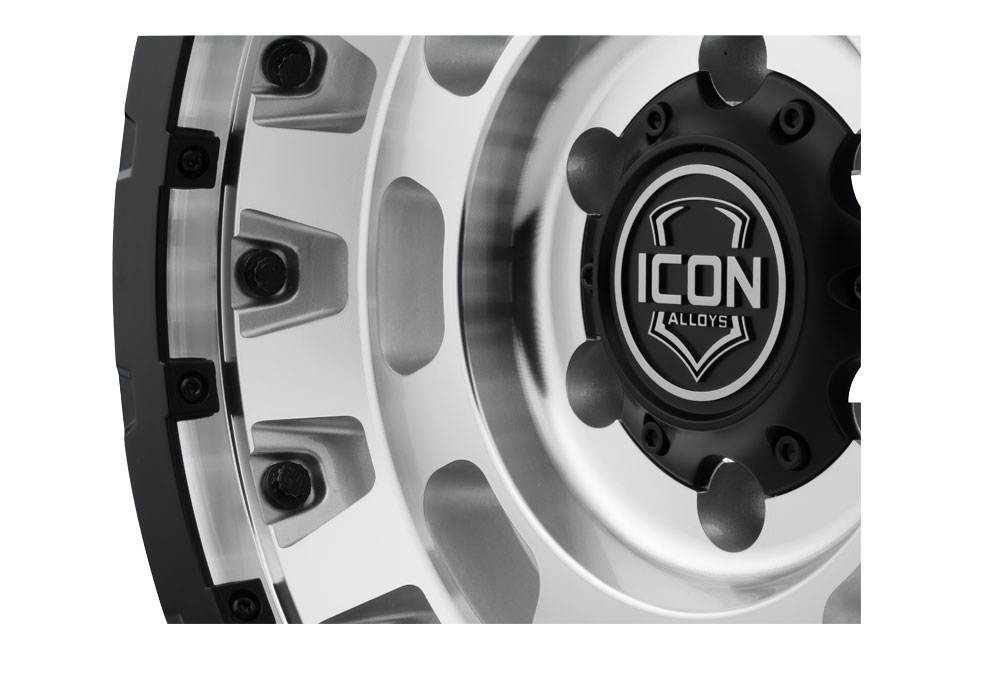

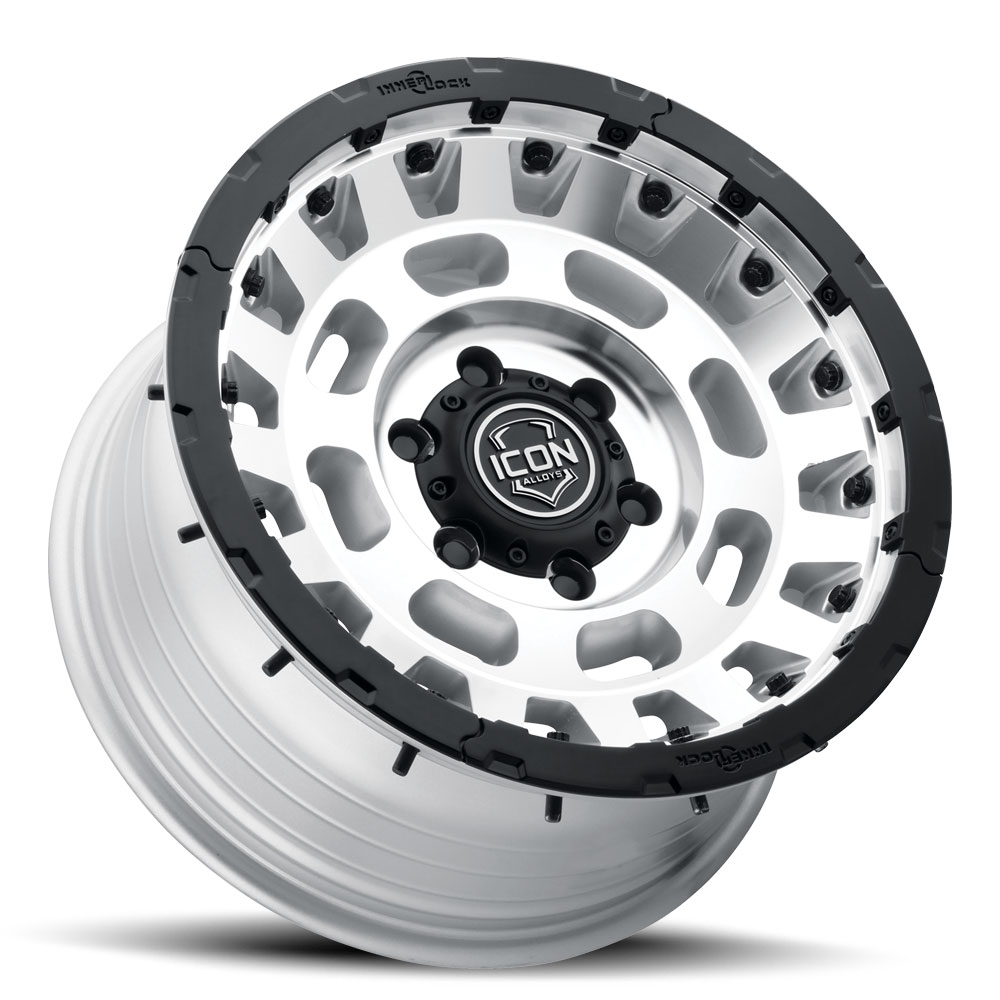

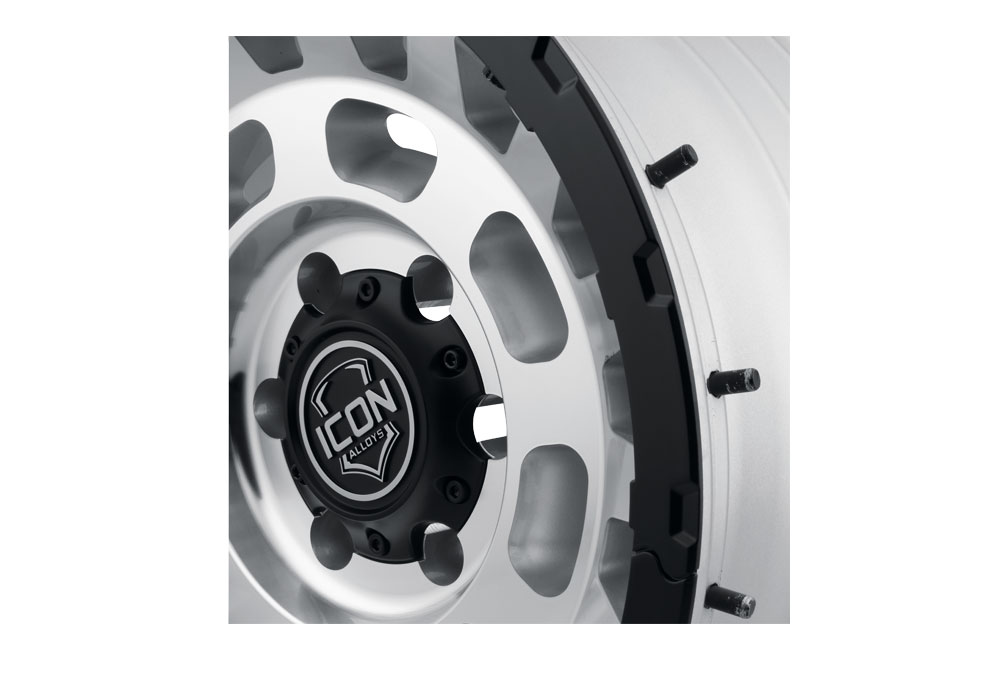

The ICON Alloys Hammer Pro wheel combines innovative bead retention technology with rugged off-road styling in a DOT-compliant package. Featuring a distinctive slot and spoke design in a silver machined finish, this 17x8.5 inch wheel is engineered for serious off-road enthusiasts who demand both performance and street legality.
Patented InnerLock Technology:

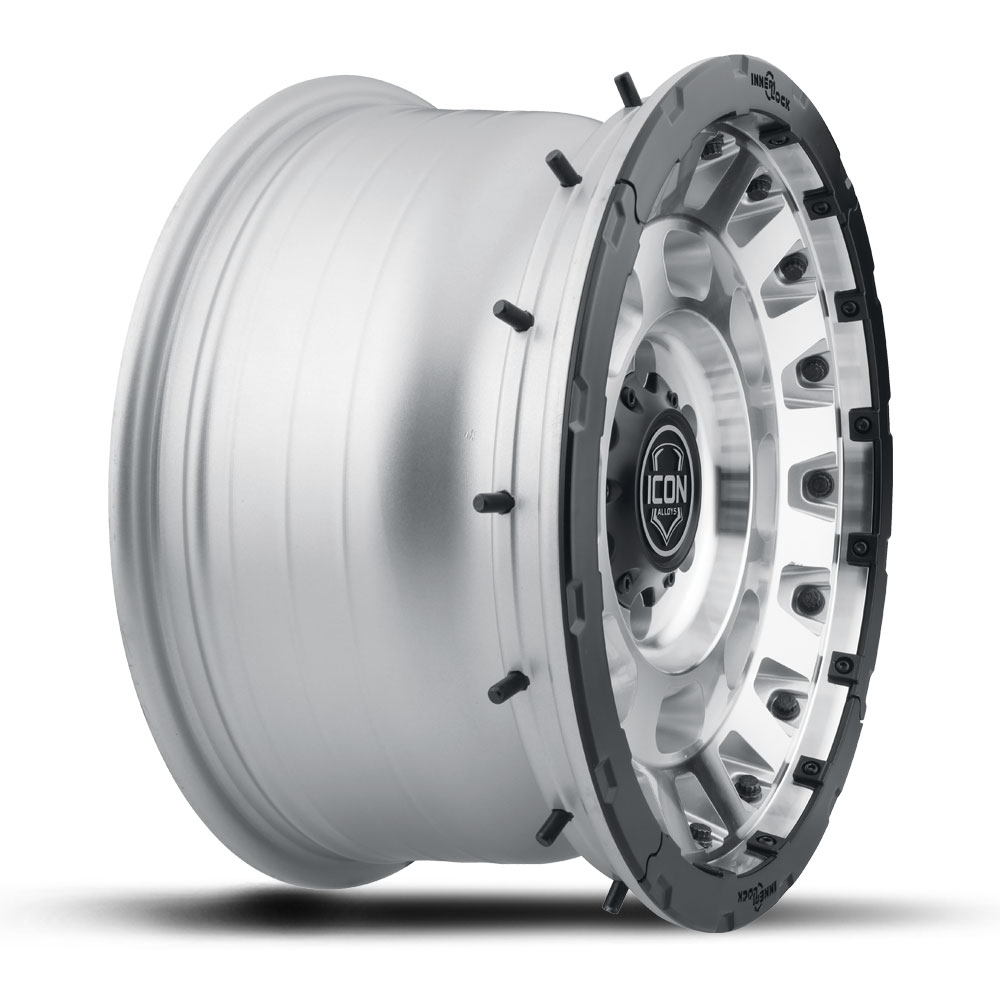

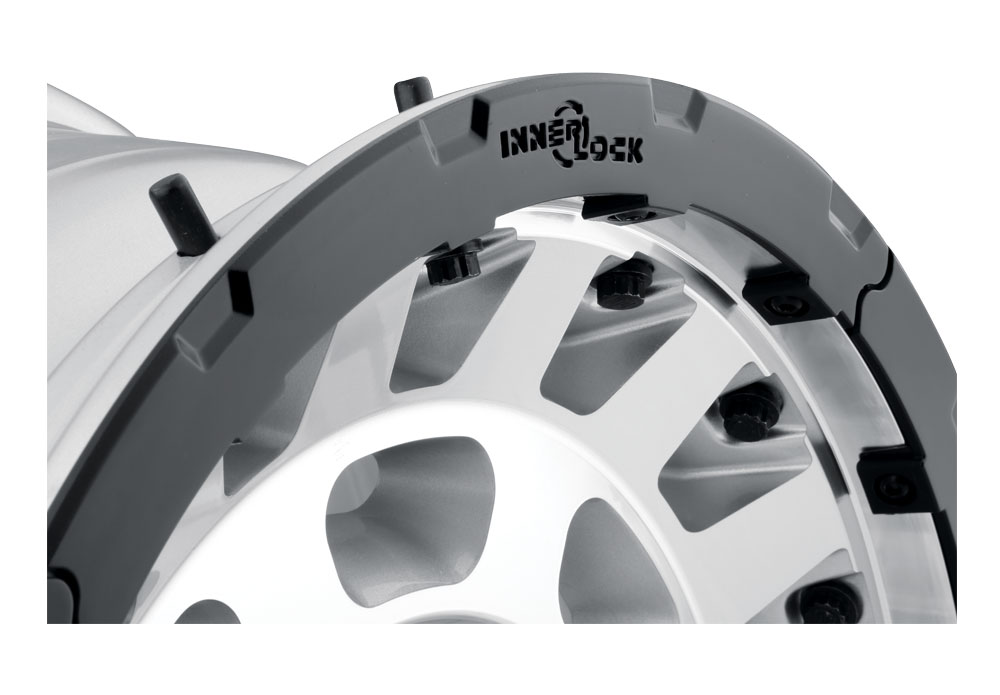

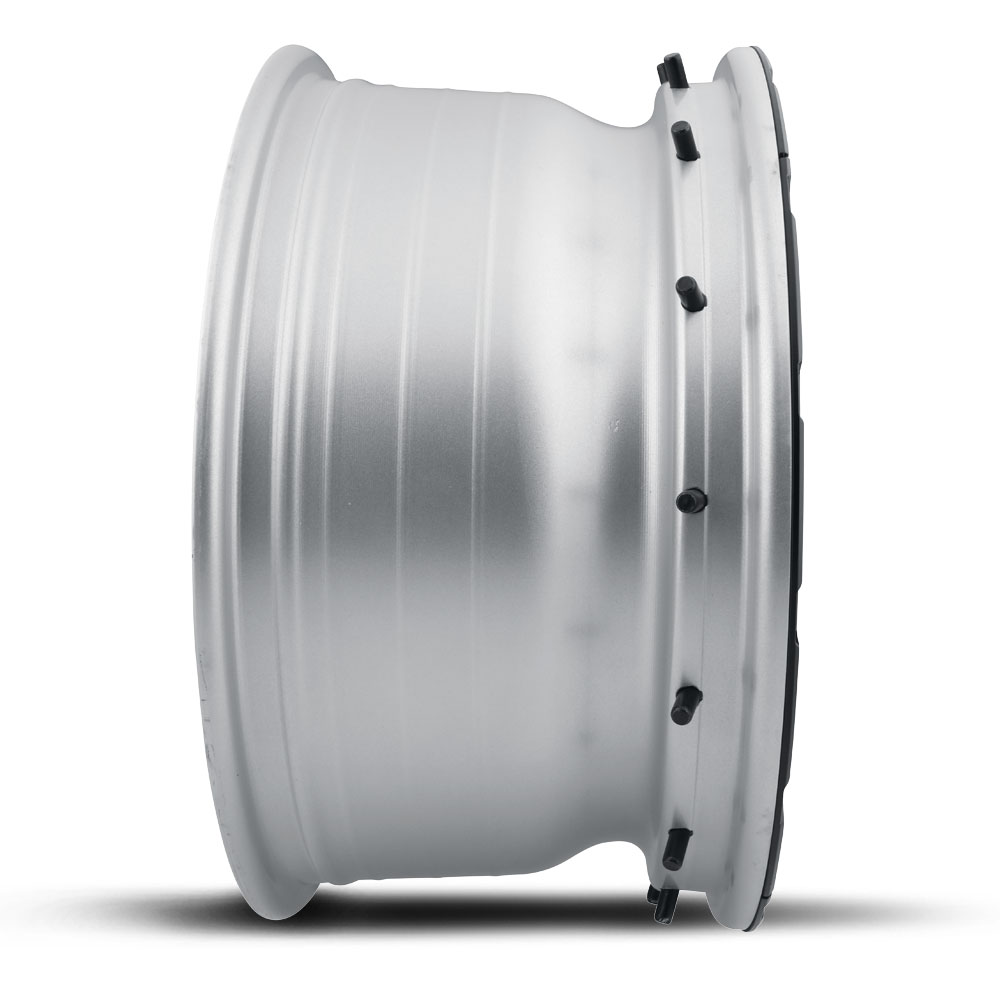

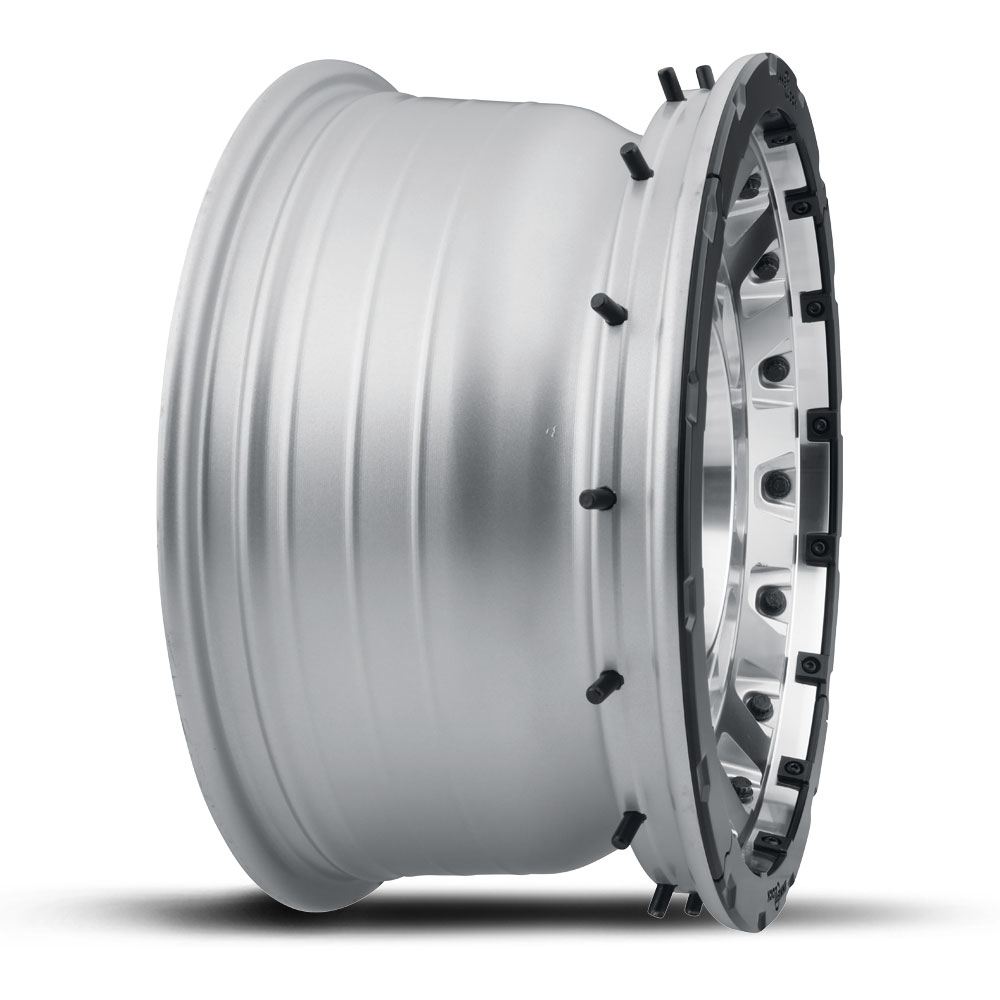

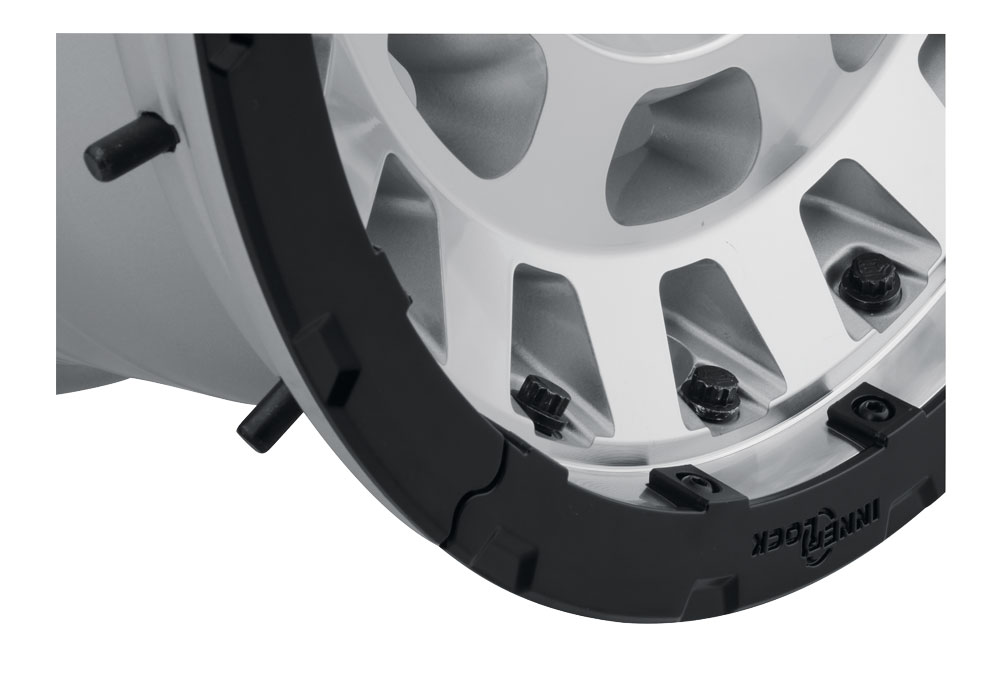

The Hammer Pro features ICON's patented InnerLock technology (U.S. Patent No. 11,090,976), which uses high-strength alloy bead retention pins to physically prevent tire de-beading during extreme side loads and aggressive off-road driving. Unlike traditional beadlock wheels that require constant maintenance and are illegal for street use, the InnerLock system is fully DOT compliant while delivering superior bead retention. Lab testing exceeded 7,600 lbs of load without tire de-beading, validating the system's effectiveness under extreme conditions.
HALO Wheel Armor Protection:

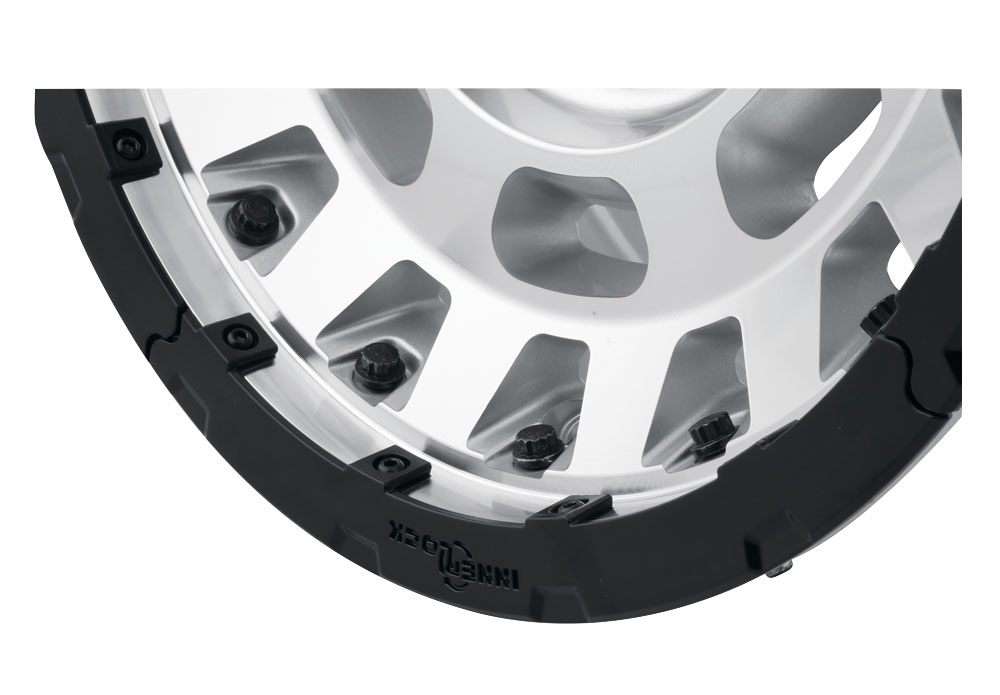

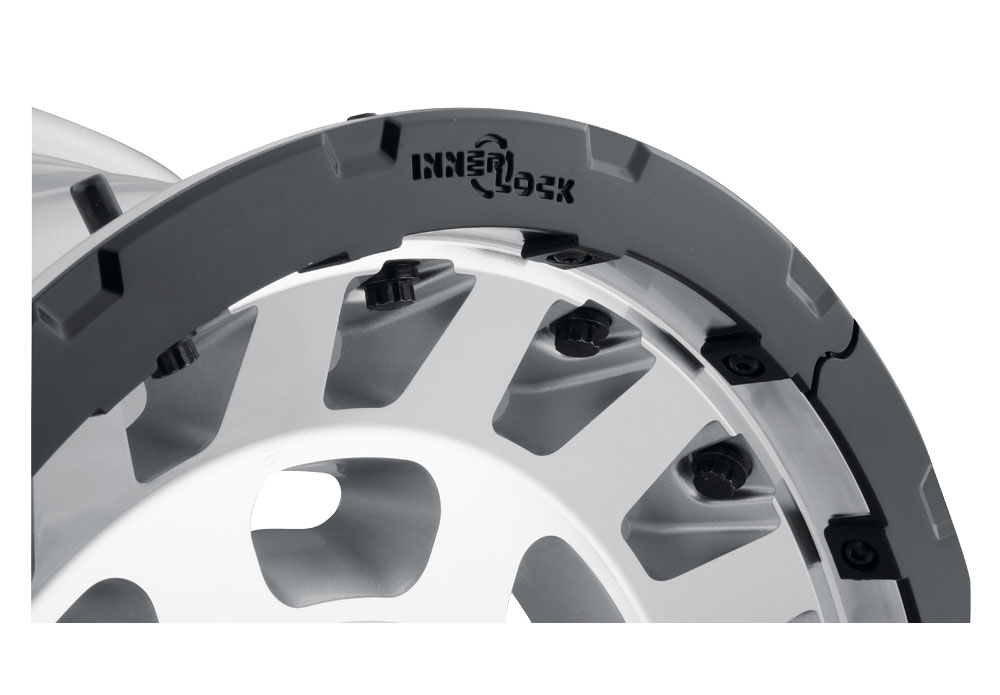

Each wheel includes removable, replaceable high-grade aluminum HALO Wheel Armor that protects against trail damage. The armor is segmented into 90-degree sections, allowing individual damaged sections to be replaced without replacing the entire ring. The HALO system can be customized with different finishes to match your personal style.
Key Features:
- Size: 17 x 8.5 inches
- Bolt pattern: 6 x 5.5 (6 x 139.7mm)
- Offset: 25mm
- Backspacing: 5.75 inches
- Center bore: Compatible with common 6-lug applications
- Load rating: 3,650 lbs per wheel
- Finish: Silver machined
- Removable and replaceable bead retention pins
- SAE J1926 O-ring sealed pins with thermochemical corrosion treatment
- Engineered for maximum brake caliper clearance
- Optimized backspace and offset for reduced scrub radius
Important Notes:
May not be compatible with all TPMS sensors with rigid valve stems. Flexible rubber valve stems are recommended for InnerLock pin clearance. Professional tire mounting and balancing is recommended prior to installation.
The ICON Alloys Hammer Pro delivers the ultimate blend of on-road safety and off-road capability, making it ideal for trucks, Jeeps, and SUVs that see duty both on the pavement and on the trail.
