RADIUM Engineering 20-1080 Fuel Pump Hanger 2016+ Honda Civic for AEM 50-1220 DW440

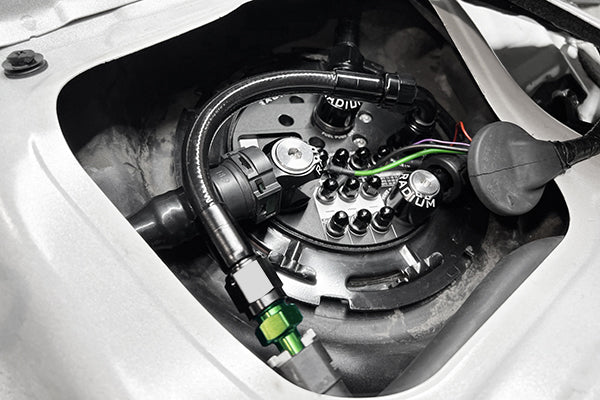

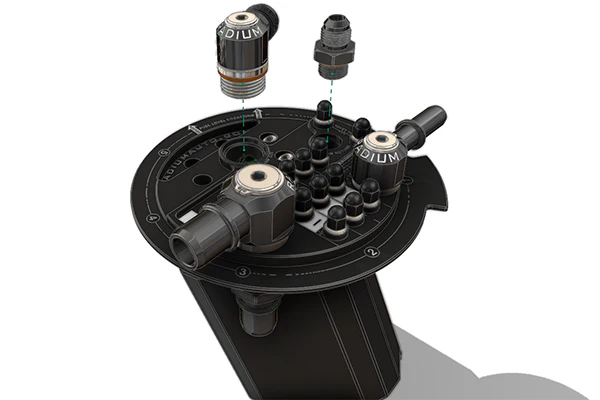

The RADIUM Engineering 20-1080 fuel pump hanger is a complete direct replacement for the factory fuel pump assembly in 2016+ Honda Civic models, including the 2017-2021 Civic Type-R FK8. This advanced hanger system is designed to accommodate 1, 2, or 3 aftermarket fuel pumps, making it ideal for high-performance builds requiring increased fuel delivery. Specifically engineered for use with AEM 50-1220 and Deatschwerks DW440 brushless fuel pumps.

Key Features:

• Direct bolt-in replacement requiring no cutting or modification to the fuel tank or vehicle
• Integrated anodized aluminum fuel collector box with three 1-way fill valves (355 LPH each) for fuel starvation protection during aggressive driving
• 10AN ORB (7/8"-14) female outlet port with included low-profile 8AN male fitting for aftermarket fuel lines
• 6AN ORB (9/16"-18) female return inlet with included 6AN male adapter
• Reuses OEM fuel level sensor, vent, and ORVR emission ports for seamless integration
• Custom stainless steel electrical studs with anti-rotation design and hermetically sealed connections
• High-quality ETFE insulated in-tank wiring resistant to all standard and exotic fuels
• Non-conductive anodized aluminum acorn nuts included to prevent short circuiting

The integrated collector system ensures pump inlets maintain access to fuel at all times through multiple fuel sources, preventing starvation during high-G cornering and acceleration. All fittings are precision-machined for low-clearance installation. Note: 11th generation Civics use a compatible fuel tank, excluding FL5 Type-R.
