ARB 2223K Old Man Emu BP-51 Suspension Kit 2024-2025 Toyota Land Cruiser 250

Manufacturer

Part Number

2223K
Black Friday Price

$2,030.85

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ARB 2223K Old Man Emu BP-51 Suspension Kit is engineered specifically for the 2024-2025 Toyota Land Cruiser 250, delivering professional-grade performance for both on-road comfort and extreme off-road capability. This complete suspension system features advanced internal bypass technology with remote reservoir shocks that were developed and tested under the harshest conditions in Australia.

Key Features:

  • Front lift up to 3 inches with support for 0-330 lbs of added weight
  • Complete kit includes 2 front BP-51 coilovers, 2 rear BP-51 shocks, and shock fitting hardware
  • 51mm bore diameter shock absorbers with 6061 T6 aluminum construction and Type III hard anodized finish
  • 10-level independent compression and rebound adjustment for custom tuning
  • Position-sensitive bypass damping technology for comfort at ride height and control at end zones
  • Remote reservoir design for increased oil capacity and superior heat dissipation
  • Bolt-on installation using factory mounting locations—no vehicle modifications required
  • Rebuildable and re-valvable by qualified suspension technicians

Advanced Technology:

Unlike conventional adjustable shocks that only adjust compression, the BP-51 system allows independent on-vehicle adjustment of both compression and rebound damping. The internal bypass design routes hydraulic fluid through passages within the shock body rather than external tubes, allowing these big-bore performance shocks to fit within the tight confines of modern coil-over suspension systems. This racing-proven technology provides exceptional ride comfort around town while delivering significant end-zone damping for superior chassis control on challenging terrain.

What's Included:

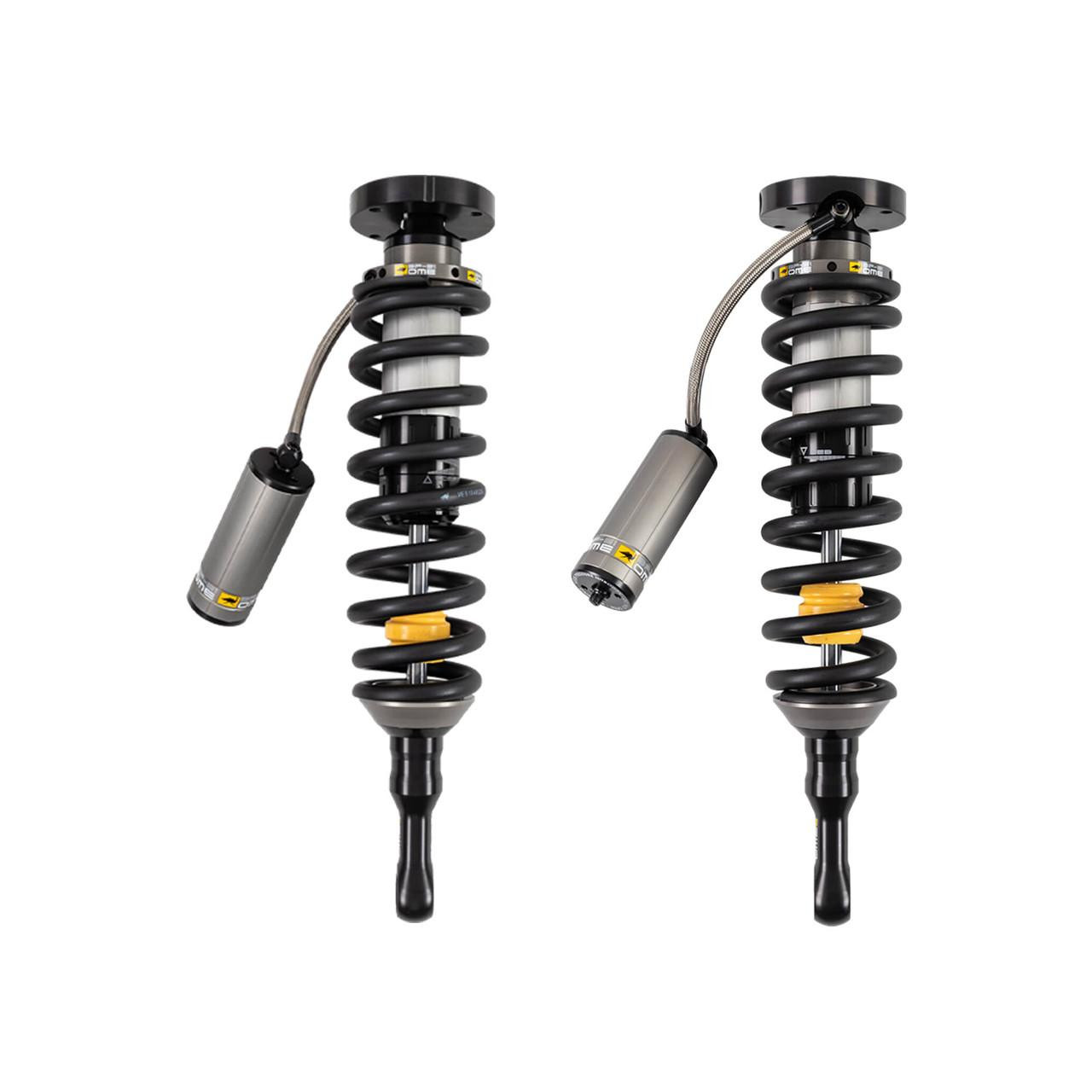

  • Two front BP-51 coilover assemblies with adjustable spring preload
  • Two rear BP-51 remote reservoir shock absorbers
  • Front and rear shock fitting hardware kit

Backed by Old Man Emu's 3-year, 37,000-mile limited warranty, this suspension system is designed for 4WD vehicles and provides the adjustability to handle varying loads, terrain, and driving conditions with confidence.

Products specifications

Fits

2024-2025 Toyota Land Cruiser
