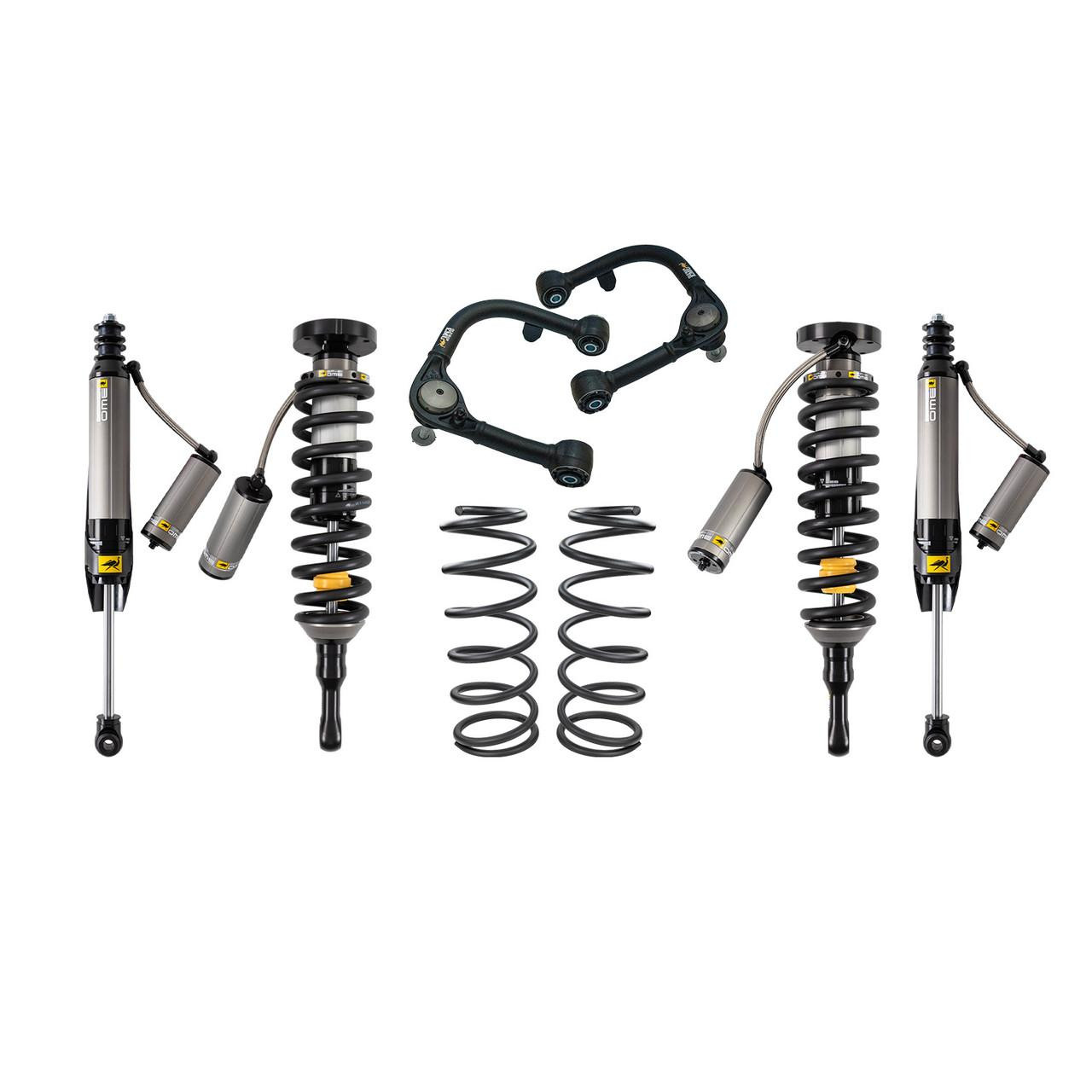

The ARB 2221K is a complete Old Man Emu BP-51 suspension lift kit engineered specifically for the 2024-2025 Toyota Land Cruiser 250. This premium performance system delivers approximately 3 inches of front lift and 2 inches of rear lift, providing enhanced off-road capability while maintaining exceptional on-road comfort. The kit includes upgraded upper control arms (UCA) to optimize suspension geometry at lifted heights.
BP-51 Bypass Technology:
At the heart of this system are Old Man Emu's legendary BP-51 bypass shock absorbers, featuring internal bypass technology derived from off-road racing. Unlike conventional shocks, the BP-51 uses position-sensitive damping that provides comfort at ride height while progressively increasing damping forces as the shock approaches full compression or extension. This design delivers superior control over harsh terrain without sacrificing everyday ride quality.
Key Features:
- 51mm (2-inch) bore shock absorbers with 6061 aluminum hard-anodized bodies for superior heat dissipation
- Remote reservoir design with Dash 6 high-temperature Teflon hoses for increased oil volume and cooler operating temperatures
- Independent external compression and rebound adjustment on all four corners for personalized tuning
- Adjustable spring preload on front coilovers to accommodate various load configurations
- High-quality X5K grade steel coil springs matched specifically to the BP-51 dampers
- Upgraded upper control arms included to correct geometry and maintain proper alignment
- Vehicle-specific tuning for 2024-2025 Land Cruiser 250 applications
- Bolt-in installation with no modifications required
- Large Teflon-lined spherical bearings for smooth operation and durability
Adjustability:
The BP-51 system offers unmatched customization capability. Front coilovers feature adjustable preload collars to fine-tune ride height and accommodate added weight from bumpers, winches, or roof racks. Both compression and rebound damping can be adjusted independently on all four shocks, allowing you to tailor the suspension to your specific driving conditions, vehicle load, and personal preferences.
Load Ratings:
This kit is configured with front springs rated for 0-330 lbs of additional weight and rear springs rated for 440 lbs, making it ideal for moderately equipped Land Cruisers with accessories like roof racks, skid plates, and light armor. The adjustable nature of the BP-51 shocks allows fine-tuning to accommodate varying loads.
Quality and Warranty:
Old Man Emu BP-51 components are designed, manufactured, and tested entirely in-house by ARB using state-of-the-art equipment. Extensive dyno testing, real-world evaluation, and destructive testing ensure these components meet ARB's exacting standards. Old Man Emu suspension products are backed by a 36-month or 37,000-mile limited warranty.
This complete suspension system transforms the 2024-2025 Land Cruiser 250 into a capable off-road platform while retaining the refined on-road manners Toyota is known for. Whether tackling technical trails or cruising the highway, the ARB 2221K delivers the perfect balance of comfort and control.
