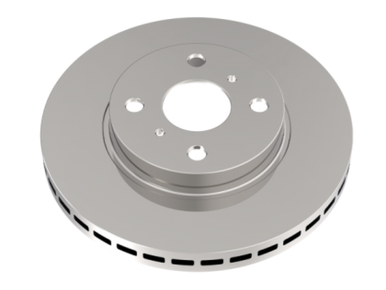

DBA DBA2464E En-Shield Street Series Brake Rotor - 280mm Front

The DBA DBA2464E is a Street Series direct replacement brake rotor featuring DBA's advanced En-Shield protective coating technology. This 280mm front rotor is manufactured from DBA's proprietary XG-150 high carbon cast iron alloy, engineered for superior thermal stability and resistance to warping under high heat conditions.

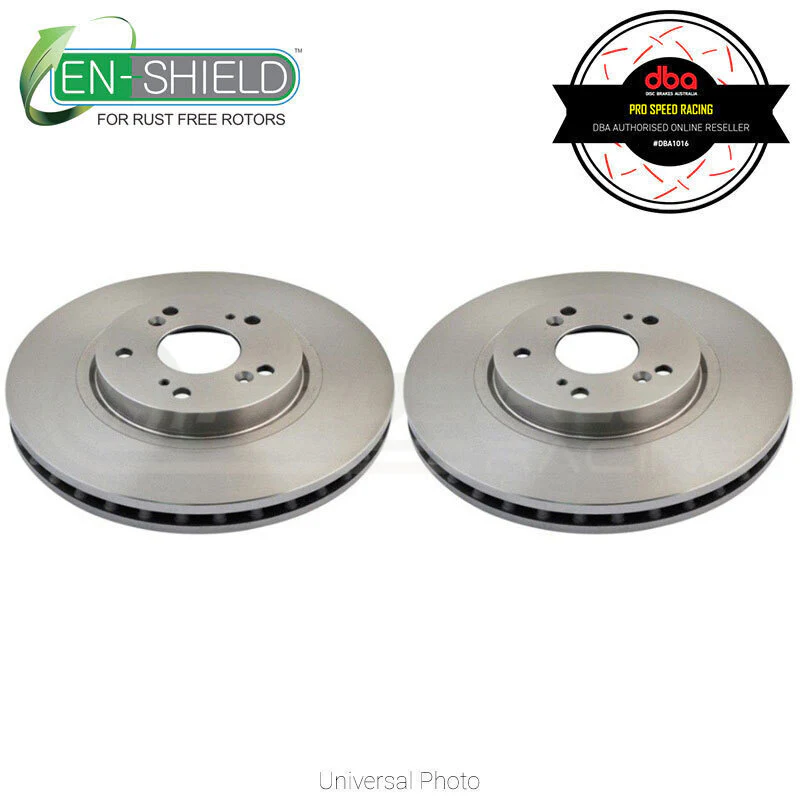

En-Shield Protective Coating:

The En-Shield coating is a chromium-free, zinc-aluminum derived, water-based protective treatment that is baked onto the entire rotor surface. This environmentally safe coating provides exceptional corrosion protection, superior to traditional paints or conventional coatings, while ensuring no impurities contaminate the brake pad surface that could affect performance or service life. The coating is ready to install with no cleaning required, and it self-removes from friction surfaces during normal braking without affecting braking performance.

Key Features:

• Kangaroo Paw ventilation system with diamond and teardrop pillar design maximizes heat dissipation and minimizes brake fade
• CBN (Cubic Boron Nitride) machined friction surface for improved disc thickness variation and parallelism
• Manufactured to exceed OEM standards with tight tolerances for original equipment quality and fit
• XG-150 high carbon cast iron alloy construction for excellent thermal stability and strength
• Complete corrosion protection over entire rotor surface, ready to install without brake cleaner
• Designed for daily drivers, light commercial vehicles, and street SUV applications

Specifications:

• Diameter: 280mm (11.0 inches)
• Thickness: 26mm (1.02 inches)
• Height: 47.5mm (1.87 inches)
• Center Hole Diameter: 69mm
• Minimum Thickness: 22.4mm
• Wheel/Stud Holes: 5
• Position: Front
• Warranty: 12 months or 20,000 km

DBA is an Australian-owned manufacturer with over four decades of innovation and multiple AAAA Gold Manufacturer Awards. Each rotor is precision-engineered to deliver reliable, OE-level braking performance with enhanced corrosion resistance and improved heat management.
