TeraFlex 1449575 5-Inch Pro LCG Long Arm Suspension System No Shocks

(1997-2006 Jeep Wrangler; 1997-2006 Jeep TJ)

Manufacturer

Part Number

1449575
Black Friday Price

$4,588.99

Estimated ship date Tuesday, December 01

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The TeraFlex Pro LCG (Low Center-of-Gravity) Long Arm Suspension System is engineered for the hardcore off-road enthusiast who demands maximum rock crawling capability and high-speed trail performance without sacrificing on-road comfort and control. This comprehensive 5-inch lift kit delivers a complete suspension overhaul with all necessary hardware included — shocks sold separately.

Up front, the Pro LCG system expands on the stock 5-link suspension configuration with adjustable LCG Long Arms and Brackets. The front upper Pro LCG Long Arms are more than 9 inches longer than stock, dramatically improving suspension geometry, caster angle correction, and pinion angle tuning. Around back, the stock 5-link rear suspension and track bar are replaced by a fully adjustable triangulated Pro LCG 4-Link Long Arm Suspension with a Rear Axle Truss and Frame Brackets. The rear upper brackets feature adjustable anti-squat tunability for fine-tuned performance on and off the trail.

The included HD Adjustable Front Track Bar, High Steer Track Bar Bracket, and Drop Pitman Arm work together to improve steering response, center the front axle, optimize vehicle roll center, and reduce body roll. Adjustable LCG Long Arms balance front caster and pinion angles while optimizing rear pinion angle and anti-squat geometry. On 3–5-inch lifts, the LCG Long Arm Brackets reposition frame-end control arm mounting points to relax suspension link angles, reducing bushing stress during extreme droop and minimizing shock loads through the arms. The result is a system engineered for reduced noise, vibration, and harshness (NVH) — on road and off.

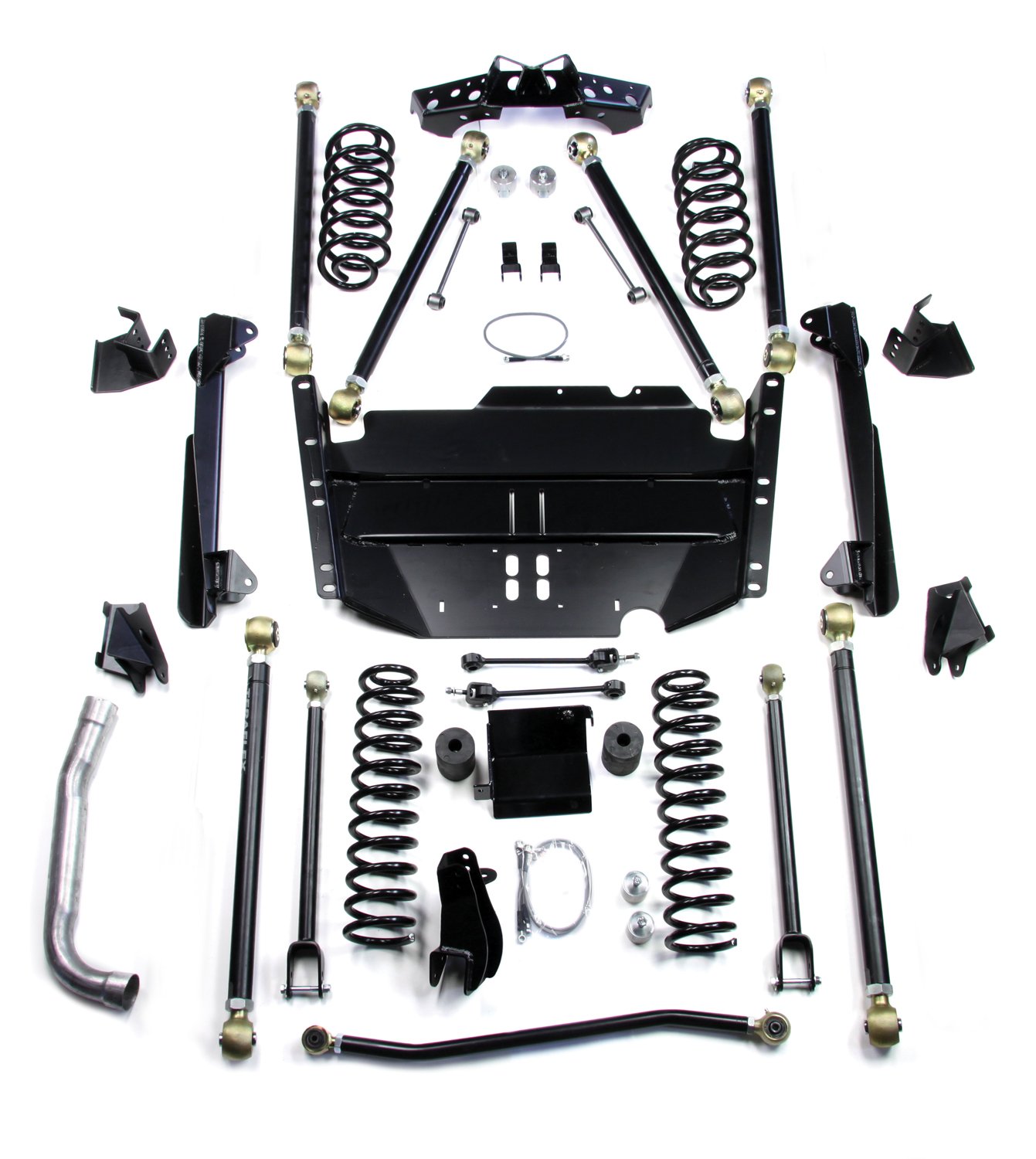

Kit Includes:

  • 5-Inch Lift Coil Spring Pair — Front (#1843502) & Rear (#1844502)
  • Pro LCG Long Arm & Bracket Upgrade Kit — Front Upper, 3–5-Inch Lift (#1443470)
  • LCG Long Arm & Bracket Upgrade Kit — Lower, 3–5-Inch Lift (#1447700)
  • Pro LCG 4-Link Long Arm & Bracket Upgrade Kit — Rear Upper, 3–5-Inch Lift (#1444870)
  • HD Adjustable Track Bar — Front, 3.5–6-Inch Lift (#1743070)
  • High Steer Track Bar Bracket Kit — Front Upper (#1743031)
  • Drop Pitman Arm — 3.5–6-Inch Lift (#4922133)
  • 2.25-Inch Bump Stop Extension Kit — Front Upper, LCG Lift (#1910204)
  • 1.75-Inch Bump Stop Strike Pad Kit w/ Spring Retainer — Rear Lower, LCG Lift (#1949011)
  • 10-Inch Front Sway Bar Quick Disconnect Kit — 3–6-Inch Lift (#1743090)
  • 10.5-Inch Sway Bar Link Kit — Rear, 2.5–5-Inch Lift (#1944011)
  • HD BellyUp Skid Plate Kit (#4648403)
  • HD Steering Box Skid Plate Kit (#4627400)
  • 2003–2006 TJ: 1-Inch Transfer Case Lowering Spacer Kit (#1900103)
  • 1997–2002 TJ: Shift Linkage Plate Kit (#1900001)
  • 2003–2006 TJ: Shift Linkage Plate Kit (#1900003)
  • 26-Inch Stainless-Steel Braided Brake Line Kit — Front & Rear (#4350400)
  • Exhaust Pipe Extension
  • Shock Extension Kit — Rear Lower (#1544790)
  • All necessary hardware

Specifications:

  • Lift Height: 5 inches
  • Maximum Tire Diameter: 37 inches
  • Shocks: Not included — compatible with Falcon Series 3.0 Piggyback or TeraFlex 9550 VSS Twin-Tube shocks

Important Installation Notes:

  • Requires cutting and removal of factory control arm bracketry
  • Requires cutting and welding
  • Professional wheel alignment required after installation
  • Requires exhaust modification with a custom cat-back exhaust
  • 2003–2006 TJ Rubicon models require an additional BellyUp Compressor Mount Bracket Kit

Products specifications

Fits

1997-2006 Jeep Wrangler; 1997-2006 Jeep TJ

Prop 65

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Country of Origin

China

Harmonized Tariff Code

8708.80

NAFTA

8708.80.7

Includes Shocks

No

Sold As

Each

UNIVERSAL

No

Max tire

37 Inch
